6640-00-359-9731
Laboratory Condenser
6640003599731 003599731 2640-350 C0MP0NENTPART0FG19390 DD-C-575 TY4 DD-C-575 07-744-5
A device, usually cylindrical in shape, composed of an internal tube surrounded by an outer jacket. The tube may be straight, coiled, repetitiously bulbous or indented and must have an inlet and outlet for the condensing vapors. The jacket must have an inlet and outlet, in the form of male side tubulations, for the regular flow of the coolant. Used for condensing vapors to a liquid state in refluxing, extracting and distilling operations. Excludes DISTILLING COLUMN, FRACTIONATING. View more Laboratory Condenser
May 2023
4
Marketplace 6640-00-359-9731
Request a Quotation from participating marketplace vendors
Related Documents 6640-00-359-9731 5+ Documents (More...)
DD-C-575 CONDENSER,LABORATORY 2 EA NS Request Quotation FedMall Updated Every 15 Minutes 6640-00-359-
9731 BUY NE FedMall Updated Every Day 6640-00-359-9731 RQST NE Updated Every Day 6640-00-359-9731 RQST
9141 Laboratory Condenser 6640002559141002559141 https//www.nsnlookup.com /fsg-66/fsc-6640/us 6640-00-359-9731
Laboratory Condenser 6640003599731 003599731 RQST NE Updated Every Day 6640-00-359-9731 RQST https
DD-C-575 TY1SZ2 A device, usually cylindrical in shape, composed of an internal tube surrounded by
DD-C-575 TY1SZ3 A device, usually cylindrical in shape, composed of an internal tube surrounded by
TY1SZ3 A device, usually cylindrical in shape, composed of an internal tube surrounded by DD-C-575
DD-C-575 TY1SZ2 A device, usually cylindrical in shape, composed of an internal tube surrounded by
TY1SZ3 A device, usually cylindrical in shape, composed of an internal tube surrounded by DD-C-575
DD-C-575 TY1SZ2 A device, usually cylindrical in shape, composed of an internal tube surrounded by
Restrictions 6640-00-359-9731
6640-00-359-9731 is a Laboratory Condenser that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.
Import and Export 6640-00-359-9731
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 6640-00-359-9731
- US Army (A910)
- Effective Date:
- 1 Mar 2007
- Former MOE Rule:
- A923
Approved Sources 6640-00-359-9731
- Part Number
- Manufacturer
- Status
- 2640-350
- Manufacturer
- 2D830 - Corning Incorporated (Active)
- Primary Buy
- Primary Buy
- C0MP0NENTPART0FG19390
- 21519 - Manostat Corp (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- DD-C-575 TY4
- 80244 - General Services Administration (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- DD-C-575
- 81348 - Federal Specifications Promulgated (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 07-744-5
- 22527 - Fisher Scientific Company L.L.C. (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 6640-00-359-9731
- Characteristic
- Specifications
- FIIG
- Specifications
- T269-C
- Drip Tip [BQFY]
- Included

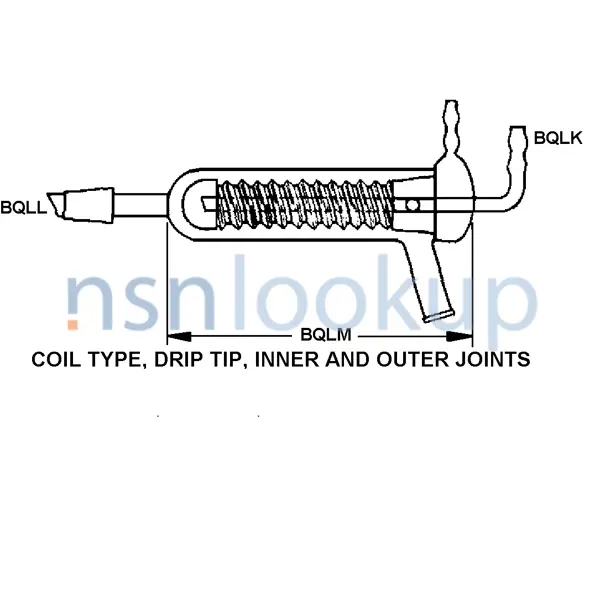

- Condenser Style Designator [BQFW]
- Coil Type, Drip Tip Inner And Outer Joints
- Condensor Outlet Joint Size [BQLL]
- 24/40 Std Taper Condenser Outler Joint Size
- Nondefinitive Spec/Std Data [ZZZT]
- 4 Type
- Jacket Length [BQLM]
- 225.000 Millimeters Nominal
- Linear Expansion Coefficient Temp Range In Deg Celsius [ATYS]
- +0.0 To 300.0
- Linear Expansion Coefficient Per Deg Celsius [ATYR]
- 0.0000033
- Unit Package Quantity [AGUC]
- 1
- Unit Package Type [AGXZ]
- Box
- Vapor Inlet Joint Size [BQLK]
- 24/40 Std Taper Vapor Inlet Joint Size
DLA Procurement Analysis 6640-00-359-9731
Management Data 6640-00-359-9731
Army
- Materiel Category and Inventory Manager:
- C
- Medical/Dental Materiel
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Similar Supply Items to 6640-00-359-9731
Freight Information 6640-00-359-9731
6640-00-359-9731 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 088120. A Sub NMFC of X. It has a NMFC Description of GLASSWARE LABORATORY. 6640-00-359-9731 is rated as class 100 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 46490 which rates the freight between FCL and LCL. 6640-00-359-9731 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 652 for ocean manifesting and military sealift. 6640-00-359-9731 is not classified as a special type of cargo when transported by water. 6640-00-359-9731 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
