6625-01-467-4148
Ammeter
6625014674148 014674148 MODEL2523 FILENO.443 17977ASTERISK 2523 17977
An instrument which measures electric current and is calibrated and marked in amperes or any multiple and/or submultiple thereof. The value may be expressed by means of a pointer and calibrated dial or a digital readout display. For current detecting type of devices, see GALVANOMETER. View more Ammeter
November 2023
7
Marketplace 6625-01-467-4148
Request a Quotation from participating marketplace vendors
Related Documents 6625-01-467-4148 5+ Documents (More...)
-17977 An instrument which measures 2523-17977 An instrument which measures 2523-17977 An instrument
2523-17977 An instrument which measures electrical potential and is calibrated in volts or any multiple
2523-17977 An instrument which measures electrical potential and is calibrated in volts or any multiple
-17977 An instrument which measures electrical potential and is calibrated in volts or any multiple 2523
Upgrade for $1 a day Upgrade your Account Upgrade 6625-01-441-3366Voltmeter6625014413366 014413366 17977
2523-17977 An instrument which measures electrical potential and is calibrated in volts or any multiple
2523-17977 An instrument which measures electrical potential and is calibrated in volts or any multiple
JavaScript in your web browser . 1240-14-332-2429Optical Instrument Window1240143322429 143322429 17977
Upgrade for $1 a day Upgrade your Account Upgrade 6625-01-441-3366Voltmeter6625014413366 014413366 17977
2523-17977 An instrument which measures electrical potential and is calibrated in volts or any multiple
Restrictions 6625-01-467-4148
6625-01-467-4148 is a Ammeter that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.
Import and Export 6625-01-467-4148
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 6625-01-467-4148
- US Navy (N9BN)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- N9ND
- Supplementary Collaborators:
- GTHD
- Malaysia (YW01)
- Effective Date:
- 1 Sep 2008
Approved Sources 6625-01-467-4148
- Part Number
- Manufacturer
- Status
- 17977ASTERISK
- Manufacturer
- 03XG0 - Eagle Instruments & Controls Inc (Active)
- Primary Buy
- Primary Buy
- 2523
- 55026 - Simpson Electric Company, Inc. (Active)
- Original Design
- Original Design
- 17977
- 03XG0 - Eagle Instruments & Controls Inc (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- MODEL2523 FILENO.443
- 55026 - Simpson Electric Company, Inc. (Active)
- Advisory Reference
- Advisory Reference
Datasheet 6625-01-467-4148
- Characteristic
- Specifications
- FIIG
- Specifications
- A310A0
- Circuit Current For Which Designed [AACT]
- Dc Or Ac
- Measurement Range [BHMW]
- +0.0/+50.0 Amperes, Dc Single Indicator All Ranges
- Meter Depth Behind Mounting Flange [APST]
- 0.600 Inches Nominal
- Installation Design [AMQY]
- Panel Or Rack
- Overall Height [ABKW]
- 3.500 Inches Nominal
- Overall Length [ABHP]
- 2.820 Inches Nominal
- Overall Width [ABMK]
- 2.560 Inches Nominal
- Special Features [FEAT]
- Model 2523L File No. 4432-99 Glass Windows 250 Long Scale-Special Scale 0-15 Dca, External Shunt Required
- Style Designator [STYL]

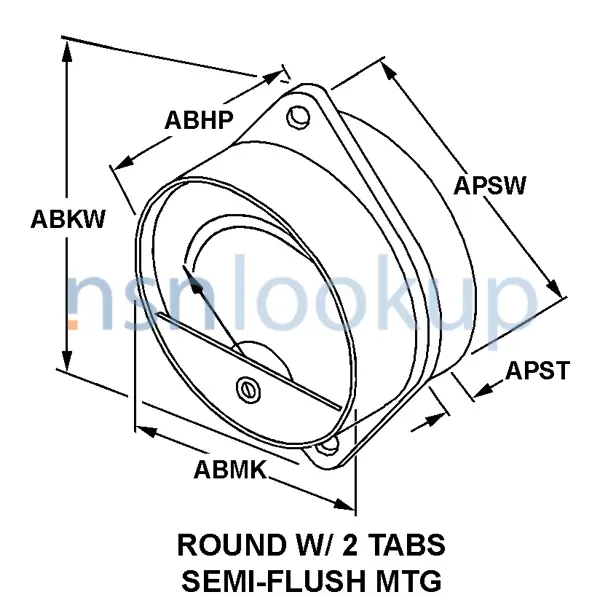

- Round W/2 Tabs Semi-Flush Mtg
Weapon Systems (WSDC) 6625-01-467-4148
DLA Procurement Analysis 6625-01-467-4148
- Last Stock Position:
- 2 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 6625-01-467-4148
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 6625-01-467-4148
Freight Information 6625-01-467-4148
6625-01-467-4148 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 061620. A Sub NMFC of X. It has a NMFC Description of ELECTRIC CURRENT TESTERS. 6625-01-467-4148 is rated as class 100 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 34540 which rates the freight between FCL and LCL. 6625-01-467-4148 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 657 for ocean manifesting and military sealift. 6625-01-467-4148 is not classified as a special type of cargo when transported by water. 6625-01-467-4148 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 6625-01-467-4148
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- --
- Over 10lb
- Less than 85G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- --
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- No Requirement
- PPP-C-795, Cellular Plastic Film Cushioning; or A-A-3129, Open Cell Plastic Cushioning; or PPP-C-1797, Polypropylene Foam Cushioning; or A-A-59136, Polyethylene Foam Cushioning
- --
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
- No special marking
- No Requirement
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- Any Suitable Fiber Box
Procurement History 6625-01-467-4148 3 Records
Contracting Technical Data File (CTDF) 6625-01-467-4148 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- L
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
