Premium Information is available for this item - Upgrade for $1 a day
6625-01-271-3498

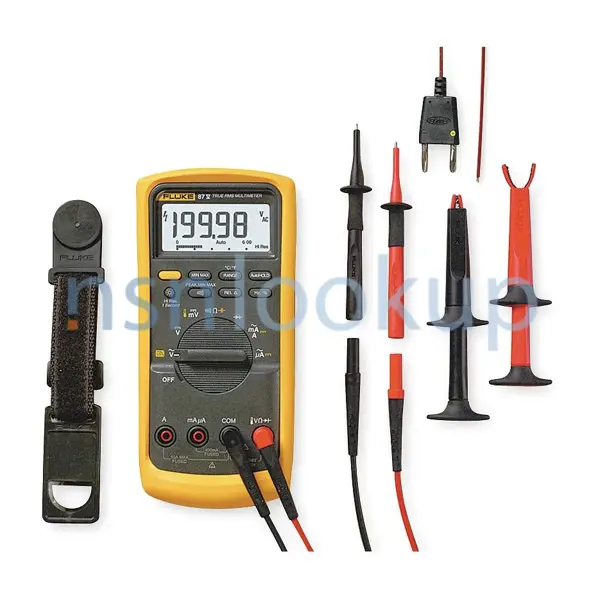

Multimeter
6625012713498 012713498 37
An instrument which is arranged to measure two or more different electrical quantities (such as volts, amps, and ohms) by means of associated circuits and switches. The value is usually expressed on a single calibrated dial or digital readout display. For items which are connected into a circuit and used chiefly to visually monitor an operation, see METER, MULTIPLE SCALE. See also COUNTER, ELECTRONIC, DIGITAL READOUT. Excludes BRIDGE (as modified). View more Multimeter
May 2023
12
Marketplace 6625-01-271-3498
Request a Quotation from participating marketplace vendors
Related Documents 6625-01-271-3498 5+ Documents (More...)
1 EA NS Request Quotation Updated Every Day Search Global Test Supply 37 RQST NE Updated Every Day 6625
/us 6625-01-271-3498 Multimeter 6625012713498 012713498,37 Request a Quotation from participating marketplace
-224-2252 6625-01-317-8373 9999-56-050-9748 9999-00-462-7581 9999-21-882-9457 9999-99-612-7936 9999-37
-224-2252 6625-01-317-8373 9999-56-050-9748 9999-00-462-7581 9999-21-882-9457 9999-99-612-7936 9999-37
-224-2252 6625-01-317-8373 9999-56-050-9748 9999-00-462-7581 9999-21-882-9457 9999-99-612-7936 9999-37
-224-2252 6625-01-317-8373 9999-56-050-9748 9999-00-462-7581 9999-21-882-9457 9999-99-612-7936 9999-37
Restrictions 6625-01-271-3498
IUID Required
6625-01-271-3498 is a Multimeter that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. The DCMO has forced the Demilization requirements for this item as the ICP has not collaborated. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. The precious metals content of this item is unknown.
Import and Export 6625-01-271-3498
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 6625-01-271-3498
- US Air Force (FGG4)
- Effective Date:
- 1 Sep 2000
- Former MOE Rule:
- FEE4
- Spain (YB01)
- Effective Date:
- 1 Apr 1997
- Singapore (YJ01)
- Effective Date:
- 1 Jan 1994
- Republic of Korea (ZH01)
- Effective Date:
- 1 Aug 1998
- Italy (ZR01)
- Effective Date:
- 1 Dec 2007
- Norway (ZT01)
- Effective Date:
- 1 Apr 1991
Approved Sources 6625-01-271-3498
- Part Number
- Manufacturer
- Status
- 37
- Manufacturer
- 89536 - Fluke Corp (Active)
- Primary Buy
- Primary Buy
Datasheet 6625-01-271-3498
- Characteristic
- Specifications
- FIIG
- Specifications
- A310A0
- Circuit Current For Which Designed [AACT]
- Dc
- Display Digit Quantity [BFQP]
- 3-1/2
- Display Type [BFQN]
- Liquid Crystal
- Installation Design [AMQY]
- Hand Held
- Indicator Type [AMKD]
- Digital Display
- Power Source [AWZJ]
- Internal
- Overall Depth [ABFY]
- 2.200 Inches Nominal
- Overall Length [ABHP]
- 8.000 Inches Nominal
- Overall Width [ABMK]
- 3.750 Inches Nominal
- Special Features [FEAT]
- Tilt Stand; Handle; Storage Area; 3200-Count Display; 0.1 Pct Basic Dc Accuracy; 31 Segment Bargraph; Touch Hold; Audible Checks; Emi Shielding; Overload Protection To 1000V Rms; Ac And Dc Voltage Range: 320 Mv To 1000 V; Ac And Dc Current Range: 320 Ua To 10 A; Resistance Range: 320 Ohms To 32 Megohms; Weight: 2.9 Lbs
- Style Designator [STYL]
- Hand-Held
Similar Supply Items to 6625-01-271-3498
Freight Information 6625-01-271-3498
6625-01-271-3498 has freight characteristics managed by Norway.It has a National Motor Freight Classification (NMFC) of 061700. A Sub NMFC of X. It has a NMFC Description of ELEC APPLIANCES/INSTRUMENTS NOI. 6625-01-271-3498 is rated as class 100 when transported by Less-Than Truckload (LTL) freight. 6625-01-271-3498 is rated as class 77.5 when transported by Less-Than Carload (LCL) rail or ocean freight. It has a Uniform Freight Classification (UFC) number of 34580 which rates the freight between FCL and LCL. 6625-01-271-3498 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 738 for ocean manifesting and military sealift. 6625-01-271-3498 is classified as an Electrostatic Sensitive Device (ESD) when transported by water. 6625-01-271-3498 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
