6625-00-892-5541

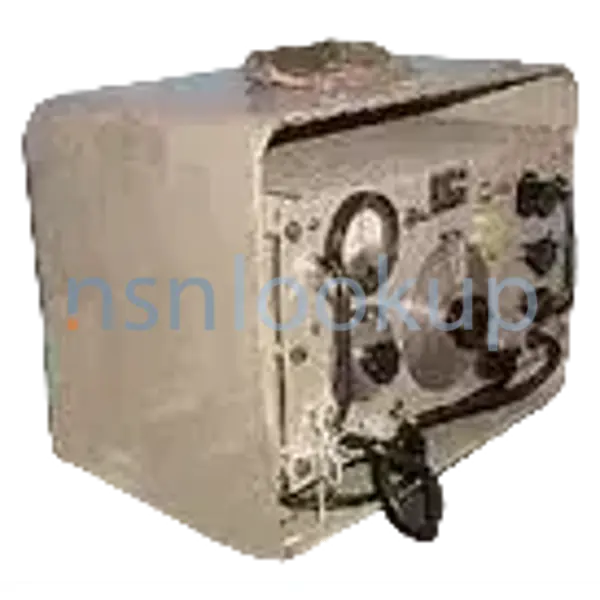

Radio Frequency Power Test Set
6625008925541 008925541 ANUSM161 457
A test set primarily designed for use in making examinations of the power output of radio frequency oscillators and radio and radar transmitters. See also TEST SET, ELECTRICAL POWER; and WATTMETER. View more Radio Frequency Power Test Set
September 2025
24
Marketplace 6625-00-892-5541
Request a Quotation from participating marketplace vendors
Related Documents 6625-00-892-5541 1+ Documents (More...)
United States (US) 4. 6625-00-892-5541 Marketplace Restrictions Approved Sources Datasheet Management
Updated Every Day 6625-00-892-5541 RQST Updated Every Day 6625-00-892-5541 RQST NE Related Documents
Restrictions 6625-00-892-5541
IUID Required
6625-00-892-5541 is a Radio Frequency Power Test Set that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item has been confirmed as a Critical Munitions List Item or a Sensitive Commerce Control List Item and cannot be in the possession of any party anywhere in the World who is not an authorized NATO Government. Any other possessor of this item should mutilate it now as possession violates international and local laws. This item is a US Munitions List Item and must be mutilated to scrap. This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.
Import and Export 6625-00-892-5541
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 6625-00-892-5541
- Austria (WB01)
- Effective Date:
- 1 Feb 2005
- Spain (YB01)
- Effective Date:
- 1 Feb 1994
- France (ZF01)
- Effective Date:
- 1 May 2015
- Germany (ZG01)
- Effective Date:
- 1 Apr 1991
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- Portugal (ZP01)
- Effective Date:
- 1 Apr 1991
- Greece (ZU01)
- Effective Date:
- 1 Aug 1995
Approved Sources 6625-00-892-5541
- Part Number
- Manufacturer
- Status
- ANUSM161
- Manufacturer
- 80058 - Joint Electronics Type Designation (Active)
- Primary Buy
- Primary Buy
- 457
- 11332 - General Microwave Corporation (Active)
- Secondary Buy
- Secondary Buy
Datasheet 6625-00-892-5541
- Characteristic
- Specifications
- FIIG
- Specifications
- T228-F
- Accessory Component Quantity [AFHS]
- 1 And 1 And 1 And 1
- Ac Voltage Rating [ACYN]
- 115.0 Volts Nominal
- Accessory Controlling Agency [AKVY]
- Jetds And Jetds And Jetds And Jetds
- Accessory Identifying Number [AKVZ]
- Cn-844/Usm-161 Type No. And Cn-845/Usm-161 Type No. And Dt-255/Usm-161 Type No. And Ts-1776-Usm-161 Type No.
- Furnished Items [AFJH]
- Attenuator,Fixed;Attenuator,Fixed;Bolometer,Radio;Test Set,Rf Power
- Frequency Rating [ACZB]
- 50.0 Hertz Nominal
- Height [HGTH]
- 10.000 Inches Nominal
- Measurement Unit [ANSX]
- Average Power
- Input Frequency Range [AREN]
- +10.000 To 10000.000 Megahertz
- Inclosure Feature [ANPZ]
- Single Item W/Carrying Case
- Input Impedance Rating [AMND]
- 50.0 Ohms Nominal
- Joint Electronics Type Designation System Item Name [AKWA]
- Test Set,Radio Frequency Power
- Joint Electronics Type Designation System Item Type Number [AKWB]
- An/Usm-161
- Length [ABRY]
- 12.000 Inches Nominal
- Material And Location [ANNQ]
- Aluminum Carrying Case
- Radio Frequency Input Power Rating [AREP]
- 0.0 Milliwatts Minimum And 10.0 Milliwatts Maximum
- Scale Direction And Range [ABWD]
- 0 To 10 Clockwise
- Scale Unit Of Measure Inscription [ABWC]
- Milliwatts
- Phase [FAAZ]
- Single
- Width [ABGL]
- 14.000 Inches Nominal
Similar Supply Items to 6625-00-892-5541
Freight Information 6625-00-892-5541
6625-00-892-5541 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 062330. A Sub NMFC of X. It has a NMFC Description of KITS/SETS ELEC INSTRUMENT ASSEMBLY. 6625-00-892-5541 is rated as class 100 when transported by Less-Than Truckload (LTL) freight. 6625-00-892-5541 is rated as class 100 when transported by Less-Than Carload (LCL) rail or ocean freight. It has a Uniform Freight Classification (UFC) number of 34855 which rates the freight between FCL and LCL. It has a Water Commodity Code (WCC) of 72D for ocean manifesting and military sealift. 6625-00-892-5541 is not classified as a special type of cargo when transported by water. 6625-00-892-5541 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 6625-00-892-5541
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- Packaging Data does not meet current MIL-STD-2073-1E
- Storage Environment
- Heated General Purpose – Heated 40 F and above
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- 0.1" H x 0.1" W x 0.1" L
- --
- --
- Over 10lb
- Less than 85G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- --
- 17.0" H x 15.0" W x 12.9" L
- --
- --
- --
- Any Suitable Process
- 17.0" H x 15.0" W x 12.9" L
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- No Requirement
- Weather Resistant Fiberboard Meeting the Requirements of ASTM-D4727 used as Pads, Cells, Die-cuts or Sleeves; or Plastic Molding Material conforming to MIL-P-19644; or Polyurethane Foam conforming to MIL-PRF-26514
- --
- ASTM-D5118, Type CF, Class Weather-Resistant, Corrugated Fiberboard Box
- No special marking
- No Requirement
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- No Requirement
