6625-00-849-4510
Watthour Meter
6625008494510 008494510 DS63 700X63G1
An instrument which indicates the power consumed in an electric circuit over a period of time, and which for normal indication is calibrated in watthours or any multiple thereof. May include a demand element. View more Watthour Meter
May 2023
9
Marketplace 6625-00-849-4510
Request a Quotation from participating marketplace vendors
Related Documents 6625-00-849-4510 5+ Documents (More...)
BUY NE FedMall Updated Every Day 6625-00-849-4510 RQST NE Updated Every Day 6625-00-849-4510 RQST
Updated Every Day 6625-00-849-4510 RQST NE Related Documents 6625-00-849-4510 5+ Documents ( More...
JavaScript in your web browser . 6685-15-122-1986Pressure Dial Gage6685151221986 151221986 MGS10/3/DS63
Radiator Testing Cap-Plug 4910121776905,DS63 151152529 https//www.nsnlookup.com /fsg-66/fsc-6620/it
to enable JavaScript in your web browser . 5330-99-422-8364Gasket5330994228364 994228364 GM4071-2 DS63
Watthour Meter 6625008494510 008494510,DS63 Radiator Testing Cap-Plug 4910121776905,DS63 151152529
177-6905 Radiator Testing Cap-Plug 4910121776905,DS63 More... ) https//www.nsnlookup.com https MGS10
/3 DS63 Radiator Testing Cap-Plug 4910121776905,DS63 151152529 https//www.nsnlookup.com /fsg-66/fsc-6620
2529 RQST NE Related Documents https MGS10/3 DS63 https//www.nsnlookup.com /fsg-66/fsc-6685/uk 6685-
Radiator Testing Cap-Plug 4910121776905,DS63 1986Pressure https//www.nsnlookup.com /fsg-59/fsc-5965/
Restrictions 6625-00-849-4510
6625-00-849-4510 is a Watthour Meter that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. The precious metals content of this item is unknown.
Import and Export 6625-00-849-4510
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 6625-00-849-4510
- US Air Force (FGGX)
- Effective Date:
- 1 Jul 2005
- Former MOE Rule:
- FGTX
Approved Sources 6625-00-849-4510
- Part Number
- Manufacturer
- Status
- DS63
- Manufacturer
- 60969 - General Electric Co Electrical (Active)
- Primary Buy
- Primary Buy
- 700X63G1
- 24446 - General Electric Company (Active)
- Secondary Buy
- Secondary Buy
- DS63
- 24446 - General Electric Company (Active)
- Secondary Buy
- Secondary Buy
- 700X63G1
- 03516 - General Electric Co Meter Business (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 6625-00-849-4510
- Characteristic
- Specifications
- FIIG
- Specifications
- T134-L
- Mounting Type [AAXX]
- Panel
- Indication Type [BHHJ]
- Normal
- Voltage Rating [AMSE]
- 120.0 Volts Nominal
- Current Rating In Amps [AMPS]
- 2.5
- Frequency In Hertz [FREQ]
- 60.0
- Phase [FAAZ]
- Three
- Wire Quantity [AQAN]
- 3
- Element Quantity [BHHK]
- 1

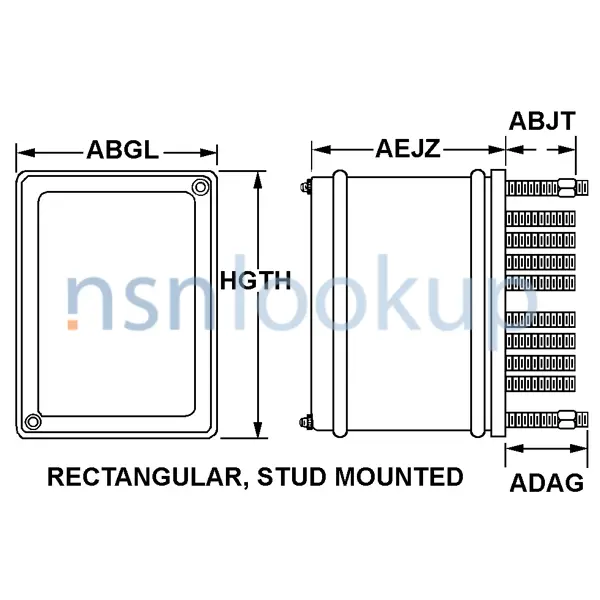

- Case Style [BHHL]
- Rectangular, Stud Mounted
- Width [ABGL]
- 6.625 Inches Nominal
- Terminal Length [ABJT]
- 0.750 Inches Nominal
- Mounting Stud Length [ADAG]
- 3.000 Inches Nominal
- Depth [AEJZ]
- 7.312 Inches Nominal
- Height [HGTH]
- 9.125 Inches Nominal
- Case Cover Shape [BHHM]
- Flat
- Case Cover Material [BHHN]
- Glass
- Terminal Quantity [AARA]
- 13
- Terminal Type [AARB]
- Screw Stud
- Terminal Location [APXH]
- Case Back
- Unit Type [APQB]
- Self-Contained
- Mounting Configuration [ALGC]
- Two 5/16-18 Thd Mtg Studs 3 In. Lg Spaced 1 In. C To C
- Register Maximum Measurement [BHHT]
- 10.0 Kilowatt-Hour
- Bearing Type [ACSK]
- Ball
DLA Procurement Analysis 6625-00-849-4510
Management Data 6625-00-849-4510
Air Force
- Fund:
- SF
- Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point
- Budget:
- 9
- 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors
- Aggregation Code:
- TG
- AF SICA RESIDUAL MMAC-WR-ALC
- Price Validation Code:
- N
- The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
The price has not been analyzed or reviewed for accuracy.
ZOP or Standard price challenges are permissible but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of “L” or “F”, then it must be evaluated locally where purchased or fabricated.
- Expendability
Recoverability
Repairability: - N
- Expendable. Condemn at User. Stock Fund (except Munitions).
Similar Supply Items to 6625-00-849-4510
Freight Information 6625-00-849-4510
6625-00-849-4510 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 136740. A Sub NMFC of Z. It has a NMFC Description of METERS ELEC/PARTS. 6625-00-849-4510 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 68820 which rates the freight between FCL and LCL. 6625-00-849-4510 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 657 for ocean manifesting and military sealift. 6625-00-849-4510 is not classified as a special type of cargo when transported by water. 6625-00-849-4510 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
