6620-00-814-4770

Pressure Transmitter

6620008144770 008144770 MIL-I-10986F 5653085 MS24538-1 560E80-2134 4358709 TIP00213-17APR70 289Z38 1508092 506T MS24538 00173-0018-88 11171-42-265G 8011765-5 1164027-4 53618AS 53618CS 8329141 1069G1 124083 284530R91 M284530R91 64MT126 173-0018-88 250606B 164428

An instrument that senses, measures and converts pressure of a gas or fluid into electrical signals to be displayed in Pounds per Square Inch (PSI) or the equivalent. The item contains an input pressure port, electrical output connection and may include an output pressure port. See also TRANSDUCER, MOTIONAL PICKUP for items with a linear motional input and electrical output to be displayed in other than PSI or the equivalent. View more Pressure Transmitter

Managed by United States

NSN Created on 1 Jan 1962

Data Last Changed
March 2025

NATO Update Count
82

NATO Data Quality

6620-00-814-4770 TRANSMITTER,PRESSURE 6620008144770 008144770 1/1 — 6620-00-814-4770 Photo 1/1

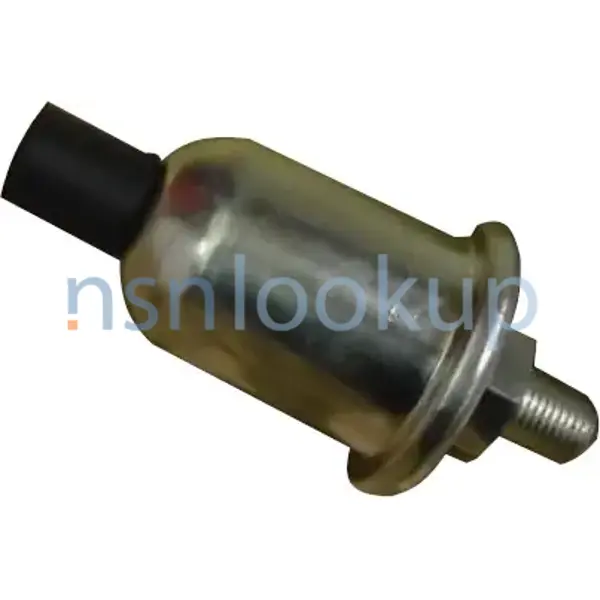

Product Information 6620-00-814-4770

Engine Oil Pressure Transmitter

Range: 0 - 60 PSI

Voltage: 24V

Marketplace 6620-00-814-4770

Need Help?
Request a Quotation from participating marketplace vendors

FinditParts

124083 Phillips Industries 12-4083 - Gladhand Emergency Anodized With Poly Seal STK NE $17.85 Distributor Buy Now

Subscribe to View Vendor Details...

MS24538-1 TRANSMITTER,PRESSURE 3 EA NS

102243 TRANSMITTER,PRESSURE 1 EA NS

Subscribe to View Vendor Details...

6620-00-814-4770 TRANSMITTER,PRESSURE 2 EA NS

Subscribe to View Vendor Details...

MS24538-1 TRANSMITTER,PRESSURE 2 EA NS

Subscribe to View Vendor Details...

6620-00-814-4770 TRANSMITTER,PRESSURE 2 EA NS

Subscribe to View Vendor Details...

MS24538-1 TRANSMITTER,PRESSURE 1 EA NS

8376490 TRANSMITTER,PRESSURE 1 EA NS

506T TRANSMITTER,PRESSURE 1 EA NS

GP1-506-T TRANSMITTER,PRESSURE 1 EA NS

MS-24538-1 TRANSMITTER,PRESSURE 1 EA NS

Subscribe to View Vendor Details...

GP2-506-T TRANSMITTER,PRESSURE 1 EA NS

MS24538-1 TRANSMITTER,PRESSURE 1 EA NS

Subscribe to View Vendor Details...

250606B TRANSMITTER,PRESSURE 120 EA NS

Subscribe to View Vendor Details...

MS24538 TRANSMITTER,PRESSURE 2 EA NS

MIL-I-10986F TRANSMITTER,PRESSURE 5 EA NS

Subscribe to View Vendor Details...

MS24538-18376490 TRANSMITTER,PRESSURE RQST NS

Subscribe to View Vendor Details...

00173-0018-88 TRANSMITTER,PRESSUR 7 EA R

00173-0018-88 TRANSMITTER,PRESSUR 39 EA SN

Subscribe to View Vendor Details...

8376490M TRANSMITTER,PRESSURE 5 EA NS

Subscribe to View Vendor Details...

6620-00-814-4770 OIL PRES. TRANSMIT. 5 EA NS

Subscribe to View Vendor Details...

MS24538-1 TRANSMITTER,PRESSURE 5 EA NS

Subscribe to View Vendor Details...

8376490 TRANSMITTER,PRESSURE 1 EA NS

Subscribe to View Vendor Details...

008144770.6620 TRANSMITTER,PRESSURE 3 EA NS

1549159 TRANSMITTER,PRESSURE 5 EA NS

Subscribe to View Vendor Details...

506T-GP2 TRANSMITTER,PRESSURE 1 EA NS

Updated Every Day

5653085 RQST NE

Updated Every Day

MS24538-1 RQST NE

Updated Every Day

1508092 RQST NE

Updated Every Day

284530R91 RQST NE

Updated Every Day

M284530R91 RQST NE

Updated Every Day

6620-00-814-4770 RQST NE

Updated Every Day

6620-00-814-4770 RQST

Updated Every Day

6620-00-814-4770 RQST NE

Restrictions 6620-00-814-4770

6620-00-814-4770 is a Pressure Transmitter that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.

Import and Export 6620-00-814-4770

Schedule B: Subscribe to View Schedule B
HTS Code: Subscribe to View HTS Code

End Users 6620-00-814-4770

US Army (A920)
Effective Date:: 1 May 2006
Former MOE Rule:: A183
Supplementary Receivers:: AJCTBFAZ; AMC 1 AMSC G IMC Z IMCACTY AZ

US Air Force (FXGG)
Effective Date:: 1 May 2006
Former MOE Rule:: FXCX; AMC 1 AMSC G IMC Z IMCACTY SX

US Marine Corps (MC41)
Effective Date:: 1 May 2006
Former MOE Rule:: MC54; AMC 1 AMSC G IMC Z IMCACTY PA

US Navy (N9BG)
Effective Date:: 1 May 2006
Former MOE Rule:: N9GD
Supplementary Collaborators:: GTHD; AMC 1 AMSC G IMC Z IMCACTY GH

Austria (WB01)
Effective Date:: 1 Feb 2005

Brazil (YA01)
Effective Date:: 1 Mar 2001

Spain (YB01)
Effective Date:: 1 Apr 1991

Israel (YD01)
Effective Date:: 1 Feb 2017

Singapore (YJ01)
Effective Date:: 1 Apr 1991

Kuwait (YK01)
Effective Date:: 1 Jan 2015

Morocco (YP01)
Effective Date:: 1 Nov 2008

Australia (ZA01)
Effective Date:: 1 Mar 2012

Belgium (ZB01)
Effective Date:: 1 Apr 1991

Canada (ZC01)
Effective Date:: 1 Apr 1991

New Zealand (ZE01)
Effective Date:: 1 Apr 1991

Germany (ZG01)
Effective Date:: 1 Apr 1991

Republic of Korea (ZH01)
Effective Date:: 1 Apr 1991

Netherlands (ZN01)
Effective Date:: 1 Apr 1991

Portugal (ZP01)
Effective Date:: 1 Apr 1991

Italy (ZR01)
Effective Date:: 1 Apr 1991

Denmark (ZS01)
Effective Date:: 1 Apr 1991

Norway (ZT01)
Effective Date:: 1 Apr 1991

Greece (ZU01)
Effective Date:: 1 Apr 1991

Turkey (ZW01)
Effective Date:: 1 Nov 2005

NATO Maintenance and Supply Agency (ZX01)
Effective Date:: 1 Apr 1991

Approved Sources 6620-00-814-4770

Part Number
Manufacturer
Status
MS24538-1: 96906 - Military Standards (Active); Definitive Standard; RNCC 2 RNVC 2 DAC E
MIL-I-10986F: 81349 - Military Specifications (Active); Incomplete Standard; RNCC 4 RNVC 1 DAC E
5653085: 24617 - General Motors Corp (Active); Incomplete Secondary Reference; RNCC 5 RNVC 1 DAC X
MS24538-1: 24617 - General Motors Corp (Active); Incomplete Secondary Reference; RNCC 5 RNVC 1 DAC X
560E80-2134: 75377 - Kurz & Root Generator Company, Llc (Active); Incomplete Secondary Reference; RNCC 5 RNVC 1 DAC X
4358709: 6N299 - Agco Corp (Active); Incomplete Secondary Reference; RNCC 5 RNVC 1 DAC 1
TIP00213-17APR70: 97403 - Cecom Lr Center (Active); Incomplete Secondary Reference; RNCC 5 RNVC 1 DAC 3
289Z38: 27315 - Morris Material Handling, Inc. (Active); Incomplete Secondary Reference; RNCC 5 RNVC 1 DAC 5
1508092: 24617 - General Motors Corp (Active); Incomplete Secondary Reference; RNCC 5 RNVC 1 DAC X
506T: 57733 - Stewart-Warner Corporation (Active); Incomplete Secondary Reference; RNCC 5 RNVC 1 DAC X
506T: 98738 - Herley Chicago (Active); Incomplete Secondary Reference; RNCC 5 RNVC 1 DAC X
MS24538: 81336 - Chief Of Engineers Dept Of Army (Active); Incomplete Secondary Reference; RNCC 5 RNVC 1 DAC X
00173-0018-88: 79343 - Asrc Federal Facilities Logistics, (Active); Incomplete Secondary Reference; RNCC 5 RNVC 1 DAC 5
250606B: 1ML14 - Brinkley Technology Group Llc (Active); Incomplete Secondary Reference; RNCC 5 RNVC 1 DAC 5
11171-42-265G: 61465 - Garwood/Feller Inc Garwood Winch Div (Active); Incomplete Secondary Reference; RNCC 5 RNVC 1 DAC 5
8011765-5: 61465 - Garwood/Feller Inc Garwood Winch Div (Active); Incomplete Secondary Reference; RNCC 5 RNVC 1 DAC 5
1164027-4: 00642 - Heale Manufacturing Co Llc (Active); Incomplete Secondary Reference; RNCC 5 RNVC 1 DAC 5
284530R91: 92679 - Navistar Intl Corp (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
M284530R91: 92679 - Navistar Intl Corp (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
64MT126: 76040 - Mack Trucks Inc Parts Opn (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
173-0018-88: 93568 - Harsco Corp Bmy-Combat Systems Div (Obsolete); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
5653085: 70040 - General Motors Llc (Obsolete); Canceled/Obsolete; RNCC 5 RNVC 9 DAC X
250606B: 28265 - Hercules Engine Co Inc (Obsolete); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
164428: 64104 - Dresser, Llc (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC X
481396: 02280 - American Hoist And Derrick Co (Obsolete); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
MS24538-1: 70040 - General Motors Llc (Obsolete); Canceled/Obsolete; RNCC 5 RNVC 9 DAC X
00173-0018-88: 93568 - Harsco Corp Bmy-Combat Systems Div (Obsolete); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
6620008144770: SCY13 - E.C.A Etablissement (Replaced); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 9
481396: 49185 - Terex American Crane Corp (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
M16788: 54764 - Mancraft Industries Inc (Obsolete); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
102-243: 25980 - Graco Inc. (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
193-179: 44940 - Cummins Power Generation Inc. (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
10A17020: 81240 - White Farm Equipment Co (Obsolete); Canceled/Obsolete; RNCC 5 RNVC 9 DAC X
989108: 97907 - Terex Corp (Obsolete); Canceled/Obsolete; RNCC 5 RNVC 9 DAC X
1508092: 70040 - General Motors Llc (Obsolete); Canceled/Obsolete; RNCC 5 RNVC 9 DAC X
MS24538: 96906 - Military Standards (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC E
6620006348945: A00AM - E.C.A Etablissement Central Des (Active); NATO Reference; RNCC 6 RNVC 9 DAC 9
8376490: 19207 - U S Army Tank Automotive Command (Active); Informational Drawing; RNCC D RNVC 9 DAC X
53618AS: 1ML14 - Brinkley Technology Group Llc (Active); Transferred; RNCC E RNVC 8 DAC 5
53618CS: 1ML14 - Brinkley Technology Group Llc (Active); Transferred; RNCC E RNVC 8 DAC 5
8329141: 34623 - Am General Llc (Active); Transferred; RNCC E RNVC 8 DAC 5
1069G1: 56442 - Diamond Reo Truck Co (Obsolete); Transferred; RNCC E RNVC 8 DAC 5
124083: 29510 - Komatsu American Intl Co (Replaced); Transferred; RNCC E RNVC 8 DAC 5
53618AS: 28265 - Hercules Engine Co Inc (Obsolete); Transferred; RNCC E RNVC 8 DAC 5
8329141: 19207 - U S Army Tank Automotive Command (Active); Transferred; RNCC E RNVC 8 DAC 5
53618CS: 28265 - Hercules Engine Co Inc (Obsolete); Transferred; RNCC E RNVC 8 DAC 5

Datasheet 6620-00-814-4770

Characteristic
Specifications
FIIG: T179-E
Electrical Connection Controlling Agency [ASKY]: Mil Std
Electrical Connection Identifying Number [ASKZ]: Part No. Ms33800-1
Electrical Connection Quantity [ASKX]: 1
Actuation Method [AFLW]: Any Acceptable
Contact Quantity [AFRA]: 1
Contact Type [AKSF]: Pin
Fsc Application Data [ZZZV]: Engine Instruments 98738 506T
Current Type [ACDC]: Dc
Measurement Range [BHMW]: +0.0/+60.0 Pounds Pressure Per Square Inch
Mechanical Connection Quantity [ASSB]: 1
Mechanical Connection Size [ASSC]: 1/4 In.
Mechanical Connection Type [ASSD]: External Pipe
Mounting Device Quantity [ACUP]: 1
Mounting Method [AXGY]: Inlet Pipe Connection
Overall Length [ABHP]: 4.750 Inches Nominal
Overall Thickness [ADUM]: 2.187 Inches Nominal
Overall Width [ABMK]: 2.187 Inches Nominal
Voltage Rating [AMSE]: 24.0 Volts Nominal

Weapon Systems (WSDC) 6620-00-814-4770

Subscribe
View WSDC

Subscribe to View Weapon System Codes...

Subscribe
View Data

DLA Procurement Analysis 6620-00-814-4770

Last Stock Position:: 32 In Stock
DLA Administrative Lead Time:: Subscribe
DLA Production Lead Time:: Subscribe

Subscribe to View DLA Inventory and Forecast...

Management Data 6620-00-814-4770

Subscribe
View Prices

Effective Date: Organization; Unit of Issue; Unit Price; Qty Unit Pack
Oct 2022: Department of the Navy (DN); EA; Subscribe; 1
Oct 2021: Department of the Air Force (DF); EA; Subscribe; 1
Oct 2020: Department of the Air Force (DF); EA; Subscribe; 1
Nov 2019: Department of the Army (DA); EA; Subscribe; 1

Army

Materiel Category and Inventory Manager:

J: Ground Forces Support Materiel (DLA/GSA Items)

Appropriation and Budget Activity:

2: Stock Fund Secondary Items

Management Inventory Segment:

2: Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.

Weapons System / End Item / Homogeneous Group:

JT: Tanks
Recovery Vehicle, M51/M74/M88

Accounting Requirements:

X: Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.

Navy

Cognizance:

9B: Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg

Marine Corps

Stores Account:

1: Stock Fund Account Item

Combat Essentiality:

5: Critical Repair Part to a Combat Essential End Item

Echelon Management:

B2

Material Identification:

T: Maintenance Float Secondary Non-depot Reparables

Operational Test:

: No Special Procedures

Similar Supply Items to 6620-00-814-4770

Freight Information 6620-00-814-4770

6620-00-814-4770 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 061700. A Sub NMFC of Z. It has a NMFC Description of ELEC APPLIANCES/INSTRUMENTS NOI. 6620-00-814-4770 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. 6620-00-814-4770 is rated as class 85 when transported by Less-Than Carload (LCL) rail or ocean freight. It has a Uniform Freight Classification (UFC) number of 34580 which rates the freight between FCL and LCL. It has a Water Commodity Code (WCC) of 658 for ocean manifesting and military sealift. 6620-00-814-4770 is not classified as a special type of cargo when transported by water. 6620-00-814-4770 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.

Packaging Data 6620-00-814-4770

Responsible Activity
Packaging Data Source: Primary Inventory Control Activity (PICA); --

Item Pack Level (Unpackaged)

Item Size
Item Weight
Characteristics
Weight/Dimensions Category
Fragility
Item Preservation: --; --; Bare Metal Item; Over 10lb; Less than 85G; Special Requirement

Unit Pack Level (Packaged)

Quantity per Pack
Unit Size
Unit Weight
Unit Cube
Preservation Method
Cleaning/Drying: 1; --; --; --; Physical Protection; Any Suitable Process

Preservation Material
Wrapping Material
Cushioning/Dunnage
Cushioning Thickness
Container
Special Marking: --; --; --; --; PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box; No special marking

Intermediate Pack Level

Quantity of Unit Packs
Container: ASTM - D5118, Fiberboard Box

Procurement History 6620-00-814-4770 18 Records

Subscribe
View Prices

Contract: Date; CAGE; Quantity; Net Price; Std Price
SPE4A623F285K: 14 Jul 2023; Subscribe; 97; Subscribe; Subscribe
SPE4A623F285K: 14 Jul 2023; Subscribe; 97; Subscribe; Subscribe
SPE4A623F9776: 17 Mar 2023; Subscribe; 66; Subscribe; Subscribe
SPE4A623F9776: 17 Mar 2023; Subscribe; 66; Subscribe; Subscribe
SPE4A623F7667: 17 Feb 2023; Subscribe; 94; Subscribe; Subscribe
SPE4A623F7667: 17 Feb 2023; Subscribe; 94; Subscribe; Subscribe
SPE4A722F021B: 22 Jun 2022; Subscribe; 164; Subscribe; Subscribe
SPE4A722F021B: 22 Jun 2022; Subscribe; 164; Subscribe; Subscribe
SPE4A722F0888: 07 Oct 2021; Subscribe; 164; Subscribe; Subscribe
SPE4A722F0888: 07 Oct 2021; Subscribe; 164; Subscribe; Subscribe
SPE4A619F7527: 21 Dec 2018; Subscribe; 164; Subscribe; Subscribe
SPE4A618F2619: 07 Nov 2017; Subscribe; 164; Subscribe; Subscribe
SPE4A617V0609: 13 Oct 2016; Subscribe; 350; Subscribe; Subscribe
SPE4A617P0271: 04 Oct 2016; Subscribe; 800; Subscribe; Subscribe
SPE4A617P0288: 04 Oct 2016; Subscribe; 604; Subscribe; Subscribe
SPE4A616M6312P00002: 29 Jan 2016; Subscribe; 497; Subscribe; Subscribe
SPE4A614MB870P00002: 02 Apr 2014; Subscribe; 219; Subscribe; Subscribe
SPE4A614M3555: 20 Nov 2013; Subscribe; 458; Subscribe; Subscribe

Contracting Technical Data File (CTDF) 6620-00-814-4770 October 2021

Criticality and Quality

Critical Item Code:
Flight Safety:
Life Support:
Certified Samples:
Serialization:
First Article Test (FAT):
Certificate of Quality Compliance:
Production Lot Testing:
Special Testing:
Qualified Products List (QPL):

Commercial Properties

Government Furnished Material:
Government Furnished Tooling:
Government Furnished Property:
Price Evaluation Code:
Diminshing Manufacturing Sources:
Warranty:
Commerical Off The Shelf (COTS):
End Item Application:
Auctioning Candidate:
Source of Procurement:
Contract Option:

Restrictions

Boeing Rights Guard:
Export Controlled:
Controlled Technical Data Package (TDP):
Restricted Technical Data Package (TDP):
Contains Classified Material
Weapons System Indicator Code (WSIC):: F

Packaging Requirements

Packaging Determination Table:
Packaging Review Code:
Special Packaging Instruction Number (SPIN):
Special Packaging Instruction Number Revision:
Special Packaging Instruction Number Date:
Pallet Reference Number Required:

Subscribe
View CTDF

Subscribe to View CTDF Details...

Product Information 6620-00-814-4770

Marketplace 6620-00-814-4770

Related Documents 6620-00-814-4770 5+ Documents (More...)

Restrictions 6620-00-814-4770

Import and Export 6620-00-814-4770

End Users 6620-00-814-4770

Approved Sources 6620-00-814-4770

Datasheet 6620-00-814-4770

Weapon Systems (WSDC) 6620-00-814-4770

DLA Procurement Analysis 6620-00-814-4770

Management Data 6620-00-814-4770

Army

Navy

Marine Corps

Similar Supply Items to 6620-00-814-4770

Freight Information 6620-00-814-4770

Packaging Data 6620-00-814-4770

Item Pack Level (Unpackaged)

Unit Pack Level (Packaged)

Intermediate Pack Level

Procurement History 6620-00-814-4770 18 Records

Contracting Technical Data File (CTDF) 6620-00-814-4770 October 2021

Criticality and Quality

Commercial Properties

Restrictions

Packaging Requirements
