Premium Information is available for this item - Upgrade for $1 a day
6620-00-515-4541

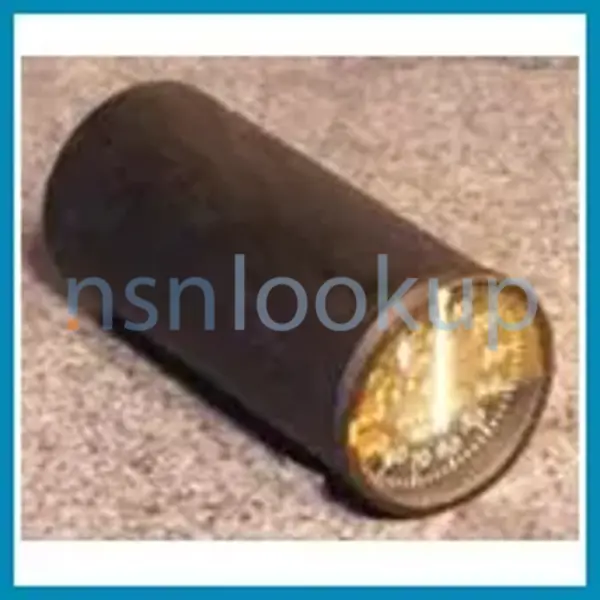

Electrical Tachometer Indicator
6620005154541 005154541 MIL-I-25623 MS28000-1 MU-1 8DJ43AAM 415540
An instrument which displays, in units of revolutions per minute, the transmitted rotational speed of a shaft for a specified elapsed time. View more Electrical Tachometer Indicator
Managed by United States
NSN Created on 1 Jan 1963
Data Last Changed
May 2023
May 2023
NATO Update Count
54
54
NATO Data Quality
Marketplace 6620-00-515-4541
Need Help?
Request a Quotation from participating marketplace vendors
Request a Quotation from participating marketplace vendors
MILI25623 INDICATOR,ELECTRICAL TACHOMETER 2 EA NS
MS28000-1 INDICATOR,ELECTRICAL TACHOMETER 1 EA NS
MU1 INDICATOR,ELECTRICAL TACHOMETER 1 EA NS
415540 INDICATOR,ELECTRICAL TACHOMETER 1 EA NS
Updated Every Day 6620-00-515-4541 RQST NE
Updated Every Day 6620-00-515-4541 RQST
Updated Every Day 6620-00-515-4541 RQST NE
Related Documents 6620-00-515-4541 5+ Documents (More...)
MIL-I-25623 MS28000-1 MU-1 8DJ43AAM 415540 An instrument which displays, in units of revolutions per
MS28000-1 INDICATOR,ELECTRICAL TACHOMETER 10 EA NS Request Quotation MU-1 INDICATOR,ELECTRICAL TACHOMETER
MS28000-1 INDICATOR,ELECTRICAL TACHOMETER 2 EA NS Request Quotation MU-1 INDICATOR,ELECTRICAL TACHOMETER
MS28000-1 INDICATOR,ELECTRICAL TACHOMETER 10 EA NS Request Quotation MU-1 INDICATOR,ELECTRICAL TACHOMETER
MS28000-1 INDICATOR,ELECTRICAL TACHOMETER 2 EA NS Request Quotation MU-1 INDICATOR,ELECTRICAL TACHOMETER
12-021-5964Electrical Tachometer Indicator6620120215964 120215964 Cancelled - Replaced by NSN 6620-00-515-4541
5964 5+ Documents ( More https/ 5966 5+ Documents https//www.nsnlookup.com /fsg-66/fsc-6620/us 6620-00-515-4541
Electrical Tachometer Indicator 005154541 Quotation MU-1 INDICATOR,ELECTRICAL TACHOMETER https/
5964 5+ Documents ( More https/ 5966 5+ Documents https//www.nsnlookup.com /fsg-66/fsc-6620/us 6620-00-515-4541
Electrical Tachometer Indicator 005154541 Quotation MU-1 INDICATOR,ELECTRICAL TACHOMETER https/
$1 a day Upgrade your Account Upgrade 4710-00-981-0460Turbin Housing Assy4710009810460 009810460 415540
$1 a day Upgrade your Account Upgrade 9390-01-590-8272Nonmetallic Channel9390015908272 015908272 415540
Electrical Tachometer Indicator 005154541 515-4541Electrical Tachometer Indicator6620005154541
$1 a day Upgrade your Account Upgrade 9390-01-590-8272Nonmetallic Channel9390015908272 015908272 415540
Electrical Tachometer Indicator 005154541 515-4541Electrical Tachometer Indicator6620005154541
9999-14-500-8959 is a Electrical Tachometer Indicator Similar Supply Items to 9999-14-500-8959 6620-00-515-4541
MU-1 3571261-8102 An instrument which displays, in units of revolutions per minute, the transmitted
MU-1 INDICATOR,ELECTRICAL TACHOMETER 3 EA NS Request Quotation Subscribe to View Vendor Details...
MU-1 INDICATOR,ELECTRICAL TACHOMETER 1 EA NS Request Quotation Updated Every Day 6620-01-157-9267 RQST
MU-1 INDICATOR,ELECTRICAL TACHOMETER 3 EA NS Request Quotation Subscribe to View Vendor Details...
MU-1 INDICATOR,ELECTRICAL TACHOMETER 1 EA NS Request Quotation Updated Every Day 6620-01-157-9267 RQST
Restrictions 6620-00-515-4541
IUID Required
6620-00-515-4541 is a Electrical Tachometer Indicator that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. The DCMO has forced the Demilization requirements for this item as the ICP has not collaborated. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 6620-00-515-4541
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 6620-00-515-4541
- US Coast Guard (C126)
- Effective Date:
- 1 Apr 1991
- US Air Force (FXX4)
- Effective Date:
- 1 Apr 1991
- US Navy (NAXS)
- Effective Date:
- 1 Apr 1991
- Supplementary Receivers:
- GG
- Brazil (YA01)
- Effective Date:
- 1 Sep 2000
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- Columbia (YC01)
- Effective Date:
- 1 Jul 2015
- Australia (ZA01)
- Effective Date:
- 1 Apr 1991
- Belgium (ZB01)
- Effective Date:
- 1 May 2000
- New Zealand (ZE01)
- Effective Date:
- 1 Aug 1999
- Germany (ZG01)
- Effective Date:
- 1 Nov 2011
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- United Kingdom (ZK01)
- Effective Date:
- 1 Apr 1991
- Philippines (ZM01)
- Effective Date:
- 1 Feb 2015
- Portugal (ZP01)
- Effective Date:
- 1 Apr 1991
- Denmark (ZS01)
- Effective Date:
- 1 Apr 1991
- Norway (ZT01)
- Effective Date:
- 1 Apr 1991
- Greece (ZU01)
- Effective Date:
- 1 Apr 1991
- Turkey (ZW01)
- Effective Date:
- 1 Nov 2005
- NATO Maintenance and Supply Agency (ZX01)
- Effective Date:
- 1 May 2012
Approved Sources 6620-00-515-4541
- Part Number
- Manufacturer
- Status
- 8DJ43AAM
- Manufacturer
- 97424 - Ametek Inc (Active)
- Primary Buy
- Primary Buy
- MIL-I-25623
- 81349 - Military Specifications (Active)
- Incomplete Standard
- Incomplete Standard
- MS28000-1
- 96906 - Military Standards (Active)
- Incomplete Standard
- Incomplete Standard
- MU-1
- 81349 - Military Specifications (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
- 415540
- 18705 - Rca Corp Rca Laboratories (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- 8DJ43AAM
- 24446 - General Electric Company (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 6620-00-515-4541
- Characteristic
- Specifications
- FIIG
- Specifications
- A532Q0
- Electrical Connection Identifying Number [ASKZ]
- Ms33678-10Sl-3P
- Electrical Connection Quantity [ASKX]
- 1
- End Item Identification [AGAV]
- Kc-135E, B52 And C-130 Acft
- Contact Quantity [AFRA]
- 3
- Contact Type [AKSF]
- Pin
- Current Type [ACDC]
- Ac
- Diameter [ABMZ]
- 2.000 Inches Nominal
- Individual Marking [ASKN]
- Percent Rpm
- Length [ABRY]
- 5.000 Inches Nominal
- Pointer Type [ASST]
- Indicating Single Pointer
- Presentation Type [AMNL]
- Dial
- Scale Range [APSK]
- +0.1/+110.0 Percent Revolutions Per Minute Single Indicator Single Scale
- Part Name Assigned By Controlling Agency [CXCY]
- Tachometer Indicator Assembly
- Special Features [FEAT]
- Indicator Includes Subdial Scale With Range 0 To 10% Rpm; The Major Scale Has Range 0 To 100% Rpm; Total Scale Range Of Indicator 0 To 110% Rpm; Hermetically Sealed Case Per Ms33639; Tach Designed For Use With A Two Pole Tach Generator Conforming To Mil-G-9398;Weight Approximately 1 Lb; Dial Is Screened With 100 Percent At 9 O'clock; Dull Black Background Per Fed-Std-595
- Supplementary Features [SUPP]
- Tech Orders 1C-135(K)-4 Fig 584 And 5E6-2-23-14
Management Data 6620-00-515-4541
- Effective Date
- Organization
- Unit of Issue
- Unit Price
- Qty Unit Pack
- Unit of Issue
- Oct 2022
- Department of the Navy (DN)
- EA
- Subscribe
- 1
- EA
- Oct 2021
- US Coast Guard (GP)
- EA
- Subscribe
- 1
- EA
- Oct 2020
- US Coast Guard (GP)
- EA
- Subscribe
- 1
- EA
- Oct 2019
- Department of the Air Force (DF)
- EA
- Subscribe
- 1
- EA
- MOE
- USC
- Code
- Statement
- Order of Use
- Jump To Code
- Qty Per Assy
- UOM
- Technical Document
- Quantative Expression
- Code
- Department of the Air Force (DF)
- L
- R
- Refer To Net Price 1123.62
- NET PRICE 1123.62
- R
- Department of the Navy (DN)
- N
- 3
- Reversal Of Phrase Code S 6620-00-557-3023
- 3
- Department of the Navy (DN)
- N
- J
- Interchangeable With 6620-00-526-5003
- J
- Department of the Navy (DN)
- N
- J
- Interchangeable With 6620-00-556-1976
- J
- Department of the Navy (DN)
- N
- J
- Interchangeable With 6620-00-969-3972
- J
- Department of the Navy (DN)
- N
- J
- Interchangeable With 6620-01-157-9266
- J
- Department of the Navy (DN)
- N
- J
- Interchangeable With 6620-00-621-0143
- J
- Department of the Navy (DN)
- N
- J
- Interchangeable With 6620-00-959-6614
- J
- Department of the Navy (DN)
- N
- R
- Refer To Net Price 760.00
- NET PRICE 760.00
- R
- US Coast Guard (GP)
- C
- R
- Refer To Net Price 1123.62
- NET PRICE 1123.62
- R
Navy
- Cognizance:
- 7R
- Bypass
- Special Material ID:
- FZ
- Special Projects (GFE)
- Issue, Repair, Requisition Restriction Code:
- AR
- Repairable item subject to centrally managed rework program at designated sites. Mandatory turn-in of item required except when initial issue or replacement of surveyed item is involved
- Special Material Content:
- 9
- Non-Hazardous or Non-Sensitive Item
Coast Guard
- Inventory Activity:
- A
- Appropriations Purchase Account item managed for the Coast Guard by the respective Inventory Control Point. An unfunded requisition is required
Similar Supply Items to 6620-00-515-4541
Freight Information 6620-00-515-4541
6620-00-515-4541 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 120800. A Sub NMFC of Z. It has a NMFC Description of ENGINES, INTERNAL COMBUSTION, NOI. 6620-00-515-4541 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. 6620-00-515-4541 is rated as class 100 when transported by Less-Than Carload (LCL) rail or ocean freight. It has a Uniform Freight Classification (UFC) number of 61410 which rates the freight between FCL and LCL. It has a Water Commodity Code (WCC) of 593 for ocean manifesting and military sealift. 6620-00-515-4541 is not classified as a special type of cargo when transported by water. 6620-00-515-4541 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 6620-00-515-4541
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- 5.0" H x 2.5" W x 2.5" L
- --
- --
- --
- --
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- 6.3" H x 6.3" W x 10.5" L
- --
- --
- --
- Any Suitable Process
- 6.3" H x 6.3" W x 10.5" L
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- --
- --
- --
- PPP-B-1672, Type I, Vertical Star Cushioning in Reusable Box
- Special requirements
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- --
- No Requirement
