6610-01-611-4034
Multiple Aircraft Parameters Display
6610016114034 016114034 822-2951-001
A display which presents a number of aircraft parameters, such as engine data (temperature, RPM, and the like), fuel status, navigation data, and the default display flight data. It receives data from a COMPUTER, MULTIPLE AIRCRAFT PARAMETERS. It is not able to control the aircraft. For indicators or displays/controls that are able to present navigational, flight data, autopilot data, engine parameters, information see CONTROL-DISPLAY UNIT, INDICATOR, MULTIPLE, ENGINE PARAMETERS. For indicators that display speed, attitude, altitude see DISPLAY UNIT, FLIGHT INFORMATION. View more Multiple Aircraft Parameters Display
September 2023
2
Product Information 6610-01-611-4034

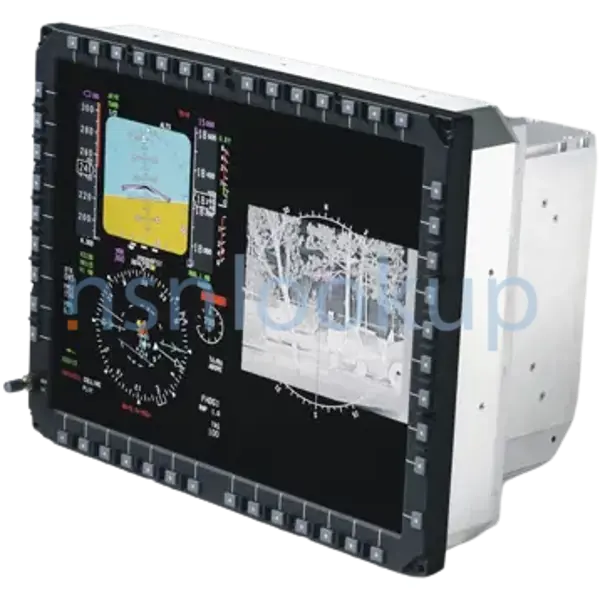

Model: MFD-2912
With the Collins Aerospace MFD-2912 multi-function display, you can view video and graphics on a stunning, SXGA+ resolution (1050 by 1400 pixels), high-performance Active Matrix Liquid Crystal Display (AMLCD).
The unit can display video data received via a display visual interface (DVI) or from optional fiber-optic Fibre Channel Audio Video (FC-AV) inputs. This color, flat-panel unit has a large display area (9 by 12 inches) and gives you a wide viewing angle (+50 degrees) for excellent cross-cockpit viewing.
A state-of-the-art Multi-domain Vertically Aligned (MVA) LCD provides high contrast over the viewing angle. The wide-dimming-range backlight that illuminates the AMLCD enables sunlight readability and night vision goggle compatibility. Application software is loadable via an Ethernet data bus.
Features & benefits
Large 9-by-12-inch active matrix liquid crystal display: Supports simultaneous display of both video and primary flight information
SXGA+ resolution (1050 by 1400 pixels): For demanding video and graphics applications
State-of-the-art MVA LCD: Provides high contrast over a wide viewing angle
Displays high-resolution digital video: Two DVI video channel inputs
Modular design with integrated 3D graphics generator
Graphics generator supports OpenGL
Dual PowerPC processor: Provides proven performance for the most demanding avionics applications
Support for multiple operating systems (VMOS, Wind River, Green Hills)
Dual independent 100 Base T Ethernet ports
Software is Ethernet bus-loadable without removal of the unit
Various control panel options or bezel keys
Wide dimming range (0.05 to 200fL) provided via highly reliable LED backlight
Night vision imaging system/night vision goggle compatible Class B (all colors)
Marketplace 6610-01-611-4034
Request a Quotation from participating marketplace vendors
Related Documents 6610-01-611-4034 5+ Documents (More...)
United States (US) 4. 6610-01-611-4034 Marketplace Restrictions Approved Sources Datasheet Management
/fsc-6610/us 6610-01-611-4034 Multiple Aircraft Parameters Display 822-2951-001 A display which presents
Restrictions 6610-01-611-4034
6610-01-611-4034 is a Multiple Aircraft Parameters Display that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is a US Munitions List or Commerce Control List Item which must be destroyed to prevent restoration or repair. Only authorized parties may possess this item. This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 6610-01-611-4034
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 6610-01-611-4034
- US Air Force (FXX4)
- Effective Date:
- 1 Sep 2012
Approved Sources 6610-01-611-4034
- Part Number
- Manufacturer
- Status
- 822-2951-001
- Manufacturer
- 0EFD0 - Rockwell Collins, Inc. (Active)
- Primary Buy
- Primary Buy
Datasheet 6610-01-611-4034
- Characteristic
- Specifications
- FIIG
- Specifications
- A506Z0
- Part Name Assigned By Controlling Agency [CXCY]
- Multifunctional Display Ai
Management Data 6610-01-611-4034
- Effective Date
- Organization
- Unit of Issue
- Unit Price
- Qty Unit Pack
- Unit of Issue
- Oct 2022
- Department of the Air Force (DF)
- EA
- Subscribe
- 1
- EA
- Oct 2021
- Department of the Air Force (DF)
- EA
- Subscribe
- 1
- EA
- Oct 2020
- Department of the Air Force (DF)
- EA
- Subscribe
- 1
- EA
- Oct 2019
- Department of the Air Force (DF)
- EA
- Subscribe
- 1
- EA
- MOE
- USC
- Code
- Statement
- Order of Use
- Jump To Code
- Qty Per Assy
- UOM
- Technical Document
- Quantative Expression
- Code
- Department of the Air Force (DF)
- L
- R
- Refer To Net Price 42851.60
- NET PRICE 42851.60
- R
Similar Supply Items to 6610-01-611-4034
Freight Information 6610-01-611-4034
6610-01-611-4034 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 011790. A Sub NMFC of Z. It has a NMFC Description of AIRCRAFT PARTS NOI. 6610-01-611-4034 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 04720 which rates the freight between FCL and LCL. 6610-01-611-4034 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 671 for ocean manifesting and military sealift. 6610-01-611-4034 is not classified as a special type of cargo when transported by water. 6610-01-611-4034 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
