6605-01-344-5803

Horizontal Situation Indicator

6605013445803 013445803 165840-1 165841-1

A panel mounted aircraft instrument which provides, on a single display, navigational information, such as the magnetic heading, heading selection, course selection, course deviation, bearing, and distance of a selected navigational facility. Knob(s) are located on the face for inputing selected course and/or heading data. View more Horizontal Situation Indicator

Managed by United States

NSN Created on 31 Aug 1991

Data Last Changed
January 2023

NATO Update Count
15

NATO Data Quality

ANRL Style 9 for 6605-01-344-5803 1/1 — NSN 6605-01-344-5803 (Identification) 1/1

Marketplace 6605-01-344-5803

Need Help?
Request a Quotation from participating marketplace vendors

Subscribe to View Vendor Details...

16584-01 INDICATOR,HORIZONTAL SITUATION 3 EA NS

Updated Every Day

6605-01-344-5803 RQST NE

Restrictions 6605-01-344-5803

6605-01-344-5803 is a Horizontal Situation Indicator that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is a US Munitions List or Commerce Control List Item which must be destroyed to prevent restoration or repair. Only authorized parties may possess this item. This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.

Import and Export 6605-01-344-5803

Schedule B: Subscribe to View Schedule B
HTS Code: Subscribe to View HTS Code

Approved Sources 6605-01-344-5803

Part Number
Manufacturer
Status
165840-1: 10138 - Astronautics Corporation Of America (Active); Primary Buy; RNCC 3 RNVC 2 DAC 2
165841-1: 10138 - Astronautics Corporation Of America (Active); Informational Drawing; RNCC D RNVC 9 DAC 5

Datasheet 6605-01-344-5803

Characteristic
Specifications
FIIG: A533B0
Electrical Connection Identifying Number [ASKZ]: Ms27476y16d-55Pn
Electrical Connection Quantity [ASKX]: 1
Center To Center Distance Between Mounting Facilities Parallel To Length [ABKQ]: 4.500 Inches Nominal
Center To Center Distance Between Mounting Facilities Parallel To Width [ABKR]: 3.750 Inches Nominal
Depth [AEJZ]: 8.001 Inches Minimum And 8.125 Inches Maximum
Display Digit Quantity [BFQP]: 3
Height [HGTH]: 4.250 Inches Nominal

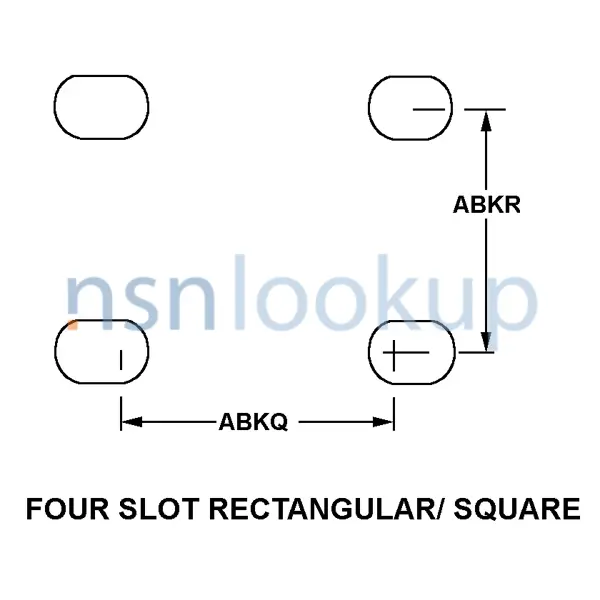

Mounting Arrangement Style [ANRL]: Four Slot Rectangular/Square
Mounting Facility Type And Quantity [AXHR]: 1 Bezel And 1 Panel
Mounting Hole Diameter [ABTB]: 0.204 Inches Nominal
Individual Marking [ASKN]: Dial Markings;Background Of Bearing Pointers And Indices;Miles And Course Display;Numeral Lubber Line;Course Dots;Course Arrow;Course Bar;To-From Arrow;Heading Sellect Marker;Airplane Symbol
Knob Purpose [CQSG]: Course Set
Knob Quantity [ASSK]: 2
Presentation Type [AMNL]: Drum Dial And Drop Flags
Special Features [FEAT]: Also Presentation Type: Register
Usage Design [ALBY]: Heading And Position
