6540-00-388-3600

Visual Acuity Test Projector

6540003883600 003883600 11082B 12096

A device used to project a vision acuity test chart on a screen, for eye refraction procedures. View more Visual Acuity Test Projector

Managed by United States

NSN Created on 1 Jan 1963

Data Last Changed
May 2023

NATO Update Count
9

NATO Data Quality

AEWT Style D8 for 6540-00-388-3600 1/2 — NSN 6540-00-388-3600 (Identification) 1/2

AEWV Style E8 for 6540-00-388-3600 2/2 — NSN 6540-00-388-3600 (Identification) 2/2

Marketplace 6540-00-388-3600

Need Help?
Request a Quotation from participating marketplace vendors

Subscribe to View Vendor Details...

12096 PROJECTOR,VISUAL ACUITY TEST 3 EA NS

Subscribe to View Vendor Details...

12096 PROJECTOR,VISUAL ACUITY TEST 14 EA NS

Subscribe to View Vendor Details...

12096 PROJECTOR,VISUAL ACUITY TEST 8 EA NS

Updated Every Day

6540-00-388-3600 RQST NE

Updated Every Day

6540-00-388-3600 RQST

Updated Every Day

6540-00-388-3600 RQST NE

Restrictions 6540-00-388-3600

IUID Required

6540-00-388-3600 is a Visual Acuity Test Projector that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.

Import and Export 6540-00-388-3600

Schedule B: Subscribe to View Schedule B
HTS Code: Subscribe to View HTS Code

End Users 6540-00-388-3600

US Army (A911)
Effective Date:: 1 Dec 2006
Former MOE Rule:: A111; AMC 3 AMSC Z

US Air Force (FSGM)
Effective Date:: 1 Dec 2006
Former MOE Rule:: FSKX; AMC 3 AMSC Z

US Marine Corps (MC55)
Effective Date:: 1 Dec 2006
Former MOE Rule:: MC15; AMC 3 AMSC Z

US Navy (N9BL)
Effective Date:: 1 Dec 2006
Former MOE Rule:: N9LM
Supplementary Collaborators:: GTHD; AMC 3 AMSC Z

Republic of Korea (ZH01)
Effective Date:: 1 Apr 1991

Turkey (ZW01)
Effective Date:: 1 Oct 2009

Approved Sources 6540-00-388-3600

Part Number
Manufacturer
Status
11082B: 0R125 - Leica Microsystems Inc. Dba (Active); Primary Buy; RNCC 3 RNVC 2 DAC 4
12096: 0R125 - Leica Microsystems Inc. Dba (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 4

Datasheet 6540-00-388-3600

Characteristic
Specifications
FIIG: T146-J
Accessory Components And Quantity [AKYD]: Lamps 2; Cable Assembly,9 Ft Lg 1
Current Rating In Amps [AMPS]: 4.540
Current Type [ACDC]: Ac/Dc

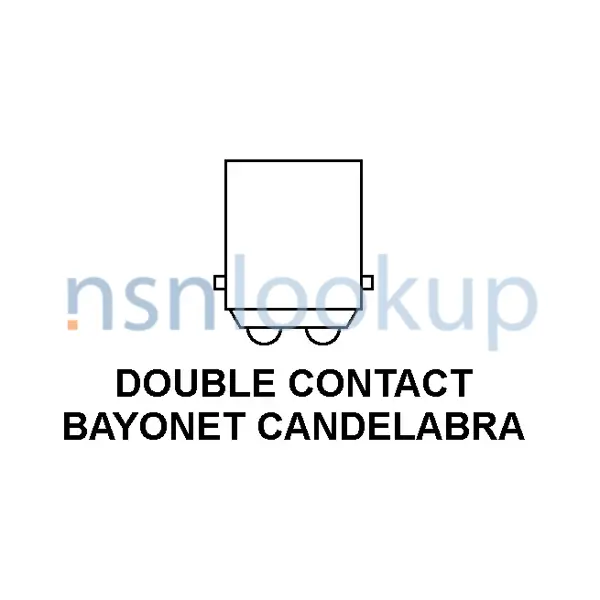

Lamp Base Style [AEWV]: Double Contact Bayonet Candelabra

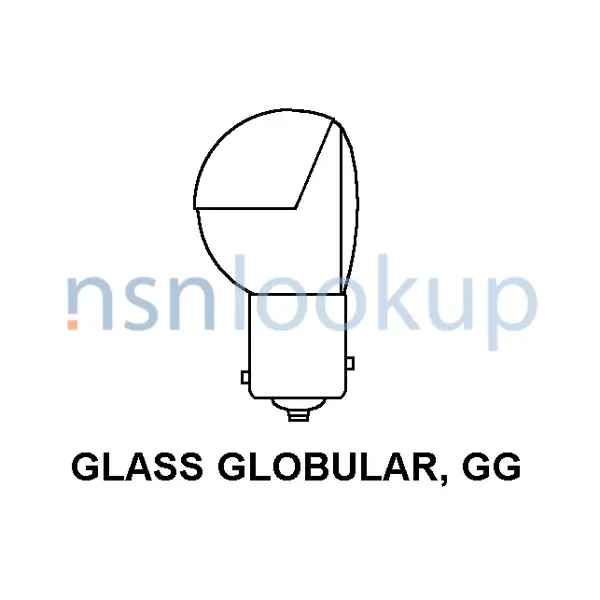

Lamp Bulb Shape Style [AEWT]: Glass Globular, Gg
Lamp Bulb Size Designator [AEWU]: 8
Lamp Luminosity In Lumens [ATZQ]: 810.0
Lamp Transparency [AEWZ]: Clear
Lamp Quantity [AEWR]: 1
Lamp Voltage Rating In Volts [AEWX]: 110.0
Lamp Wattage Rating In Watts [AEWS]: 50.000
Lampholder Quantity [AHGF]: 1
Light Control Method [CKXC]: Any Acceptable
Projection Slide Quantity [CKXB]: 2
Screen Shape [CKXD]: Square
Part Name Assigned By Controlling Agency [CXCY]: Projector Visual Acuity Test 120 Volt Ac/Dc 50 Watts
Special Features [FEAT]: On Floor Stand;W/Slides And Wall Mounted Screen; For Projection Screen,Order 6540-01-032-1323; For Replacement Lamp,Order 6240-00-797-9250; Accommodates Projector Slide 6540-01-078-9247 And 6540-01-078-9248; For Projecting Test Objects And Characters For Eye Refraction Procedures; W/Floor Stand, P/N 11275B
Stand Overall Height [CHQW]: 40.000 Inches Minimum And 44.000 Inches Maximum
Stand [BJWB]: Included

Subscribe
View Data

DLA Procurement Analysis 6540-00-388-3600

DLA Administrative Lead Time:: Subscribe
DLA Production Lead Time:: Subscribe

Subscribe to View DLA Inventory and Forecast...

Management Data 6540-00-388-3600

Subscribe
View Prices

Effective Date: Organization; Unit of Issue; Unit Price; Qty Unit Pack
Oct 2022: Defense Logistics Agency (DS); EA; Subscribe; 1
Oct 2021: Department of the Army (DA); EA; Subscribe; 1
Oct 2020: Department of the Army (DA); EA; Subscribe; 1
Oct 2019: Department of the Army (DA); EA; Subscribe; 1

Army

Materiel Category and Inventory Manager:

C: Medical/Dental Materiel

Appropriation and Budget Activity:

2: Stock Fund Secondary Items

Management Inventory Segment:

1: Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify serviceable or unserviceable items of a durable nature, which when unserviceable normally can be repaired economically by depots or lower echelons of maintenance.

Weapons System / End Item / Homogeneous Group:

03: DLA/GSA Material
Not Potency Dated

Accounting Requirements:

N: Nonexpendable item.An item of Army property coded with an ARC of N in the AMDF.Nonexpendable items require property book accountability after issue from the stock record account.Commercial and fabricated items similar to items coded N in the AMDF are considered nonexpendable items.

Navy

Cognizance:

9B: Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg

Special Material Content:

A: Medical

Marine Corps

Stores Account:

1: Stock Fund Account Item

Combat Essentiality:

2: Non-Critical Repair Part

Echelon Management:

B2

Operational Test:

: No Special Procedures

NATO Stock Numbers Related to 6540-00-388-3600

6540-14-449-7740 6540-01-645-9934 6540-26-300-6430 6540-00-388-3600 6540-01-577-1060 6540-00-443-5864 6540-27-008-1792 6540-12-371-4284 6540-01-509-0275 6540-33-004-0649 6540-27-039-6483 6540-26-300-6434 6540-01-643-3925 6540-21-890-0691 6540-27-014-5007 6540-12-382-9636 6540-12-342-4437 6540-21-894-2423

Freight Information 6540-00-388-3600

6540-00-388-3600 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 058110. A Sub NMFC of X. It has a NMFC Description of OPTICAL GOODS OR INSTRUMENTS NOI. 6540-00-388-3600 is rated as class 200 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 33110 which rates the freight between FCL and LCL. 6540-00-388-3600 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 744 for ocean manifesting and military sealift. 6540-00-388-3600 is not classified as a special type of cargo when transported by water. 6540-00-388-3600 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.

Packaging Data 6540-00-388-3600

Responsible Activity
Packaging Data Source: Primary Inventory Control Activity (PICA); --

Item Pack Level (Unpackaged)

Item Size
Item Weight
Characteristics
Weight/Dimensions Category
Fragility
Item Preservation: --; --; --; Over 10lb; Less than 85G; Special Requirement

Unit Pack Level (Packaged)

Quantity per Pack
Unit Size
Unit Weight
Unit Cube
Preservation Method
Cleaning/Drying: 1; --; --; --; --; Special Requirements

Preservation Material
Wrapping Material
Cushioning/Dunnage
Cushioning Thickness
Container
Special Marking: Special Requirement; Special Requirements – see Specific Instructions or Drawings provided; Special Requirements. See Specific Instructions or Drawings Provided; Special Requirements. See Specific Instructions or Drawings Provided; Special requirement – See specific instructions or drawings provided; Special requirements

Intermediate Pack Level

Quantity of Unit Packs
Container: Special Requirement - see Specific Drawing or Instruction provided; Special requirement – See specific instructions or drawings provided

Contracting Technical Data File (CTDF) 6540-00-388-3600 October 2021

Criticality and Quality

Critical Item Code:
Flight Safety:
Life Support:
Certified Samples:
Serialization:
First Article Test (FAT):
Certificate of Quality Compliance:
Production Lot Testing:
Special Testing:
Qualified Products List (QPL):

Commercial Properties

Government Furnished Material:
Government Furnished Tooling:
Government Furnished Property:
Price Evaluation Code:
Diminshing Manufacturing Sources:
Warranty:
Commerical Off The Shelf (COTS):
End Item Application:
Auctioning Candidate:
Source of Procurement:
Contract Option:

Restrictions

Boeing Rights Guard:
Export Controlled:
Controlled Technical Data Package (TDP):
Restricted Technical Data Package (TDP):
Contains Classified Material
Weapons System Indicator Code (WSIC):: N

Packaging Requirements

Packaging Determination Table:
Packaging Review Code:
Special Packaging Instruction Number (SPIN):
Special Packaging Instruction Number Revision:
Special Packaging Instruction Number Date:
Pallet Reference Number Required:

Subscribe
View CTDF

Subscribe to View CTDF Details...
