6515-01-446-3933
Bone Screw
6515014463933 014463933 99-0670 206.028
A cylindrical rod incised with one or more helical or advancing spiral threads with smooth surfaces free from nicks, dents, burrs, and scratches suitable for use in orthopedic surgery and fabricated from implant-quality corrosion resisting material which is inert and biocompatible with human bones, tissues and internal chemistry. View more Bone Screw
August 2023
14
Marketplace 6515-01-446-3933
Request a Quotation from participating marketplace vendors
Related Documents 6515-01-446-3933 5+ Documents (More...)
6515-01-446-3933 5+ Documents ( More... ) https//www.nsnlookup.com /fsg-65/fsc-6515/us 6515-01-446-3933
5+ Bone Screw 6515014463933 Bone Screw 6515014463933 014463933,99-0670 NSN 6515-01-446-3933 (Identification
-7627 Bone Screw 6515992117627 992117627,206.28 https//www.nsnlookup.com /fsg-65/fsc-6515/us 6515-01-446-3933
Bone Screw 6515014463933 014463933,99-0670 for $1 a day Upgrade your Account Upgrade 6515-01-446
Bone Screw 6515014463933 014463933,99-0670 (Identification) 1/2 NSN 6515-01-446-3933 (Identification
RQST NE Updated Every Day 6515-01-446-3933 RQST Updated Every Day 6515-01-446-3933 RQST NE Related Documents
Bone Screw 6515014463933 014463933,99-0670 Identification) 1/2 NSN 6515-01-446-3933 (Identification
Navy (DN)NZDiscontinued-Use 6515-01-446-3933Defense Logistics Agency (DS)IZDiscontinued-Use 6515-01-446-3933
Bone Screw 6515014463933 014463933,99-0670 Bone Screw 6515992117627 992117627,206.28 enable https
8460660119670 660119670,2613 browser . 8460-66-013-1931Locker https 8460660119670 https Bone Screw 6515014463933
Restrictions 6515-01-446-3933
6515-01-446-3933 is a Bone Screw that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 6515-01-446-3933
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 6515-01-446-3933
- US Army (A911)
- Effective Date:
- 1 Dec 2006
- Former MOE Rule:
- A111
- US Air Force (FSGM)
- Effective Date:
- 1 Dec 2006
- Former MOE Rule:
- FSKX
- US Navy (N9BL)
- Effective Date:
- 1 Dec 2006
- Former MOE Rule:
- N9LM
- Supplementary Collaborators:
- GT
- Belgium (ZB01)
- Effective Date:
- 13 Mar 2012
- France (ZF01)
- Effective Date:
- 1 Aug 2011
- Portugal (ZP01)
- Effective Date:
- 1 Sep 2005
- Denmark (ZS01)
- Effective Date:
- 1 Jul 1997
- Norway (ZT01)
- Effective Date:
- 1 Oct 2013
Approved Sources 6515-01-446-3933
- Part Number
- Manufacturer
- Status
- 206.028
- Manufacturer
- 63075 - Depuy Synthes Sales Inc (Active)
- Primary Buy
- Primary Buy
- 99-0670
- 89875 - Defense Logistics Agency Directorate (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
- 206.028
- F9200 - Johnson Johnson Medical Sas (Active)
- Secondary Buy
- Secondary Buy
- 206.028
- B1764 - Johnson & Johnson Medical (Active)
- Secondary Buy
- Secondary Buy
- 206.028
- F8642 - Depuy France (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- 206.028
- FAS37 - Synthes (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 6515-01-446-3933
- Characteristic
- Specifications
- FIIG
- Specifications
- T133-M
- Thread Direction [AAJF]
- Right-Hand
- Outside Thread Diameter [AXNB]
- 4.0 Millimeters Nominal
- Material And Location [ANNQ]
- Steel, Corrosion Resisting Overall
- Head Style [AASK]
- Fillister Countersunk
- Length [ABRY]
- 28.0 Millimeters Nominal

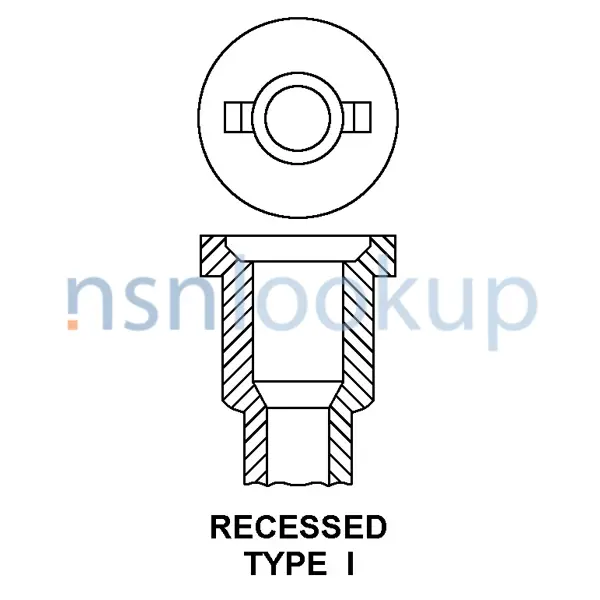

- Recessed Drive Style [BZGF]
- Recessed Type 1
- Special Features [FEAT]
- Cancellous; Spherical Head, Hexagonal Socket; Component Of Small Bone Fragment Set, Nsn: 6515-01-385-6088
- Part Name Assigned By Controlling Agency [CXCY]
- Screw Bone Cancellous Right Handed 28Mm Lgth 4Mm Diam. C6 Socket
DLA Procurement Analysis 6515-01-446-3933
Management Data 6515-01-446-3933
Army
- Materiel Category and Inventory Manager:
- C
- Medical/Dental Materiel
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 03
- DLA/GSA Material
Not Potency Dated
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
- Special Material Content:
- A
- Medical
NATO Stock Numbers Related to 6515-01-446-3933
Freight Information 6515-01-446-3933
6515-01-446-3933 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 056680. A Sub NMFC of X. It has a NMFC Description of DENTAL/MEDICAL/SURG INST R MACHINE. 6515-01-446-3933 is rated as class 150 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 32570 which rates the freight between FCL and LCL. 6515-01-446-3933 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 534 for ocean manifesting and military sealift. 6515-01-446-3933 is not classified as a special type of cargo when transported by water. 6515-01-446-3933 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Contracting Technical Data File (CTDF) 6515-01-446-3933 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- N
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
