6515-01-416-9118
Cardiovascular Catheter
6515014169118 014169118 T5.0-35-100-P-NS-VAD2
A disposable item designed to be used either intra-arterially and/or intravenously for delivering radiopaque media to selected sites in the vascular system as in angiography. View more Cardiovascular Catheter
June 2023
5
Marketplace 6515-01-416-9118
Request a Quotation from participating marketplace vendors
Related Documents 6515-01-416-9118 1+ Documents (More...)
6515-01-416-9118 1+ Documents ( More... ) https//www.nsnlookup.com /fsg-65/fsc-6515/us 6515-01-416-9118
Cardiovascular Catheter 6515014169118 6515-01-416-9118 1+ Documents ( More... ) https//www.nsnlookup.com
Restrictions 6515-01-416-9118
6515-01-416-9118 is a Cardiovascular Catheter that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 6515-01-416-9118
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 6515-01-416-9118
- MOE Rule:
- V540
- Effective Date:
- 1 Jul 1995
- United Kingdom (ZK01)
- Effective Date:
- 1 Apr 1999
Approved Sources 6515-01-416-9118
- Part Number
- Manufacturer
- Status
- T5.0-35-100-P-NS-VAD2
- Manufacturer
- 29317 - Cook Incorporated (Obsolete)
- Original Design
- Original Design
- T5.0-35-100-P-NS-VAD2
- K5F35 - Cook (Uk) Ltd (Active)
- Secondary Buy
- Secondary Buy
Datasheet 6515-01-416-9118
- Characteristic
- Specifications
- FIIG
- Specifications
- A22100

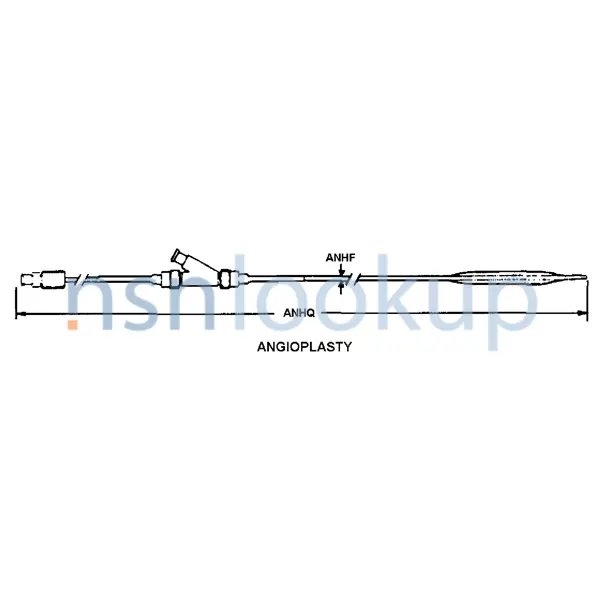

- Catheter Nominal Length [ANHQ]
- 100.0 Centimeters
- Design Designation [ANEH]
- Van Andel
- Features Provided [CBBL]
- Disposable And Sterile And X-Ray Opacity
- Nominal Diameter [ANHF]
- 5.000 French
- Inside Diameter [AARX]
- 1.7 Millimeters Nominal
- Material And Location [ANNQ]
- Plastic, Polytetrafluoroethylene Catheter
- Special Features [FEAT]
- 2 Cm Long Tip; No Side Ports; 35 Mm Outside Diameter Wire Guide; For Use In Dilatation Of Superficial Iliac, Femoral, And Popliteal Arteries
- Tip Type [ANFG]
- Tapered
- Style Designator [STYL]
- Angioplasty
Similar Supply Items to 6515-01-416-9118
Freight Information 6515-01-416-9118
6515-01-416-9118 has freight characteristics.. 6515-01-416-9118 has a variance between NMFC and UFC when transported by rail and the description should be consulted.
