6250-00-283-9204
Lampholder
6250002839204 002839204 W-L-142 WL142 TYPE I-H2 178
An electric fitting primarily designed to electrically and mechanically accommodate a lamp. It may include an integral switch, transformer, or dropping resistor, provided these items control the lamp only. It does not include a shade, lens, reflector, or other item for modifying illumination. For items designed to mount on a CONDUIT OUTLET, or JUNCTION BOX; see FIXTURE, LIGHTING. View more Lampholder
November 2023
5
Marketplace 6250-00-283-9204
Request a Quotation from participating marketplace vendors
Related Documents 6250-00-283-9204 5+ Documents (More...)
W-L-142 LAMPHOLDER 14 EA NS Request Quotation Subscribe to View Vendor Details...
W-L-142 LAMPHOLDER 70 EA NS Request Quotation Updated Every Day 6250-00-283-9204 RQST NE Updated Every
Lampholder 6250002839204 002839204,W-L-142 Upgrade your Account Upgrade 6250-00-283-9204Lampholder6250002839204
002839204 W-L-142 WL142 TYPE I-H2 https//www.nsnlookup.com /fsg-61/fsc-6110/us 6110-01-502-7283 Motor
W-L-142 LAMPHOLDER 14 EA NS Request Quotation 4104 LAMPHOLDER 54 EA NS Request Quotation Subscribe to
W-L-142 LAMPHOLDER 70 EA NS Request Quotation Updated Every Day 6250-00-519-0443 RQST NE Updated Every
W-L-142 LAMPHOLDER 70 EA NS Request Quotation Updated Every Day 6250-00-153-6467 RQST NE Updated Every
Lampholder 6250001536468001536468,W-L-142 WL142WL142 TYPE IIIP-C7 An electric fitting primarily WL142
W-L-142 LAMPHOLDER 14 EA NS Request Quotation Subscribe to View Vendor Details...
W-L-142 LAMPHOLDER 166 EA NS Request Quotation Subscribe to View Vendor Details...
Restrictions 6250-00-283-9204
6250-00-283-9204 is a Lampholder that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 6250-00-283-9204
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 6250-00-283-9204
- US Army (A920)
- Effective Date:
- 1 May 2006
- Former MOE Rule:
- A186
- Supplementary Receivers:
- AZCE
Approved Sources 6250-00-283-9204
- Part Number
- Manufacturer
- Status
- WL142 TYPE I-H2
- Manufacturer
- 81348 - Federal Specifications Promulgated (Active)
- Definitive Standard
- Definitive Standard
- W-L-142
- 81348 - Federal Specifications Promulgated (Active)
- Incomplete Standard
- Incomplete Standard
- 178
- 75582 - Leviton Manufacturing Co., Inc. (Obsolete)
- Transferred
- Transferred
Datasheet 6250-00-283-9204
- Characteristic
- Specifications
- FIIG
- Specifications
- A09400
- Accessory Mounting Provision [AEUU]
- Groove
- Body Material [AAFZ]
- Ceramic
- Hazardous Locations/Environmental Protection [ABFE]
- Not Rated
- Mounting Device Quantity [ACUP]
- 2
- Mounting Feature Type [AHGJ]
- Surface
- Mounting Method [ADJH]
- Unthreaded Holes
- Nondefinitive Spec/Std Data [ZZZT]
- I-2 Type
- Lamp Base Type Accommodated [AEUJ]
- Medium Screw
- Shell Material [AEUG]
- Any Acceptable
- Voltage In Volts [ELEC]
- 250.0
- Wattage Rating In Watts [ABJL]
- 660.0

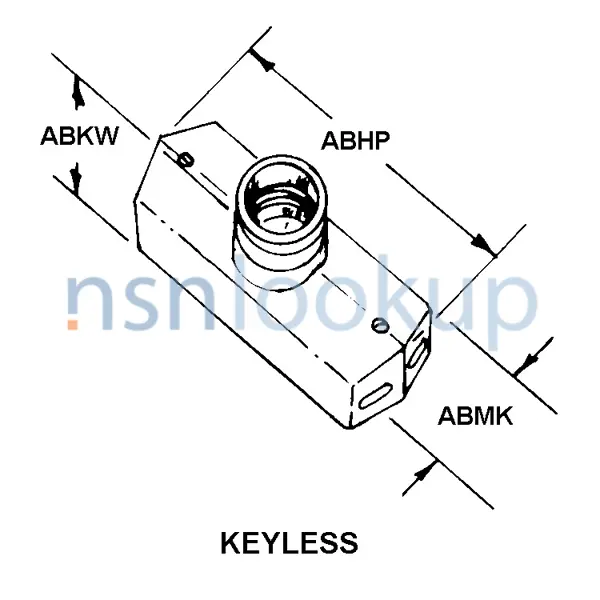

- Style Designator [STYL]
- Key Less
- Terminal Quantity [AARA]
- 2
- Terminal Type [AARB]
- Screw
DLA Procurement Analysis 6250-00-283-9204
Management Data 6250-00-283-9204
- Effective Date
- Organization
- Unit of Issue
- Unit Price
- Qty Unit Pack
- Unit of Issue
- Oct 2022
- Department of the Army (DA)
- EA
- Subscribe
- 1
- EA
- Oct 2021
- Department of the Navy (DN)
- EA
- Subscribe
- 1
- EA
- Oct 2020
- Department of the Army (DA)
- EA
- Subscribe
- 1
- EA
- Aug 2020
- Department of the Navy (DN)
- EA
- Subscribe
- 1
- EA
- Oct 2019
- Department of the Army (DA)
- EA
- Subscribe
- 1
- EA
Army
- Materiel Category and Inventory Manager:
- J
- Ground Forces Support Materiel (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
NATO Stock Numbers Related to 6250-00-283-9204
Freight Information 6250-00-283-9204
6250-00-283-9204 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 109700. A Sub NMFC of Z. It has a NMFC Description of LAMP OR LIGHTING FIXTURES. 6250-00-283-9204 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 55690 which rates the freight between FCL and LCL. 6250-00-283-9204 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 761 for ocean manifesting and military sealift. 6250-00-283-9204 is not classified as a special type of cargo when transported by water. 6250-00-283-9204 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Contracting Technical Data File (CTDF) 6250-00-283-9204 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- N
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
