6240-01-616-2363
Incandescent Lamp
6240016162363 016162363 LMP 9C195 PC195
An item whose principal purpose is to produce light from a glowing filament(s). It includes metal backed and reflecting types, seal beam and flood types. It may include an integral filament shield to control and/or modify its illumination pattern. View more Incandescent Lamp
November 2023
4
Marketplace 6240-01-616-2363
Request a Quotation from participating marketplace vendors
Related Documents 6240-01-616-2363 5+ Documents (More...)
RQST NE Updated Every Day 6240-01-616-2363 RQST Updated Every Day 6240-01-616-2363 RQST NE Related Documents
6240-01-616-2363 5+ Documents ( More... ) https//www.nsnlookup.com /fsg-62/fsc-6240/us 6240-01-616-2363
More... ) https//www.nsnlookup.com /fsg-81/fsc-8145/uk 8145-99-660-56878145996605687 996605687,14MU/PC195
Incandescent Lamp 6240016162363 016162363 www.nsnlookup.com /fsg-62/fsc-6240/us 6240-01-616-2363
3040/us 3040-01-568-6575 Rigid Connecting Link 3040015686575015686575 803-6397269 ASSY G-2803-6397268 PC195
Incandescent Lamp 6240016162363 016162363 www.nsnlookup.com /fsg-62/fsc-6240/us 6240-01-616-2363
Documents 5910-01-508-9811 2+ Documents ( More... https//www.nsnlookup.com /fsg-62/fsc-6240/us 6240-01-616-2363
Incandescent Lamp 6240016162363 016162363 www.nsnlookup.com /fsg-62/fsc-6240/us 6240-01-616-2363
-7040-8001 2712726 FIND 25VN PC195-7040-8001VN PC195-7040 SHT. 3 218Z-5285-503AT 2712726 An item designed
Incandescent Lamp 6240016162363 016162363 www.nsnlookup.com /fsg-62/fsc-6240/us 6240-01-616-2363
Restrictions 6240-01-616-2363
6240-01-616-2363 is a Incandescent Lamp that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.
Import and Export 6240-01-616-2363
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 6240-01-616-2363
- US Marine Corps (MC47)
- Effective Date:
- 1 Feb 2013
Approved Sources 6240-01-616-2363
- Part Number
- Manufacturer
- Status
- LMP 9C195
- Manufacturer
- 09FG3 - Napa Auto Parts (Active)
- Primary Buy
- Primary Buy
- PC195
- 94988 - Cooper Industries Inc Champion (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 6240-01-616-2363
- Characteristic
- Specifications
- FIIG
- Specifications
- A07900
- Average Life Rating In Hours [AFSV]
- 12000.0

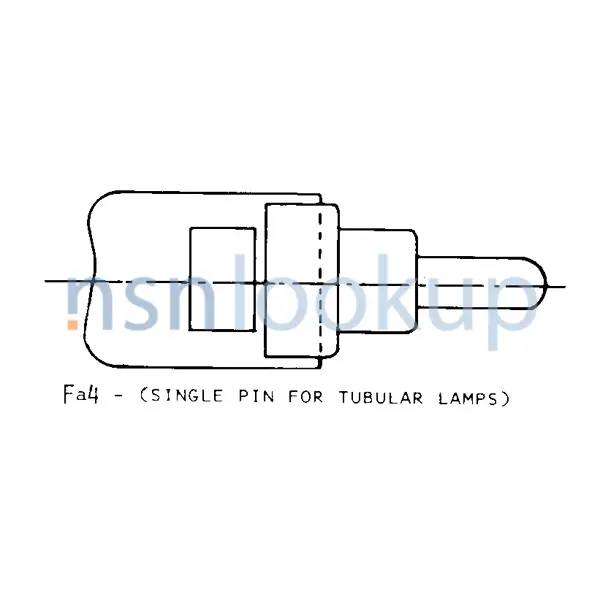

- Base Style [CRPS]
- Fa4 - (Single Pin For Tubular Lamps)
- Bulb Designator [CSJW]
- T3
- Bulb Diameter [AEVV]
- 0.4062 Inches Nominal
- Bulb Light Transmission Characteristic [CSMC]
- Transparent
- Bulb Style [CRSK]
- B (Arbitrary Designation)
- Filament Designation [AFSP]
- C2f
- Filament Heavy Duty Service Rating [AFSX]
- Not Rated
- End Item Identification [AGAV]
- Mrap Buffalo Mk2a2
- Light Output Rating [AFST]
- 1.8 Beam Candlepower Maximum Single Rating
- Rated Average Life [CWBF]
- Hours
- Overall Length [ABHP]
- 1.11 Inches Nominal
- Voltage Rating [AMSE]
- 0.27 Volts Nominal
- Wattage Rating [BDWW]
- 3.78 Watts
Weapon Systems (WSDC) 6240-01-616-2363
DLA Procurement Analysis 6240-01-616-2363
- Last Stock Position:
- 25 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 6240-01-616-2363
Marine Corps
- Stores Account:
- 1
- Stock Fund Account Item
- Combat Essentiality:
- 5
- Critical Repair Part to a Combat Essential End Item
- Echelon Management:
- B2
- Operational Test:
- No Special Procedures
- Physical Category:
- 1
- Bin
Similar Supply Items to 6240-01-616-2363
Freight Information 6240-01-616-2363
6240-01-616-2363 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 109550. A Sub NMFC of X. It has a NMFC Description of LAMPS(BULBS) ELEC INCANDESCENT NOI. 6240-01-616-2363 is rated as class 150 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 55910 which rates the freight between FCL and LCL. 6240-01-616-2363 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 761 for ocean manifesting and military sealift. 6240-01-616-2363 is not classified as a special type of cargo when transported by water. 6240-01-616-2363 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 6240-01-616-2363
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- --
- --
- --
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- --
- --
- --
- --
- --
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- MIL-DTL-17667, Neutral Wrapping Paper
- No Requirement
- Not Applicable
- --
- No special marking
- MIL-DTL-17667, Neutral Wrapping Paper
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
Procurement History 6240-01-616-2363 1 Records
Contracting Technical Data File (CTDF) 6240-01-616-2363 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- F
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
