6240-01-358-3729
Incandescent Lamp
6240013583729 013583729 811 EFP283
An item whose principal purpose is to produce light from a glowing filament(s). It includes metal backed and reflecting types, seal beam and flood types. It may include an integral filament shield to control and/or modify its illumination pattern. View more Incandescent Lamp
August 2023
8
Marketplace 6240-01-358-3729
Request a Quotation from participating marketplace vendors
Related Documents 6240-01-358-3729 2+ Documents (More...)
to View Vendor Details... 811 LAMP,INCANDESCENT 67 BX NS Request Quotation 811 LAMP,INCANDESCENT 67
Day 6240-01-358-3729 RQST NE Updated Every Day 6240-01-358-3729 RQST Updated Every Day 6240-01-358-3729
Restrictions 6240-01-358-3729
6240-01-358-3729 is a Incandescent Lamp that does not have a nuclear hardened feature, but does have another critical feature or features such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.
Import and Export 6240-01-358-3729
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 6240-01-358-3729
- US Coast Guard (C918)
- Effective Date:
- 1 May 2006
- Former MOE Rule:
- C003
- US Air Force (FXGI)
- Effective Date:
- 1 May 2006
- US Navy (N9BZ)
- Effective Date:
- 1 Dec 2013
- Supplementary Collaborators:
- GG
Approved Sources 6240-01-358-3729
- Part Number
- Manufacturer
- Status
- 811
- Manufacturer
- 06RZ4 - Duro-Test Lighting (Active)
- Primary Buy
- Primary Buy
- EFP283
- 0E5S2 - Ltg, Ltd. (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- 811
- 85271 - Duro-Test Corp (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 6240-01-358-3729
- Characteristic
- Specifications
- FIIG
- Specifications
- A07900
- Emitted Light Characteristic [AGDV]
- White
- Average Life Rating In Hours [AFSV]
- 9000.0
- Base Style [CRPS]
- Medium Screw
- Bulb Designator [CSJW]
- Er-30
- Bulb Light Transmission Characteristic [CSMC]
- Translucent

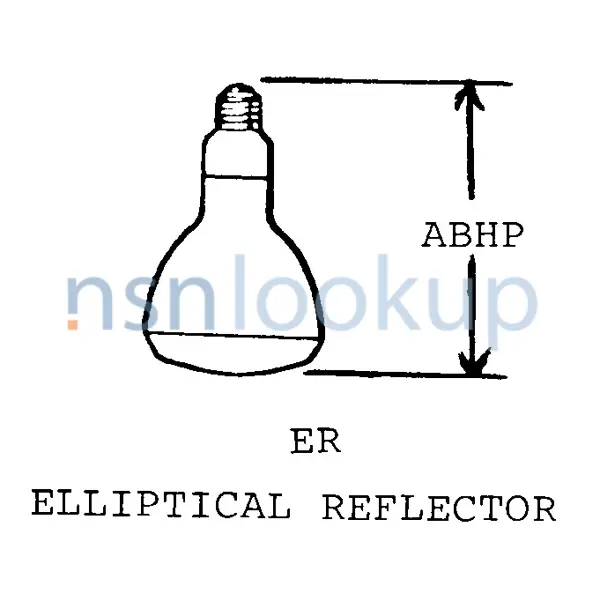

- Bulb Style [CRSK]
- Er Elliptical Reflector
- Burning Position [CWGK]
- Any Acceptable
- Criticality Code Justification [CRTL]
- Bdww And Afst
- Filament Designation [AFSP]
- C-11
- Filament Heavy Duty Service Rating [AFSX]
- Extended Service
- Light Output Rating [AFST]
- 1050.000 Lumens Nominal Single Rating
- Rated Average Life [CWBF]
- Hours
- Overall Length [ABHP]
- 6.312 Inches Maximum
- Special Features [FEAT]
- Energy Efficient; High Krypton Fill; Filament Rated For Rough Service And Vibration Performance
- Voltage Rating [AMSE]
- 120.000 Volts Nominal
- Wattage Rating [BDWW]
- 64.000 Watts
DLA Procurement Analysis 6240-01-358-3729
Management Data 6240-01-358-3729
- Effective Date
- Organization
- Unit of Issue
- Unit Price
- Qty Unit Pack
- Unit of Issue
- Oct 2022
- US Coast Guard (GP)
- BX
- Subscribe
- BX
- Oct 2021
- Department of the Navy (DN)
- BX
- Subscribe
- BX
- Oct 2020
- Defense Logistics Agency (DS)
- BX
- Subscribe
- BX
- Oct 2019
- Department of the Air Force (DF)
- BX
- Subscribe
- BX
- MOE
- USC
- Code
- Statement
- Order of Use
- Jump To Code
- Qty Per Assy
- UOM
- Technical Document
- Quantative Expression
- Code
- Department of the Air Force (DF)
- F
- K
- U/I Contains 15 Ea
- 00000000015EA
- K
- Department of the Navy (DN)
- N
- K
- U/I Contains 15 Ea
- 00000000015EA
- K
- Defense Logistics Agency (DS)
- I
- K
- U/I Contains 15 Ea
- 00000000015EA
- K
- US Coast Guard (GP)
- C
- K
- U/I Contains 15 Ea
- 00000000015EA
- K
Air Force
- Fund:
- SF
- Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point
- Budget:
- 9
- 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors
- Aggregation Code:
- SX
- SICA RESIDUAL MMAC-OC-ALC
- Price Validation Code:
- N
- The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
The price has not been analyzed or reviewed for accuracy.
ZOP or Standard price challenges are permissible but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of “L” or “F”, then it must be evaluated locally where purchased or fabricated.
- Expendability
Recoverability
Repairability: - N
- Expendable. Condemn at User. Stock Fund (except Munitions).
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
NATO Stock Numbers Related to 6240-01-358-3729
Freight Information 6240-01-358-3729
6240-01-358-3729 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 109550. A Sub NMFC of X. It has a NMFC Description of LAMPS(BULBS) ELEC INCANDESCENT NOI. 6240-01-358-3729 is rated as class 150 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 55910 which rates the freight between FCL and LCL. 6240-01-358-3729 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 761 for ocean manifesting and military sealift. 6240-01-358-3729 is not classified as a special type of cargo when transported by water. 6240-01-358-3729 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Contracting Technical Data File (CTDF) 6240-01-358-3729 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- N
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
