6240-01-284-1925

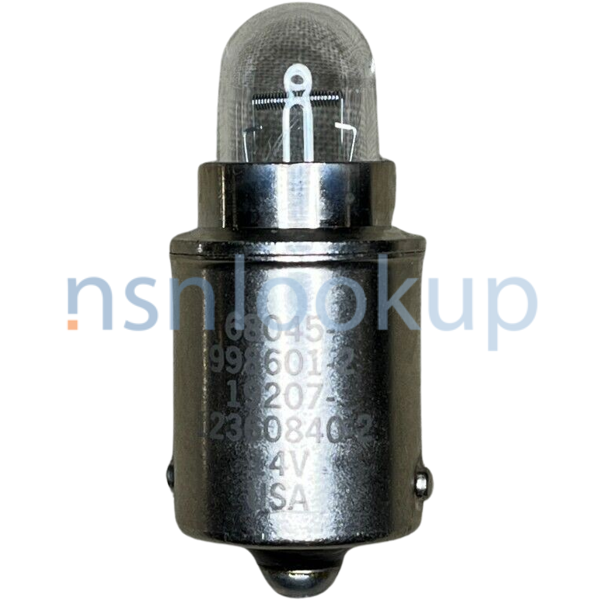

Incandescent Lamp
6240012841925 012841925 12360840-1 EX3669-1 998601-1
An item whose principal purpose is to produce light from a glowing filament(s). It includes metal backed and reflecting types, seal beam and flood types. It may include an integral filament shield to control and/or modify its illumination pattern. View more Incandescent Lamp
Managed by United States
NSN Created on 19 Aug 1988
Data Last Changed
June 2023
June 2023
NATO Update Count
31
31
NATO Data Quality
Marketplace 6240-01-284-1925
Need Help?
Request a Quotation from participating marketplace vendors
Request a Quotation from participating marketplace vendors
Related Documents 6240-01-284-1925 5+ Documents (More...)
95476-12 KITS 27 60602 98006-37 5895-01-428-2198 81 1 89346 99336R91 5342-00-040-2073 97 10 68045 998601-1
6240-01-284-1925 57 4 0184 00-65 - Previous - 491 - 492 - 493 - 494 - 495 - 496 - 497 - 498 - 499
6240-01-284-1925 57 4 0184 00-65 - Previous - 491 - 492 - 493 - 494 - 495 - 496 - 497 - 498 - 499
| RNVC: 2 | DAC: 4 11 Jan 1984 6210-01-291-5981 https//www.nsnlookup.com /fsg-62/fsc-6240/us 6240-01-284-1925
Incandescent Lamp 6240012841925 012841925 499 https//www.nsnlookup.com /cage Welch Allyn Inc Lamp
Incandescent Lamp 6240012841925 012841925 499 https//www.nsnlookup.com /cage Welch Allyn Inc Lamp
4 11 Jan 1984 6210-01-291-5981 Lighting Fixture 48100RNCC: 3 | RNVC: 2 | DAC: 5 31 Dec 1988 6240-01-284-1925
035-2403 https//www.nsnlookup.com /cage Welch Allyn Inc Lamp Div (CAGE Code 68045) 31 Dec 1988 6240-01-284-1925
6220-01-283-0384 55 3 4730-01-241-4650 140 19 5325-01-283-9926 58 8 5325-01-242-7083 120 20 6240-01-284-1925
Restrictions 6240-01-284-1925
6240-01-284-1925 is a Incandescent Lamp that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.
Import and Export 6240-01-284-1925
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 6240-01-284-1925
- US Army (A920)
- Effective Date:
- 1 May 2006
- Former MOE Rule:
- A186
- Supplementary Receivers:
- AZBSBF
- US Air Force (FXGI)
- Effective Date:
- 1 May 2006
- Former MOE Rule:
- FXKZ
- US Marine Corps (MC47)
- Effective Date:
- 1 May 2006
- Former MOE Rule:
- MC10
- US Navy (N9BZ)
- Effective Date:
- 1 May 2006
- Former MOE Rule:
- N9ZD
- Supplementary Collaborators:
- GTHD
- Austria (WB01)
- Effective Date:
- 1 Aug 2006
- Brazil (YA01)
- Effective Date:
- 1 Mar 2001
- Spain (YB01)
- Effective Date:
- 1 Feb 1998
- Australia (ZA01)
- Effective Date:
- 1 Jun 2010
- Canada (ZC01)
- Effective Date:
- 1 Apr 1991
- Germany (ZG01)
- Effective Date:
- 1 Jan 2015
- Republic of Korea (ZH01)
- Effective Date:
- 1 Dec 1997
- United Kingdom (ZK01)
- Effective Date:
- 1 Mar 1997
- Greece (ZU01)
- Effective Date:
- 1 Aug 1995
- Turkey (ZW01)
- Effective Date:
- 1 Dec 2005
Approved Sources 6240-01-284-1925
- Part Number
- Manufacturer
- Status
- 12360840-1
- Manufacturer
- 57550 - Relli Technology, Inc (Active)
- Primary Buy
- Primary Buy
- EX3669-1
- 71744 - Chicago Miniature Lighting Llc (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 998601-1
- 68045 - Welch Allyn Inc Lamp Div (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 12360840-1
- 19207 - U S Army Tank Automotive Command (Active)
- Vendor Drawing
- Vendor Drawing
Datasheet 6240-01-284-1925
- Characteristic
- Specifications
- FIIG
- Specifications
- A07900
- Base Style [CRPS]
- Single Contact Bayonet Candelabra
- Bulb Style [CRSK]
- T (Tubular)
- Overall Length [ABHP]
- 1.438 Inches Maximum
- Bulb Diameter [AEVV]
- 0.400 Inches Maximum
- Bulb Light Transmission Characteristic [CSMC]
- Transparent
- Emitted Light Characteristic [AGDV]
- Colorless
- Filament Designation [AFSP]
- Cc-6
- Filling Gas Type [CTGF]
- Halogen
- Voltage Rating [AMSE]
- 28.000 Volts Nominal
- Current Rating For Which Designed [CTQM]
- 0.700 Amperes Nominal
- Light Output Rating [AFST]
- 26.650 Spherical Candlepower Maximum Single Rating
- Rated Average Life [CWBF]
- Hours
- Average Life Rating In Hours [AFSV]
- 500.0
- Burning Position [CWGK]
- Any Acceptable
- Filament Heavy Duty Service Rating [AFSX]
- Not Rated
- End Item Identification [AGAV]
- Hemtt Family (Heavy Expanded Mobility Tactical Trucks)
Weapon Systems (WSDC) 6240-01-284-1925
DLA Procurement Analysis 6240-01-284-1925
- Last Stock Position:
- 40 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 6240-01-284-1925
- Effective Date
- Organization
- Unit of Issue
- Unit Price
- Qty Unit Pack
- Unit of Issue
- Oct 2022
- Department of the Navy (DN)
- EA
- Subscribe
- 1
- EA
- Oct 2021
- Department of the Air Force (DF)
- EA
- Subscribe
- 1
- EA
- Apr 2021
- Department of the Air Force (DF)
- EA
- Subscribe
- 1
- EA
- Oct 2020
- US Marine Corps (DM)
- EA
- Subscribe
- 1
- EA
- Oct 2019
- Department of the Air Force (DF)
- EA
- Subscribe
- 1
- EA
Army
- Materiel Category and Inventory Manager:
- J
- Ground Forces Support Materiel (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Air Force
- Fund:
- SF
- Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point
- Budget:
- 9
- 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors
- Aggregation Code:
- SX
- SICA RESIDUAL MMAC-OC-ALC
- Price Validation Code:
- N
- The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
The price has not been analyzed or reviewed for accuracy.
ZOP or Standard price challenges are permissible but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of “L” or “F”, then it must be evaluated locally where purchased or fabricated.
- Expendability
Recoverability
Repairability: - N
- Expendable. Condemn at User. Stock Fund (except Munitions).
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Marine Corps
- Stores Account:
- 1
- Stock Fund Account Item
- Combat Essentiality:
- 2
- Non-Critical Repair Part
- Echelon Management:
- B2
- Operational Test:
- No Special Procedures
NATO Stock Numbers Related to 6240-01-284-1925
6240-99-996-2405 6240-99-996-4441 6240-22-611-0249 6240-12-338-2074 6240-99-996-5391 6240-22-623-8958 6240-99-995-9167 6240-99-996-2502 6240-99-996-4865 6240-99-995-2272 6240-22-283-2065 6240-99-732-2730 6240-99-909-6302 6240-99-769-8616 6240-12-702-6353 6240-21-849-4701 6240-21-898-7720 6240-99-996-4618
Freight Information 6240-01-284-1925
6240-01-284-1925 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 109550. A Sub NMFC of X. It has a NMFC Description of LAMPS(BULBS) ELEC INCANDESCENT NOI. 6240-01-284-1925 is rated as class 150 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 55910 which rates the freight between FCL and LCL. 6240-01-284-1925 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 761 for ocean manifesting and military sealift. 6240-01-284-1925 is not classified as a special type of cargo when transported by water. 6240-01-284-1925 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 6240-01-284-1925
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Non-Metallic Item
- Over 10lb
- Less than 85G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- --
- --
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- --
- --
- --
- --
- --
- Special requirements
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- See Method of Preservation
- --
Procurement History 6240-01-284-1925 5 Records
- Contract
- Date
- CAGE
- Quantity
- Net Price
- Std Price
- CAGE
- SPE4A619P5155
- 19 Dec 2018
- Subscribe
- 750
- Subscribe
- Subscribe
- Subscribe
- SPE4A618PH987
- 11 Jun 2018
- Subscribe
- 546
- Subscribe
- Subscribe
- Subscribe
- SPE4A614D57350001
- 08 Jul 2014
- Subscribe
- 353
- Subscribe
- Subscribe
- Subscribe
- SPE4A414VE085
- 14 May 2014
- Subscribe
- 217
- Subscribe
- Subscribe
- Subscribe
- SPE4A414VB322
- 31 Mar 2014
- Subscribe
- 170
- Subscribe
- Subscribe
- Subscribe
Contracting Technical Data File (CTDF) 6240-01-284-1925 October 2021
Criticality and Quality
- Critical Item Code:
- X
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- F
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
