6240-01-244-4662
Incandescent Lamp
6240012444662 012444662 SM-1240S OL-521240
An item whose principal purpose is to produce light from a glowing filament(s). It includes metal backed and reflecting types, seal beam and flood types. It may include an integral filament shield to control and/or modify its illumination pattern. View more Incandescent Lamp
May 2023
4
Marketplace 6240-01-244-4662
Request a Quotation from participating marketplace vendors
Related Documents 6240-01-244-4662 4+ Documents (More...)
SM-1240S LAMP,INCANDESCENT RQST NS Request Quotation FedMall Updated Every 15 Minutes 6240-01-244-4662
Every Day 6240-01-244-4662 RQST NE Related Documents 6240-01-244-4662 5+ Documents ( More... ) https
Incandescent Lamp 6240012444662 012444662 Upgrade your Account Upgrade 6240-01-244-4662Incandescent
Lamp6240012444662 012444662 SM-1240S OL-521240 Seal Retainer 5330331872998 331872998,521240 SM-1240SOL
Incandescent Lamp 6240012444662 012444662 Upgrade your Account Upgrade 6240-01-244-4662Incandescent
Lamp6240012444662 012444662 SM-1240S OL-521240 your web browser . 6150-66-139-8101Electrical Special
Incandescent Lamp 6240012444662 012444662 5330-33-187-2998 Seal Retainer 5330331872998 331872998,521240
www.nsnlookup.com /fsg-61/fsc-6150/au 6150-66-139-8102 331872998,521240 Active) Primary Buy RNCC 3 RNVC 2 DAC E OL-521240
Restrictions 6240-01-244-4662
6240-01-244-4662 is a Incandescent Lamp that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.
Import and Export 6240-01-244-4662
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 6240-01-244-4662
- National Security Agency (DGX1)
- Effective Date:
- 1 May 2006
- Former MOE Rule:
- DKZ1
- Supplementary Receivers:
- KZ
- US Navy (N9BZ)
- Effective Date:
- 1 Dec 2013
- Supplementary Collaborators:
- GG
Approved Sources 6240-01-244-4662
- Part Number
- Manufacturer
- Status
- SM-1240S
- Manufacturer
- 55335 - Jkl Components, Corporation (Active)
- Primary Buy
- Primary Buy
- OL-521240
- 58774 - Wamco, Inc. (Active)
- Primary Buy
- Primary Buy
- SM-1240S
- J2355 - Stanley Electric Co. Ltd (Active)
- Secondary Buy
- Secondary Buy
- SM-1240S
- S4238 - Stanley Electric Co. Ltd (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 6240-01-244-4662
- Characteristic
- Specifications
- FIIG
- Specifications
- A07900

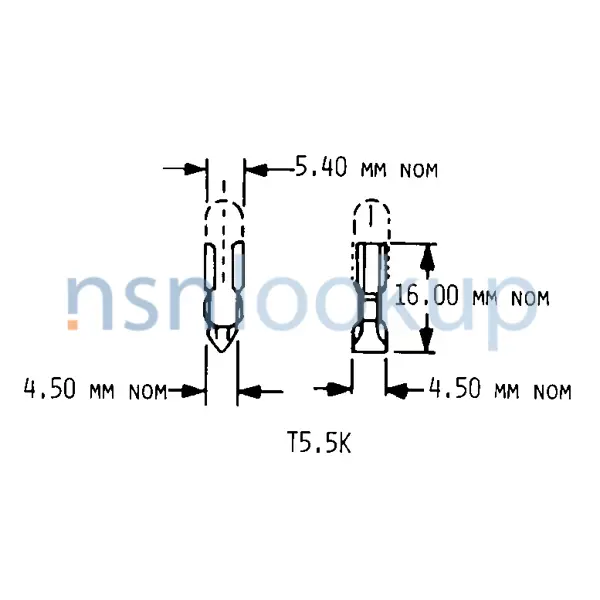

- Base Style [CRPS]
- T5.5K
- Bulb Style [CRSK]
- T (Tubular)
- Bulb Designator [CSJW]
- T-1 1/2
- Overall Length [ABHP]
- 0.867 Inches Nominal
- Bulb Light Transmission Characteristic [CSMC]
- Transparent
- Emitted Light Characteristic [AGDV]
- Colorless
- Wattage Rating [BDWW]
- 0.480 Watts
- Voltage Rating [AMSE]
- 12.000 Volts Nominal
- Current Rating For Which Designed [CTQM]
- 0.040 Amperes Nominal
- Light Output Rating [AFST]
- 0.800 Lumens Nominal Single Rating
- Rated Average Life [CWBF]
- Hours
- Average Life Rating In Hours [AFSV]
- 10000.0
- Burning Position [CWGK]
- Any Acceptable
- Filament Heavy Duty Service Rating [AFSX]
- Not Rated
DLA Procurement Analysis 6240-01-244-4662
Management Data 6240-01-244-4662
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 6240-01-244-4662
Freight Information 6240-01-244-4662
6240-01-244-4662 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 109550. A Sub NMFC of X. It has a NMFC Description of LAMPS(BULBS) ELEC INCANDESCENT NOI. 6240-01-244-4662 is rated as class 150 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 55910 which rates the freight between FCL and LCL. 6240-01-244-4662 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 761 for ocean manifesting and military sealift. 6240-01-244-4662 is not classified as a special type of cargo when transported by water. 6240-01-244-4662 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 6240-01-244-4662
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Electrical Instrument
- Over 10lb
- Less than 85G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- --
- --
- --
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
- Fragile
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- --
Contracting Technical Data File (CTDF) 6240-01-244-4662 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- N
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
