6240-01-188-2745
Flashtube Lamp
6240011882745 011882745 17-5-174705 17-4705-0
A lamp that produces repeated light flashes of exceedingly high intensity for short durations. May include incandescent lamp within itself. View more Flashtube Lamp
June 2023
4
Marketplace 6240-01-188-2745
Request a Quotation from participating marketplace vendors
Related Documents 6240-01-188-2745 2+ Documents (More...)
/fsg-62/fsc-6240/us
FedMall Updated Every 15 Minutes 6240-01-188-2745 BUY NE FedMall Updated Every Day 6240-01-188-2745
RQST NE Updated Every Day 6240-01-188-2745 RQST Updated Every Day 6240-01-188-2745 RQST NE Related Documents
Flashtube Lamp 6240011882745 011882745 $1 a day Upgrade your Account Upgrade 6240-01-188-2745Flashtube
Lamp6240011882745 011882745 17-5-174705 Day 6240-01-188-2745 RQST NE Related Documents https//www.nsnlookup.com
Restrictions 6240-01-188-2745
6240-01-188-2745 is a Flashtube Lamp that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.
Import and Export 6240-01-188-2745
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 6240-01-188-2745
- US Army (A920)
- Effective Date:
- 1 May 2006
- Former MOE Rule:
- A186
- Supplementary Receivers:
- CL
- US Navy (N9BZ)
- Effective Date:
- 1 Dec 2013
- Supplementary Collaborators:
- GG
Approved Sources 6240-01-188-2745
- Part Number
- Manufacturer
- Status
- 17-5-174705
- Manufacturer
- 62812 - Varityper Inc (Obsolete)
- Original Design
- Original Design
- 17-4705-0
- 62812 - Varityper Inc (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 6240-01-188-2745
- Characteristic
- Specifications
- FIIG
- Specifications
- A07900
- Emitted Light Characteristic [AGDV]
- Colorless
- Bulb Light Transmission Characteristic [CSMC]
- Transparent
- Filling Gas Type [CTGF]
- Any Acceptable
- Flashtube Overall Length [AFSF]
- 1.295 Inches Maximum

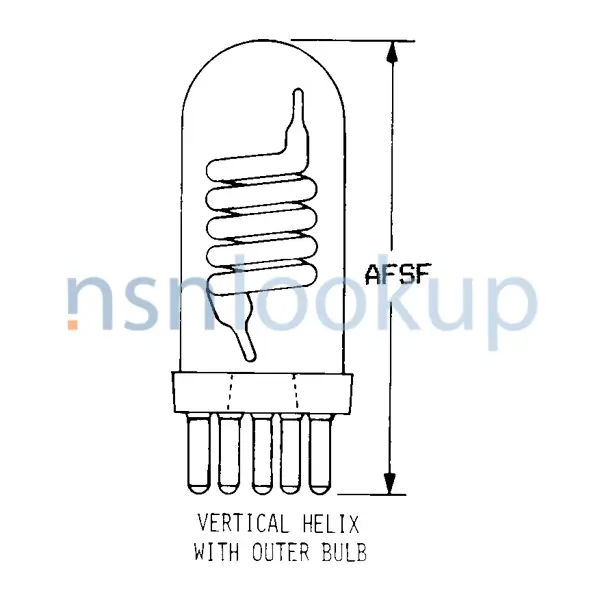

- Flashtube Style [AFSB]
- Vertical Helix With Outer Bulb
- Maximum Flashing Rate Per Second [AFTD]
- 10000
- Input Rating In Watt-Seconds [AFTC]
- 10.0
- Light Center Length [AGDW]
- 0.660 Inches Minimum And 0.690 Inches Maximum
- Light Intensity Distribution Feature [CSRJ]
- Outside Coated
- Special Features [FEAT]
- 912 Pin Male Connector Base With Center Mounting Pin; 1/2In. Wide By 1 In. Long Scotch Brand Magic Transparent Tape No. 810 Applied To Face Plate; Opaque Paint Or Hat Shrinkable Tubing Around Face Plate; Face Plate Material Corning 0800 Or Equivalent
- Voltage Rating [AMSE]
- 625.000 Volts Nominal
DLA Procurement Analysis 6240-01-188-2745
Management Data 6240-01-188-2745
Army
- Materiel Category and Inventory Manager:
- J
- Ground Forces Support Materiel (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
NATO Stock Numbers Related to 6240-01-188-2745
Freight Information 6240-01-188-2745
6240-01-188-2745 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 109550. A Sub NMFC of X. It has a NMFC Description of LAMPS(BULBS) ELEC INCANDESCENT NOI. 6240-01-188-2745 is rated as class 150 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 55910 which rates the freight between FCL and LCL. 6240-01-188-2745 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 761 for ocean manifesting and military sealift. 6240-01-188-2745 is not classified as a special type of cargo when transported by water. 6240-01-188-2745 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Contracting Technical Data File (CTDF) 6240-01-188-2745 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- N
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Y
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
