6240-01-097-8689

Sodium Lamp

6240010978689 010978689 L74RF-180 SOX-180 WATT 09304 C78.41(L74RF-180)

An item which produces light by an electric arc between two electrodes in an ionized sodium vapor atmosphere. View more Sodium Lamp

Managed by United States

NSN Created on 21 Jul 1980

Data Last Changed
November 2023

NATO Update Count
6

NATO Data Quality

CRPS Style A22 for 6240-01-097-8689 1/2 — NSN 6240-01-097-8689 (Identification) 1/2

CRSK Style B25 for 6240-01-097-8689 2/2 — NSN 6240-01-097-8689 (Identification) 2/2

Marketplace 6240-01-097-8689

Need Help?
Request a Quotation from participating marketplace vendors

Updated Every Day

6240-01-097-8689 RQST NE

Updated Every Day

6240-01-097-8689 RQST

Updated Every Day

6240-01-097-8689 RQST NE

Restrictions 6240-01-097-8689

6240-01-097-8689 is a Sodium Lamp that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item has been determined to be hazardous and information is contained in the Hazardous Materials Information Resource System (HMIRS). This item does not contain a precious metal.

Import and Export 6240-01-097-8689

Schedule B: Subscribe to View Schedule B
HTS Code: Subscribe to View HTS Code

End Users 6240-01-097-8689

US Army (A920)
Effective Date:: 1 May 2006
Former MOE Rule:: A186; AMC 1 AMSC G IMC Z IMCACTY CD

MOE Rule:: BGX1
Effective Date:: 1 May 2006
Former MOE Rule:: BKZ1; AMC 1 AMSC G

US Air Force (FXGI)
Effective Date:: 1 May 2006
Former MOE Rule:: FXKZ; AMC 1 AMSC G IMC Z IMCACTY SX

US Marine Corps (MC47)
Effective Date:: 1 May 2006
Former MOE Rule:: MC10; AMC 1 AMSC G IMC Z IMCACTY PA

US Navy (N9BZ)
Effective Date:: 1 May 2006
Former MOE Rule:: N9ZD
Supplementary Collaborators:: GTKEHD; AMC 1 AMSC G IMC Z IMCACTY GH

Canada (ZC01)
Effective Date:: 1 Apr 1991

Approved Sources 6240-01-097-8689

Part Number
Manufacturer
Status
L74RF-180: 80204 - American National Standards (Active); Primary Buy; RNCC 3 RNVC 2 DAC 3
SOX-180 WATT: 62607 - Philips Electronics North America (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 1
09304: 62607 - Philips Electronics North America (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 1
C78.41(L74RF-180): 80204 - American National Standards (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC E

Datasheet 6240-01-097-8689

Characteristic
Specifications
FIIG: A07900
Emitted Light Characteristic [AGDV]: Yellow, Light
Average Life Rating In Hours [AFSV]: 18000.0

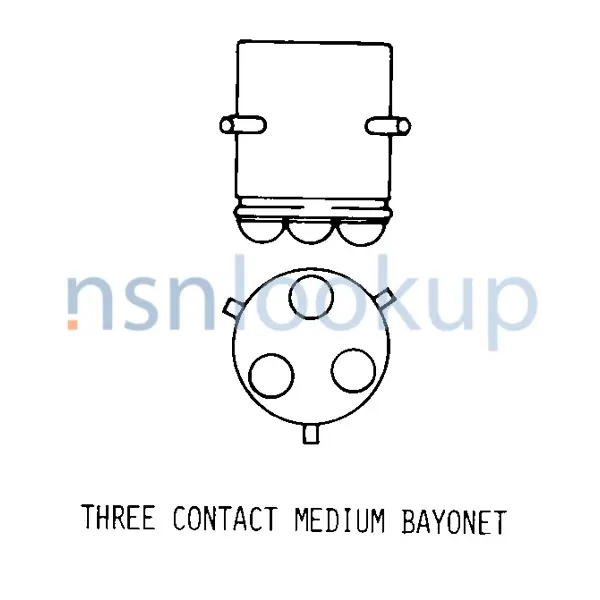

Base Style [CRPS]: Three Contact Medium Bayonet
Bulb Designator [CSJW]: T-2 11/16
Bulb Light Transmission Characteristic [CSMC]: Translucent
Bulb Style [CRSK]: T (Tubular)
Burning Position [CWGK]: Base Up To 20 Degrees Above Horizontal And Base Up To 15 Degrees Below Horizontal
Light Center Length [AGDW]: 23.0000 Inches Nominal
Light Intensity Distribution Feature [CSRJ]: Inside Coated
Light Output Rating [AFST]: 33000.000 Lumens Nominal Single Rating
Rated Average Life [CWBF]: Hours
Overall Length [ABHP]: 44.125 Inches Maximum
Special Features [FEAT]: Energy Saver
Voltage Rating [AMSE]: 210.000 Volts Minimum And 270.000 Volts Maximum
Wattage Rating [BDWW]: 180.000 Watts

Weapon Systems (WSDC) 6240-01-097-8689

Subscribe
View WSDC

Subscribe to View Weapon System Codes...

Subscribe
View Data

DLA Procurement Analysis 6240-01-097-8689

Last Stock Position:: 250 In Stock
DLA Administrative Lead Time:: Subscribe
DLA Production Lead Time:: Subscribe

Subscribe to View DLA Inventory and Forecast...

Management Data 6240-01-097-8689

Subscribe
View Prices

Effective Date: Organization; Unit of Issue; Unit Price; Qty Unit Pack
Oct 2022: Department of the Navy (DN); EA; Subscribe; 1
Oct 2021: Department of the Air Force (DF); EA; Subscribe; 1
Nov 2020: Department of the Air Force (DF); EA; Subscribe; 1
Oct 2019: Department of the Air Force (DF); EA; Subscribe; 1

Army

Materiel Category and Inventory Manager:

J: Ground Forces Support Materiel (DLA/GSA Items)

Appropriation and Budget Activity:

2: Stock Fund Secondary Items

Management Inventory Segment:

2: Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.

Weapons System / End Item / Homogeneous Group:

00: DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item

Accounting Requirements:

X: Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.

Air Force

Fund:

SF: Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point

Budget:

9: 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors

Aggregation Code:

SX: SICA RESIDUAL MMAC-OC-ALC

Price Validation Code:

N: The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
The price has not been analyzed or reviewed for accuracy.
ZOP or Standard price challenges are permissible but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of “L” or “F”, then it must be evaluated locally where purchased or fabricated.

Expendability Recoverability Repairability:

N: Expendable. Condemn at User. Stock Fund (except Munitions).

Navy

Cognizance:

9B: Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg

Special Material Content:

4: Item or part that contains hazardous material(s) and could require special handling during maintenance or disposal

Marine Corps

Stores Account:

1: Stock Fund Account Item

Combat Essentiality:

5: Critical Repair Part to a Combat Essential End Item

Echelon Management:

B2

Operational Test:

: No Special Procedures

Similar Supply Items to 6240-01-097-8689

Freight Information 6240-01-097-8689

6240-01-097-8689 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 109700. A Sub NMFC of Z. It has a NMFC Description of LAMP OR LIGHTING FIXTURES. 6240-01-097-8689 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 55690 which rates the freight between FCL and LCL. 6240-01-097-8689 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 761 for ocean manifesting and military sealift. 6240-01-097-8689 is not classified as a special type of cargo when transported by water. 6240-01-097-8689 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.

Packaging Data 6240-01-097-8689

Responsible Activity
Packaging Data Source: Primary Inventory Control Activity (PICA); --

Item Pack Level (Unpackaged)

Item Size
Item Weight
Characteristics
Weight/Dimensions Category
Fragility
Item Preservation: --; --; Electrical Instrument; Over 10lb; Less than 85G; No Requirement

Unit Pack Level (Packaged)

Quantity per Pack
Unit Size
Unit Weight
Unit Cube
Preservation Method
Cleaning/Drying: 1; --; --; --; --; --

Preservation Material
Wrapping Material
Cushioning/Dunnage
Cushioning Thickness
Container
Special Marking: --; --; --; --; --; Special requirements

Intermediate Pack Level

Quantity of Unit Packs
Container: See Method of Preservation; --

Procurement History 6240-01-097-8689 10 Records

Subscribe
View Prices

Contract: Date; CAGE; Quantity; Net Price; Std Price
SPE4A616M7447: 05 Feb 2016; Subscribe; 342; Subscribe; Subscribe
SPE4A615D03020009: 12 Jan 2016; Subscribe; 180; Subscribe; Subscribe
SPE4A615D03020011: 12 Jan 2016; Subscribe; 180; Subscribe; Subscribe
SPE4A615D03020010: 12 Jan 2016; Subscribe; 180; Subscribe; Subscribe
SPE4A615D03020012: 12 Jan 2016; Subscribe; 180; Subscribe; Subscribe
SPE4A415VC342P00001: 24 Apr 2015; Subscribe; 190; Subscribe; Subscribe
SPE4A415V1658: 24 Oct 2014; Subscribe; 294; Subscribe; Subscribe
SPE4A614VH034: 01 Jul 2014; Subscribe; 109; Subscribe; Subscribe
SPE4A613MM068: 15 Jul 2013; Subscribe; 241; Subscribe; Subscribe
SPE4A613MH762: 29 May 2013; Subscribe; 157; Subscribe; Subscribe
