6240-01-078-2461
Flashtube Lamp
6240010782461 010782461 H5-801Q 550330-14 DE-B-2876 GN80
A lamp that produces repeated light flashes of exceedingly high intensity for short durations. May include incandescent lamp within itself. View more Flashtube Lamp
June 2023
6
Marketplace 6240-01-078-2461
Request a Quotation from participating marketplace vendors
Related Documents 6240-01-078-2461 5+ Documents (More...)
/fsg-62/fsc-6240/us
(Identification) 1/2 NSN 6240-01-078-2461 (Identification) 2/2 - - 1.
Day 6240-01-078-2461 RQST NE Updated Every Day 6240-01-078-2461 RQST Updated Every Day 6240-01-078-2461
Flashtube Lamp 6240010782461 010782461 078-2461 RQST Updated Every Day 6240-01-078-2461 https//
/0.210 GN80/0.210DIA An item of natural and/or synthetic rubber of solid or cellular structure having
www.nsnlookup.com /fsg-93/fsc-9320/nz 9320-98-852-6540 Rubber Round Section 9320988526540988526540 GN80
988577016 /fsc-9320/nz 9320-98-852-6539 Rubber https//www.nsnlookup.com /fsg-62/fsc-6240/us 6240-01-078-2461
Flashtube Lamp 6240010782461 010782461 Rubber Round Section 9320988526540988526540 GN80 https//
Flashtube Lamp 6240010782461 010782461 Round Section 9320988526540988526540 GN80 https// https/
Restrictions 6240-01-078-2461
6240-01-078-2461 is a Flashtube Lamp that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.
Import and Export 6240-01-078-2461
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 6240-01-078-2461
- MOE Rule:
- BGX1
- Effective Date:
- 1 May 2008
- US Air Force (FXGI)
- Effective Date:
- 1 May 2006
- US Navy (N9BZ)
- Effective Date:
- 1 Dec 2013
- Supplementary Collaborators:
- GG
Approved Sources 6240-01-078-2461
- Part Number
- Manufacturer
- Status
- 550330-14
- Manufacturer
- 1T9K5 - O.C.E.M. Acquisition Corp. (Active)
- Primary Buy
- Primary Buy
- DE-B-2876
- 70558 - Amglo Kemlite Laboratories, Inc. (Active)
- Secondary Buy
- Secondary Buy
- GN80
- 60426 - Genesis Lamp Corp (Active)
- Secondary Buy
- Secondary Buy
- H5-801Q
- 70558 - Amglo Kemlite Laboratories, Inc. (Active)
- Advisory Reference
- Advisory Reference
Datasheet 6240-01-078-2461
- Characteristic
- Specifications
- FIIG
- Specifications
- A07900
- Emitted Light Characteristic [AGDV]
- Blue-White
- Base Style [CRPS]
- Octal Three Pin
- Bulb Light Transmission Characteristic [CSMC]
- Transparent
- Filling Gas Type [CTGF]
- Xenon

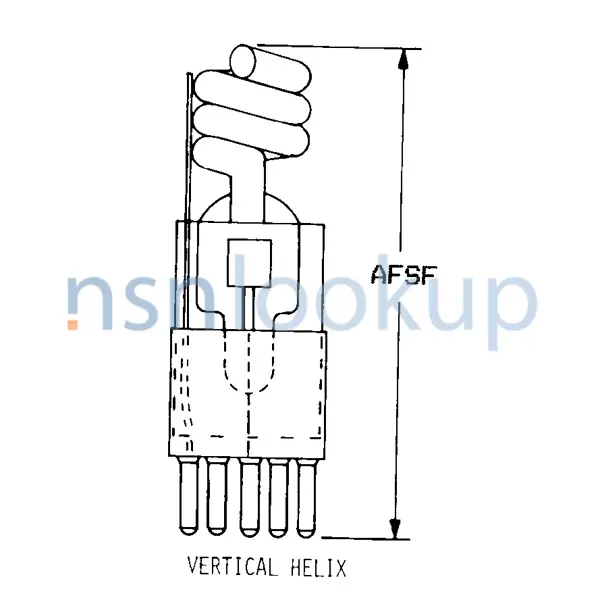

- Flashtube Overall Length [AFSF]
- 4.750 Inches Nominal
- Flashtube Style [AFSB]
- Vertical Helix
- Maximum Flashing Rate Per Second [AFTD]
- 2
- Input Rating In Watt-Seconds [AFTC]
- 60.0
- Special Features [FEAT]
- Rtigger Transformer Built Into Base Of Lamp
- Voltage Rating [AMSE]
- 2.000 Kilovolts Nominal
DLA Procurement Analysis 6240-01-078-2461
- Last Stock Position:
- 6 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 6240-01-078-2461
Air Force
- Fund:
- SF
- Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point
- Budget:
- 9
- 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors
- Aggregation Code:
- SX
- SICA RESIDUAL MMAC-OC-ALC
- Price Validation Code:
- N
- The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
The price has not been analyzed or reviewed for accuracy.
ZOP or Standard price challenges are permissible but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of “L” or “F”, then it must be evaluated locally where purchased or fabricated.
- Expendability
Recoverability
Repairability: - N
- Expendable. Condemn at User. Stock Fund (except Munitions).
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
NATO Stock Numbers Related to 6240-01-078-2461
Freight Information 6240-01-078-2461
6240-01-078-2461 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 109700. A Sub NMFC of Z. It has a NMFC Description of LAMP OR LIGHTING FIXTURES. 6240-01-078-2461 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 55690 which rates the freight between FCL and LCL. 6240-01-078-2461 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 761 for ocean manifesting and military sealift. 6240-01-078-2461 is not classified as a special type of cargo when transported by water. 6240-01-078-2461 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 6240-01-078-2461
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Electrical Instrument
- Over 10lb
- Less than 85G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- --
- --
- --
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
- Fragile
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- --
Procurement History 6240-01-078-2461 4 Records
Contracting Technical Data File (CTDF) 6240-01-078-2461 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- N
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
