6240-00-357-0139
Incandescent Lamp
6240003570139 003570139 G573
An item whose principal purpose is to produce light from a glowing filament(s). It includes metal backed and reflecting types, seal beam and flood types. It may include an integral filament shield to control and/or modify its illumination pattern. View more Incandescent Lamp
May 2023
4
Marketplace 6240-00-357-0139
Request a Quotation from participating marketplace vendors
Related Documents 6240-00-357-0139 5+ Documents (More...)
Every Day 6240-00-357-0139 RQST Updated Every Day 6240-00-357-0139 RQST NE Related Documents 6240-00-
(Identification) 1/2 NSN 6240-00-357-0139 (Identification) 2/2 - - 1.
-0139Incandescent Lamp6240003570139 003570139 G573 Aircraft Maintenance Tool Kit 5180016332951 Incandescent
Aircraft Maintenance Tool Kit 5180016332951 0139Incandescent Lamp6240003570139 003570139 G573 https -
-0139Incandescent Lamp6240003570139 003570139 G573 Incandescent Incandescent Lamp 6240003570139003570139
-2951 Aircraft Maintenance Tool Kit 5180016332951 0139Incandescent Lamp6240003570139 003570139 G573 https
/fsg-53/fsc-5331/uk
G573 https//www.nsnlookup.com /fsg-53/fsc-5331/uk 5331-99-284-3389 O-Ring 5331992843389992843389,G573
-01-433-7990 Alternating Current Motor 6105014337990 0139 Incandescent Lamp 6240003570139003570139 G573
Incandescent Lamp 6240003570139 003570139 for $1 a day Upgrade your Account Upgrade 6240-00-357
-0139Incandescent Lamp6240003570139 003570139 G573 //www.nsnlookup.com /fsg-62/fsc-6240/us 6240- 00-357
Restrictions 6240-00-357-0139
6240-00-357-0139 is a Incandescent Lamp that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. The precious metals content of this item is unknown.
Import and Export 6240-00-357-0139
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 6240-00-357-0139
- US Navy (N9BZ)
- Effective Date:
- 1 May 2006
- Former MOE Rule:
- N9ZD
- Supplementary Collaborators:
- KE
Approved Sources 6240-00-357-0139
- Part Number
- Manufacturer
- Status
- G573
- Manufacturer
- K3197 - Micro Display Devices Ltd (Obsolete)
- Original Design
- Original Design
Datasheet 6240-00-357-0139
- Characteristic
- Specifications
- FIIG
- Specifications
- A07900
- Emitted Light Characteristic [AGDV]
- Colorless
- Average Life Rating In Hours [AFSV]
- 5000.0

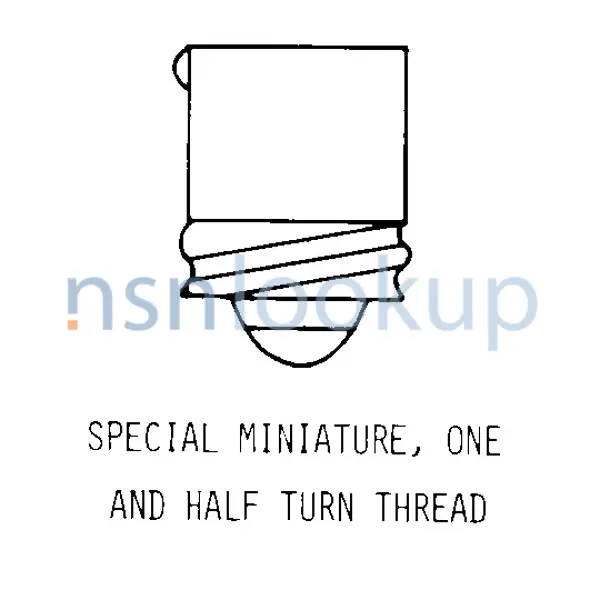

- Base Style [CRPS]
- Special Miniature, One And Half Turn Thread
- Bulb Designator [CSJW]
- G-3 1/2
- Bulb Light Transmission Characteristic [CSMC]
- Transparent
- Bulb Style [CRSK]
- G (Globular)
- Burning Position [CWGK]
- Any Acceptable
- Current Rating For Which Designed [CTQM]
- 0.095 Amperes Nominal
- Filament Designation [AFSP]
- C-2V
- Filament Heavy Duty Service Rating [AFSX]
- Not Rated
- Light Output Rating [AFST]
- 5.000 Lumens Nominal Single Rating
- Rated Average Life [CWBF]
- Hours
- Overall Length [ABHP]
- 24.0 Millimeters Nominal
- Voltage Rating [AMSE]
- 12.000 Volts Nominal
- Wattage Rating [BDWW]
- 1.140 Watts
DLA Procurement Analysis 6240-00-357-0139
Management Data 6240-00-357-0139
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 6240-00-357-0139
Freight Information 6240-00-357-0139
6240-00-357-0139 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 109550. A Sub NMFC of X. It has a NMFC Description of LAMPS(BULBS) ELEC INCANDESCENT NOI. 6240-00-357-0139 is rated as class 150 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 55910 which rates the freight between FCL and LCL. 6240-00-357-0139 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 761 for ocean manifesting and military sealift. 6240-00-357-0139 is not classified as a special type of cargo when transported by water. 6240-00-357-0139 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 6240-00-357-0139
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Electrical Instrument
- Over 10lb
- Less than 85G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- --
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- --
- --
- --
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
- Fragile
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- --
Contracting Technical Data File (CTDF) 6240-00-357-0139 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- N
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
