6230-00-128-2482
Light Reflector
6230001282482 001282482 6Z7827-3 PA6543 7703271-3
An opaque item for a light source with an inside surface of high polish or luster designed to confine, reflect and redirect light rays in a specific area or direction. Does not include lampholder. For combination guard and reflector, see GUARD, LAMP. View more Light Reflector
January 2023
19
Marketplace 6230-00-128-2482
Request a Quotation from participating marketplace vendors
Related Documents 6230-00-128-2482 1+ Documents (More...)
United States (US) 4. 6230-00-128-2482 Marketplace Restrictions Approved Sources Datasheet Management
RQST NE Updated Every Day 6230-00-128-2482 RQST Updated Every Day 6230-00-128-2482 RQST NE Related Documents
Restrictions 6230-00-128-2482
6230-00-128-2482 is a Light Reflector that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. The precious metals content of this item is unknown.
Import and Export 6230-00-128-2482
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 6230-00-128-2482
- Austria (WB01)
- Effective Date:
- 1 Feb 2005
- Greece (ZU01)
- Effective Date:
- 1 Apr 1991
- Turkey (ZW01)
- Effective Date:
- 1 Oct 2009
Approved Sources 6230-00-128-2482
- Part Number
- Manufacturer
- Status
- 6Z7827-3
- Manufacturer
- 80063 - Us Army Communications & Electronics (Active)
- Primary Buy
- Primary Buy
- PA6543
- 16783 - Delta Electric Div Halle Industries (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- 7703271-3
- 088A2 - C Systems Llc Dba Craig Systems Dba (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 6230-00-128-2482
- Characteristic
- Specifications
- FIIG
- Specifications
- T316-D
- Corrugated Reflecting Surface [ARQR]
- Not Included
- Material [MATT]
- Steel
- Mounting Configuration [ALGC]
- Coupling Nut
- End Item Identification [AGAV]
- Type No. Mx-290/Gv
- Inside Surface Treatment [AAJQ]
- Polished
- Lampholder Opening Dimension [ARRA]
- 17/32 In. Dia
- Lampholder Opening Location [ARQZ]
- Center
- Overall Diameter [ADAV]
- 4.625 Inches Nominal
- Overall Height [ABKW]
- 1.438 Inches Nominal

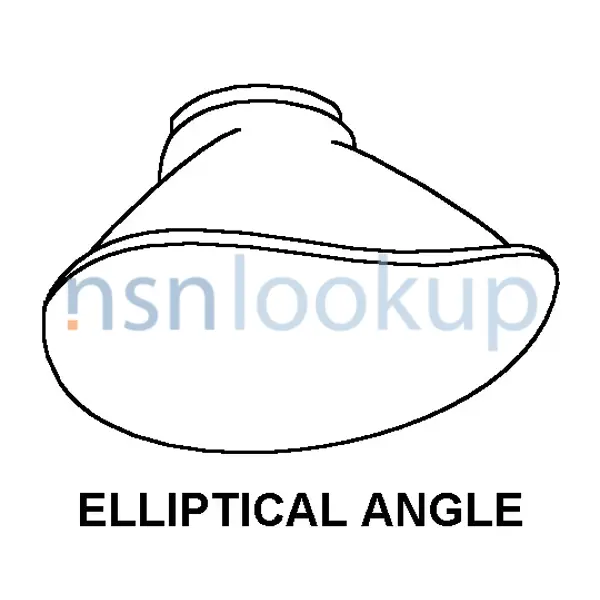

- Style Designator [STYL]
- Elliptical Angle
- Surface Treatment [SFTT]
- Paint
Similar Supply Items to 6230-00-128-2482
Freight Information 6230-00-128-2482
6230-00-128-2482 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 109091. A Sub NMFC of X. It has a NMFC Description of DIFFUSER/GLOBE/REFLECTOR/ETC. 6230-00-128-2482 is rated as class 250 when transported by Less-Than Truckload (LTL) freight. 6230-00-128-2482 is rated as a variable freight class when transported by Less-Than Carload (LCL) rail or ocean freight. It has a Uniform Freight Classification (UFC) number of 46530 which rates the freight between FCL and LCL. 6230-00-128-2482 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 659 for ocean manifesting and military sealift. 6230-00-128-2482 is not classified as a special type of cargo when transported by water. 6230-00-128-2482 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
