6220-01-586-6266
Light Emitting Diode Lamp
6220015866266 015866266 07303 3708029C1
An electric light that uses one or more light-emitting diodes (LEDs as the source of light. View more Light Emitting Diode Lamp
November 2023
1
Product Information 6220-01-586-6266

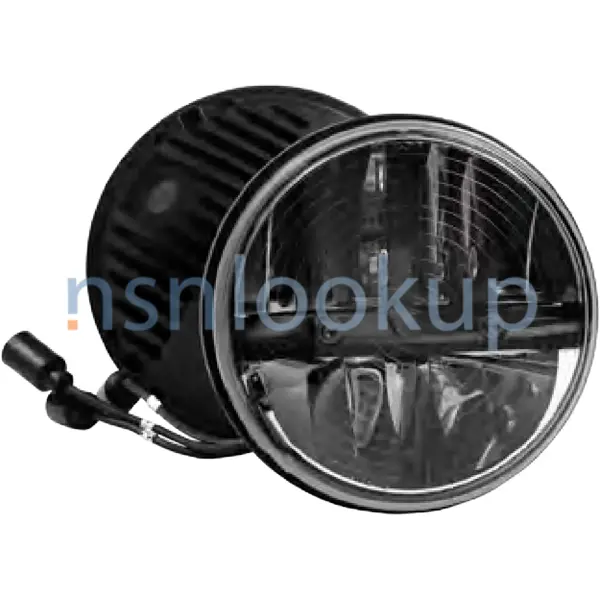

LED HEADLIGHT
OBS 12v LED Headlamp: Supercedes 07303A
LIGHT SOURCE:
• 12.8v, 1.80a (low beam), 3.60 amps (high beam)
• 25.6v, 1.00a (low beam), 1.80 amps (high beam
MATERIAL:
• Polycarbonate lens
• Die cast aluminum housing
• Steel bucket
• 16 gauge SXL wires, hard wired with connector
FEATURES & BENEFITS:
• DOT compliant, High Beam and Low Beam performance
• Newly-upgrade options feature a complex-reflector design that spreads light more evenly across the field of view
• Provides brighter, crisper, whiter light output closer to the color of daylight, dramatically improving light projection distance and overall visibility
• Heated Lens options available for steady, complete-surface melting of snow and ice - only active when temperatures drop
• Solid-state design with internal components sealed in epoxy to resists damage from shock & vibration
• Hard wired design, fully encapsulated electronics & eCoat, die cast aluminum housing protect from damage caused by corrosive elements
• Impact resistant non-yellowing lens-grade polycarbonate lens protects against damage caused by debris and other hazards
• Retrofits any existing 7” round headlamp application, 12v or 24v, as 9v-33v multivolt design operates in both 12v and 24v systems without adjustment
• Overvoltage spike protection up to 600v
• Constant voltage output does not increase or dim in response to system voltage changes
Marketplace 6220-01-586-6266
Request a Quotation from participating marketplace vendors
Related Documents 6220-01-586-6266 5+ Documents (More...)
BUY NE FedMall Updated Every Day 3708029C1 RQST NE Updated Every Day 6220-01-586-6266 RQST NE Updated
Every Day 6220-01-586-6266 RQST Updated Every Day 6220-01-586-6266 RQST NE Related Documents 6220-01
https//www.nsnlookup.com /fsg-76/fsc-7610/tr 7610-27-033-8023 Book 7610270338023 270338023,7610-TJ1-07303
https//www.nsnlookup.com /fsg-76/fsc-7610/tr 7610-27-033-8023 Book 7610270338023 270338023,7610-TJ1-07303
in your web browser . 5120-33-155-9872Torque Wrench Adapter5120331559872 331559872 DIN 475 200.407 07303
/000D20440-189-00-7D688/1/07303/000 An item consisting of a conductor https//www.nsnlookup.com /fsg-
Upgrade your Account Upgrade 6910-01-586-0678Small Arms Weapon Training Aid6910015860678 015860678 07303
/000D20440-189-00-7D688/1/07303/000 An item consisting of a conductor https//www.nsnlookup.com /fsg-
/000D20440-189-00-7D688/1/07303/000 An item consisting of a conductor or RQST NE Updated Every Day 5985
/000D20440-189-00-7D688/1/07303/000 An item consisting of a conductor https//www.nsnlookup.com /fsg-
Restrictions 6220-01-586-6266
6220-01-586-6266 is a Light Emitting Diode Lamp that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.
Import and Export 6220-01-586-6266
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 6220-01-586-6266
- US Army (A920)
- Effective Date:
- 1 Jul 2010
- Supplementary Receivers:
- AZ
- US Air Force (FXGI)
- Effective Date:
- 1 Jul 2010
- US Marine Corps (MC47)
- Effective Date:
- 1 Jul 2010
Approved Sources 6220-01-586-6266
- Part Number
- Manufacturer
- Status
- 07303
- Manufacturer
- 13548 - Truck-Lite Co., Llc (Active)
- Primary Buy
- Primary Buy
- 3708029C1
- 338X5 - Nd Defense Llc (Active)
- Secondary Buy
- Secondary Buy
DLA Procurement Analysis 6220-01-586-6266
- Last Stock Position:
- 133 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 6220-01-586-6266
Army
- Materiel Category and Inventory Manager:
- J
- Ground Forces Support Materiel (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Marine Corps
- Stores Account:
- 1
- Stock Fund Account Item
- Combat Essentiality:
- 5
- Critical Repair Part to a Combat Essential End Item
- Echelon Management:
- B2
- Operational Test:
- No Special Procedures
Similar Supply Items to 6220-01-586-6266
Freight Information 6220-01-586-6266
6220-01-586-6266 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 109700. A Sub NMFC of Z. It has a NMFC Description of LAMP OR LIGHTING FIXTURES. 6220-01-586-6266 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 55690 which rates the freight between FCL and LCL. 6220-01-586-6266 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 761 for ocean manifesting and military sealift. 6220-01-586-6266 is not classified as a special type of cargo when transported by water. 6220-01-586-6266 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 6220-01-586-6266
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Plated/Coated Item
- 2lb or less, one dimension 2" or less, other dimensions less than 24"
- Above 110G
- Special Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- --
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- MIL-DTL-17667, Neutral Wrapping Paper
- No Requirement
- Not Applicable
- --
- No special marking
- MIL-DTL-17667, Neutral Wrapping Paper
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
Contracting Technical Data File (CTDF) 6220-01-586-6266 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- N
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
