6220-00-878-7301

Electric Floodlight

6220008787301 008787301 LA1133 928911 8739551 56Z233 424MBG1 A-A-52498-1 TC15-1457 MS51320-1

An item which conforms to Light (1), and is designed to project a broad beam of light for relatively even illumination over a wide area. It must include reflector(s) and mounting facilities and may include accessories. Excludes items which can be adjusted to function as a SEARCHLIGHT or a SPOTLIGHT. See also SEARCHLIGHT; SPOTLIGHT and LIGHT, PHOTOGRAPHIC. View more Electric Floodlight

Managed by United States

NSN Created on 1 Jan 1962

Data Last Changed
October 2025

NATO Update Count
40

NATO Data Quality

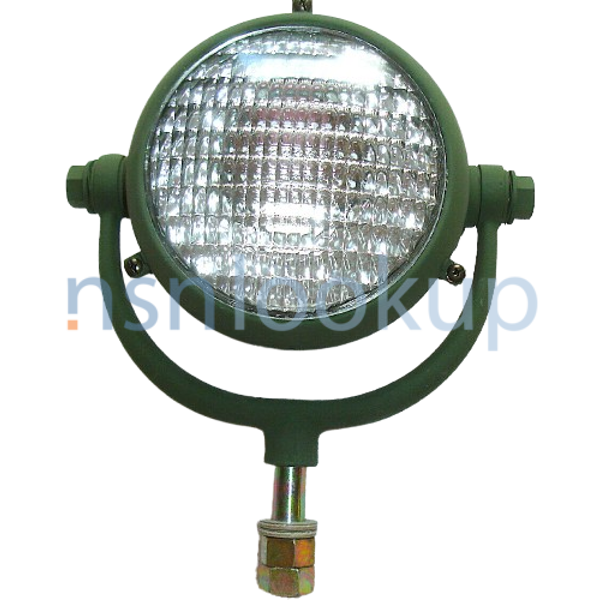

6220-00-878-7301 FLOODLIGHT,ELECTRIC 6220008787301 008787301 1/1 — 6220-00-878-7301 Photo 1/1

Marketplace 6220-00-878-7301

Need Help?
Request a Quotation from participating marketplace vendors

Subscribe to View Vendor Details...

8-73955-1 FLOODLIGHT,ELECTRIC 3 EA NS

Subscribe to View Vendor Details...

8739551 FLOODLIGHT,ELECTRIC RQST NS

Subscribe to View Vendor Details...

8739551 / MS51320-1 FLOODLIGHT,ELECTRIC 16 EA NS

Subscribe to View Vendor Details...

8739551 FLOODLIGHT,ELECTRIC 9 EA NS

Subscribe to View Vendor Details...

8734551 FLOODLIGHT,ELECTRIC 7 EA NS

Subscribe to View Vendor Details...

FLOODLIGHTWYSUPPORT FLOODLIGHT,ELECTRIC RQST NS

Subscribe to View Vendor Details...

8739551 FLOODLIGHT,ELECTRIC 3 EA NS

Subscribe to View Vendor Details...

008787301.6220 FLOODLIGHT,ELECTRIC 6 EA NS

Updated Every 15 Minutes

6220-00-878-7301 BUY NE

Updated Every Day

928911 RQST NE

Updated Every Day

6220-00-878-7301 RQST NE

Updated Every Day

6220-00-878-7301 RQST

Updated Every Day

6220-00-878-7301 RQST NE

Restrictions 6220-00-878-7301

6220-00-878-7301 is a Electric Floodlight that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. The precious metals content of this item is unknown.

Import and Export 6220-00-878-7301

Schedule B: Subscribe to View Schedule B
HTS Code: Subscribe to View HTS Code

End Users 6220-00-878-7301

US Army (A920)
Effective Date:: 1 May 2006
Former MOE Rule:: A186
Supplementary Receivers:: AZBFBD; AMC 1 AMSC Z IMC Z IMCACTY CD

US Air Force (FXGI)
Effective Date:: 1 May 2006
Former MOE Rule:: FXKZ; AMC 1 AMSC Z IMC Z IMCACTY SX

US Marine Corps (MC47)
Effective Date:: 1 May 2006
Former MOE Rule:: MC10; AMC 1 AMSC Z IMC Z IMCACTY PA

US Navy (N9BZ)
Effective Date:: 1 May 2006
Former MOE Rule:: N9ZD
Supplementary Collaborators:: GTHD; AMC 1 AMSC Z IMC Z IMCACTY GH

Brazil (YA01)
Effective Date:: 1 Jan 2002

Spain (YB01)
Effective Date:: 1 Feb 1994

Singapore (YJ01)
Effective Date:: 1 Apr 1991

Morocco (YP01)
Effective Date:: 1 Nov 2008

Malaysia (YW01)
Effective Date:: 1 Mar 1997

Australia (ZA01)
Effective Date:: 1 Apr 1991

Belgium (ZB01)
Effective Date:: 1 Apr 1991

Canada (ZC01)
Effective Date:: 1 Apr 1991

New Zealand (ZE01)
Effective Date:: 1 Apr 1991

Republic of Korea (ZH01)
Effective Date:: 1 Apr 1991

United Kingdom (ZK01)
Effective Date:: 1 Feb 2011

Netherlands (ZN01)
Effective Date:: 1 Apr 1991

Portugal (ZP01)
Effective Date:: 1 Apr 1991

Denmark (ZS01)
Effective Date:: 1 Apr 1991

Norway (ZT01)
Effective Date:: 1 Apr 1991

Greece (ZU01)
Effective Date:: 1 Apr 1991

Turkey (ZW01)
Effective Date:: 1 Aug 1999

Approved Sources 6220-00-878-7301

Part Number
Manufacturer
Status
A-A-52498-1: 58536 - Federal Commercial Item Description (Active); Definitive Standard; RNCC 2 RNVC 2 DAC E
LA1133: 13841 - Tiffin Parts, L.L.C. (Active); Incomplete Secondary Reference; RNCC 5 RNVC 1 DAC 5
928911: 24617 - General Motors Corp (Active); Incomplete Secondary Reference; RNCC 5 RNVC 1 DAC 5
8739551: 0FW39 - Bae Systems Tactical Vehicle Systems (Active); Incomplete Secondary Reference; RNCC 5 RNVC 1 DAC 5
8739551: 19207 - U S Army Tank Automotive Command (Active); Incomplete Secondary Reference; RNCC 5 RNVC 1 DAC 1
56Z233: 27315 - Morris Material Handling, Inc. (Active); Incomplete Secondary Reference; RNCC 5 RNVC 1 DAC 5
928911: 73331 - General Motors Corp Fisher Guide Div (Obsolete); Incomplete Secondary Reference; RNCC 5 RNVC 1 DAC 5
TC15-1457: 03677 - Anthony York Co (Obsolete); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
424MBG1: 05415 - Linde Lift Truck Corp. (Replaced); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
6220008787301: SCY13 - E.C.A Etablissement (Replaced); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 9
LA1133: 46717 - Pettibone Llc (Obsolete); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
MS51320-1: 96906 - Military Standards (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 4
928911: 97907 - Terex Corp (Obsolete); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
424MBG1: 556A6 - Linde Material Handling North (Active); Advisory Reference; RNCC C RNVC 1 DAC 5

Datasheet 6220-00-878-7301

Characteristic
Specifications
FIIG: A06300
End Item Identification [AGAV]: Austin Ship Class Lpd-4 Amphibious Transport Docks; Truck, Cargo, 5-Ton, 6X6, Xlwb W/E; Cargo System, 463L; Assault Amphibious Vehicle, Command (Aavc-7A1); Shipboard Material Handling Equipment (Mhe); Lav, Anti-Tank; Family Of Medium Tactical Vehicles-Medium; Wasp Class Lhd; Truck, Wrecker, 5-Ton (M936)
Departure From Cited Document [ZZZW]: As Modified By Theadapter Kit
Furnished Items And Quantity [TMQY]: 1 Lamp
Features Provided [CBBL]: Switch
Hazardous Locations/Environmental Protection [ABFE]: Any Acceptable
Material [MATT]: Any Acceptable Body
Mounting Method [AXGY]: Threaded Stud
Lamp Base Type Accommodated [AEUJ]: Two Screw Terminals
Lamp Type Accommodated And Quantity [CRHX]: 1 Incandescent
Light Beam Motion [AEYM]: Fixed
Reflector Inclosure Type [AFKE]: Inclosed Singular
Reflector Shape [AEYW]: Parabolic
Shape [SHPE]: Irregular
Overall Diameter [ADAV]: 6.250 Inches Nominal
Overall Height [ABKW]: 11.500 Inches Nominal
Overall Length [ABHP]: 5.250 Inches Nominal
Overall Width [ABMK]: 9.000 Inches Nominal
Special Features [FEAT]: Furnished W/Adapter Kit,Ordnance Part No. 10944440
Voltage Rating In Volts [ASXH]: 24.0 Dc Nominal
Surface Treatment [SFTT]: Any Acceptable Body
Terminal Type And Quantity [TTQY]: 2 Connector, Plug

Weapon Systems (WSDC) 6220-00-878-7301

Subscribe
View WSDC

Subscribe to View Weapon System Codes...

Subscribe
View Data

DLA Procurement Analysis 6220-00-878-7301

Last Stock Position:: 3983 In Stock
DLA Administrative Lead Time:: Subscribe
DLA Production Lead Time:: Subscribe

Subscribe to View DLA Inventory and Forecast...

Management Data 6220-00-878-7301

Subscribe
View Prices

Effective Date: Organization; Unit of Issue; Unit Price; Qty Unit Pack
Oct 2022: Department of the Air Force (DF); EA; Subscribe; 1
Oct 2021: Department of the Air Force (DF); EA; Subscribe; 1
Oct 2020: Department of the Air Force (DF); EA; Subscribe; 1
Oct 2019: Department of the Army (DA); EA; Subscribe; 1

MOE: USC; Code; Statement; Order of Use; Jump To Code; Qty Per Assy; UOM; Technical Document; Quantative Expression
US Marine Corps (DM): M; 0; Reversal Of Phrase Code Z 6220-01-586-5448

Army

Materiel Category and Inventory Manager:

J: Ground Forces Support Materiel (DLA/GSA Items)

Appropriation and Budget Activity:

2: Stock Fund Secondary Items

Management Inventory Segment:

2: Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.

Weapons System / End Item / Homogeneous Group:

00: DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item

Accounting Requirements:

X: Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.

Navy

Cognizance:

9B: Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg

Marine Corps

Stores Account:

1: Stock Fund Account Item

Combat Essentiality:

5: Critical Repair Part to a Combat Essential End Item

Echelon Management:

B2

Material Identification:

B: Consumable Repair Parts

Operational Test:

: No Special Procedures

Physical Category:

1: Bin

Similar Supply Items to 6220-00-878-7301

Freight Information 6220-00-878-7301

6220-00-878-7301 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 109700. A Sub NMFC of Z. It has a NMFC Description of LAMP OR LIGHTING FIXTURES. 6220-00-878-7301 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 55690 which rates the freight between FCL and LCL. 6220-00-878-7301 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 761 for ocean manifesting and military sealift. 6220-00-878-7301 is not classified as a special type of cargo when transported by water. 6220-00-878-7301 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.

Packaging Data 6220-00-878-7301

Responsible Activity
Packaging Data Source: Primary Inventory Control Activity (PICA); --

Item Pack Level (Unpackaged)

Item Size
Item Weight
Characteristics
Weight/Dimensions Category
Fragility
Item Preservation: --; --; Electrical Instrument; Over 10lb; Less than 85G; No Requirement

Unit Pack Level (Packaged)

Quantity per Pack
Unit Size
Unit Weight
Unit Cube
Preservation Method
Cleaning/Drying: 1; --; --; --; Physical Protection; Any Suitable Process

Preservation Material
Wrapping Material
Cushioning/Dunnage
Cushioning Thickness
Container
Special Marking: No Requirement; --; A-A-1898, Grade II, Water Resistant Cellulosic Cushioning; --; PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box; Fragile

Intermediate Pack Level

Quantity of Unit Packs
Container: --

Contracting Technical Data File (CTDF) 6220-00-878-7301 October 2021

Criticality and Quality

Critical Item Code:
Flight Safety:
Life Support:
Certified Samples:
Serialization:
First Article Test (FAT):
Certificate of Quality Compliance:
Production Lot Testing:
Special Testing:
Qualified Products List (QPL):

Commercial Properties

Government Furnished Material:
Government Furnished Tooling:
Government Furnished Property:
Price Evaluation Code:
Diminshing Manufacturing Sources:
Warranty:
Commerical Off The Shelf (COTS):
End Item Application:
Auctioning Candidate:
Source of Procurement:
Contract Option:

Restrictions

Boeing Rights Guard:
Export Controlled:
Controlled Technical Data Package (TDP):
Restricted Technical Data Package (TDP):
Contains Classified Material
Weapons System Indicator Code (WSIC):: F

Packaging Requirements

Packaging Determination Table:
Packaging Review Code:: N
Special Packaging Instruction Number (SPIN):
Special Packaging Instruction Number Revision:
Special Packaging Instruction Number Date:
Pallet Reference Number Required:
