6210-01-615-2044
Light Emitting Diode Lamp
6210016152044 016152044 AL6H-P4P-W 3005512 REV C FIND NO. 38
An electric light that uses one or more light-emitting diodes (LEDs as the source of light. View more Light Emitting Diode Lamp
May 2023
1
Marketplace 6210-01-615-2044
Request a Quotation from participating marketplace vendors
Related Documents 6210-01-615-2044 2+ Documents (More...)
BUY NE FedMall Updated Every Day 6210-01-615-2044 RQST NE Updated Every Day 6210-01-615-2044 RQST
Updated Every Day 6210-01-615-2044 RQST NE Related Documents 6210-01-615-2044 2+ Documents ( More...
Light Emitting Diode Lamp 6210016152044 your Account Upgrade 6210-01-615-2044Light Emitting Diode
Lamp6210016152044 016152044 AL6H-P4P-W 3005512 Documents 6210-01-615-2044 2+ Documents ( More... https
Restrictions 6210-01-615-2044
6210-01-615-2044 is a Light Emitting Diode Lamp that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 6210-01-615-2044
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 6210-01-615-2044
- US Navy (N9BZ)
- Effective Date:
- 1 Jan 2013
- Supplementary Collaborators:
- HD
Approved Sources 6210-01-615-2044
- Part Number
- Manufacturer
- Status
- AL6H-P4P-W
- Manufacturer
- 60886 - Idec Systems And Controls Corp (Active)
- Primary Buy
- Primary Buy
- 3005512 REV C FIND NO. 38
- 5JNL2 - Naiad Dynamics Us Inc (Active)
- Secondary Buy
- Secondary Buy
Datasheet 6210-01-615-2044
- Characteristic
- Specifications
- FIIG
- Specifications
- A07900

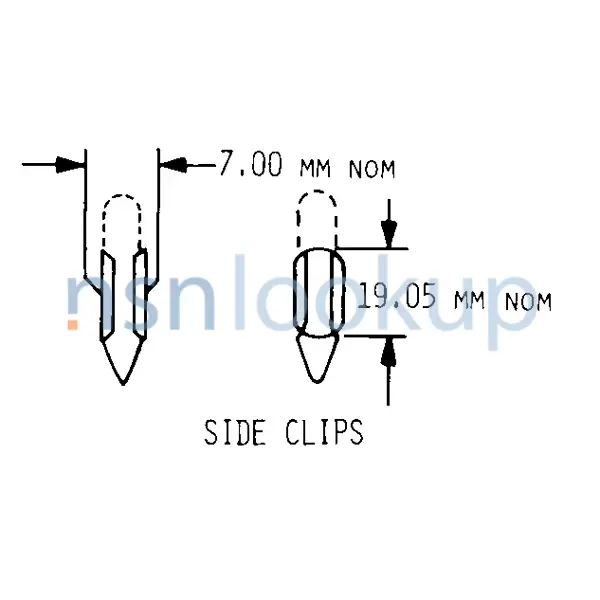

- Base Style [CRPS]
- Side Clips
- Bulb Style [CRSK]
- Rec (Rectangular, Aluminized Reflector)
- Bulb Designator [CSJW]
- A6
- Overall Length [ABHP]
- 1.22 Millimeters Nominal
- Emitted Light Characteristic [AGDV]
- White, Warm
- Voltage Rating [AMSE]
- 24.0 Volts Nominal
- Special Features [FEAT]
- Height:0.71 Inches; Width: 0.94 Inches
- End Item Identification [AGAV]
- Ecu,Intercept
DLA Procurement Analysis 6210-01-615-2044
Management Data 6210-01-615-2044
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 6210-01-615-2044
Freight Information 6210-01-615-2044
6210-01-615-2044 has freight characteristics managed by the Food and Drug Administration (FDA).It has a National Motor Freight Classification (NMFC) of 109700. A Sub NMFC of Z. It has a NMFC Description of LAMP OR LIGHTING FIXTURES. 6210-01-615-2044 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 55690 which rates the freight between FCL and LCL. 6210-01-615-2044 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 761 for ocean manifesting and military sealift. 6210-01-615-2044 is not classified as a special type of cargo when transported by water. 6210-01-615-2044 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 6210-01-615-2044
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Bare Metal Item
- 2lb or less, one dimension 2" or less, other dimensions less than 24"
- Above 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- --
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- MIL-DTL-17667, Neutral Wrapping Paper
- No Requirement
- Not Applicable
- --
- No special marking
- MIL-DTL-17667, Neutral Wrapping Paper
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
Contracting Technical Data File (CTDF) 6210-01-615-2044 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- F
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
