6210-01-478-6973
Indicator Light
6210014786973 014786973 3LF4NRB5-12 1839-X-10-20110.0001 39UG18-2311-13 13230E6229 FL2950WL8R W/12IN LEADS 56B0F2SF96WB9SP
A light, with mounting facilities furnished, designed to convey information of a specific nature concerning the circuit in which inserted. Must include or provide for the use of a lens as a part of it. For items without a lens, see LAMPHOLDER, and also see LIGHT (1), PANEL. View more Indicator Light
November 2023
7
Marketplace 6210-01-478-6973
Request a Quotation from participating marketplace vendors
Related Documents 6210-01-478-6973 2+ Documents (More...)
United States (US) 4. 6210-01-478-6973 Marketplace Restrictions Approved Sources Datasheet Management
284 EA NS Request Quotation FedMall Updated Every 15 Minutes 6210-01-478-6973 BUY NE FedMall Updated
Indicator Light 6210014786973 014786973 Minutes 6210-01-478-6973 BUY NE FedMall Updated https//
Restrictions 6210-01-478-6973
6210-01-478-6973 is a Indicator Light that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 6210-01-478-6973
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 6210-01-478-6973
- US Army (A920)
- Effective Date:
- 1 May 2006
- Former MOE Rule:
- A186
- Supplementary Receivers:
- BDCL
Approved Sources 6210-01-478-6973
- Part Number
- Manufacturer
- Status
- 3LF4NRB5-12
- Manufacturer
- 51054 - Sorenson Lighted Controls Inc (Active)
- Primary Buy
- Primary Buy
- 1839-X-10-20110.0001
- 51054 - Sorenson Lighted Controls Inc (Active)
- Primary Buy
- Primary Buy
- 39UG18-2311-13
- 95263 - Lighting Components And Design (Active)
- Secondary Buy
- Secondary Buy
- FL2950WL8R W/12IN LEADS
- 63006 - Arcolectric Corp (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 56B0F2SF96WB9SP
- 0CY71 - C And K Components Inc Unimax Div (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- 13230E6229
- 97403 - Cecom Lr Center (Active)
- Vendor Drawing
- Vendor Drawing
Datasheet 6210-01-478-6973
- Characteristic
- Specifications
- FIIG
- Specifications
- A065A0

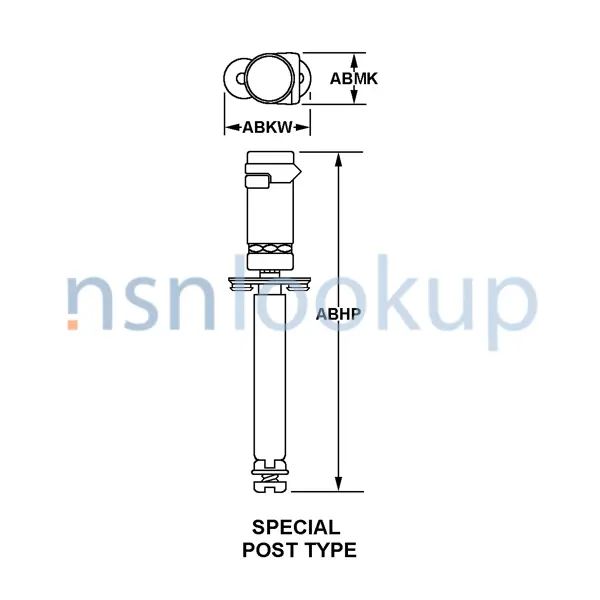

- Style Designator [STYL]
- Special Post Type
- Overall Length [ABHP]
- 1.560 Inches Nominal
- Overall Height [ABKW]
- 0.370 Inches Nominal
- Overall Width [ABMK]
- 0.310 Inches Nominal
- Material [MATT]
- Plastic Polyamide Body
- Lamp Type Accommodated And Quantity [CRHX]
- 1 Incandescent
- Lamp Bulb Size Designator [AEWU]
- T-10
- Lamp Base Type Accommodated [AEUJ]
- Wire Terminals, Down
- Lens Quantity [AEXC]
- 1
- Lens Type [CRQG]
- Flat, Edge Single Light 1St Position Horizontal
- Lens Face Surface Condition [CWJJ]
- Faceted Single Light 1St Position Horizontal
- Lens Color [AEXD]
- Red Single Light 1St Position Horizontal
- Transmitted Light Color [CTDS]
- Red Single Light 1St Position Horizontal Full Display Division A
- Mounting Method [AXGY]
- Panel
- Panel Accommodation Hole Diameter [AEXZ]
- 0.370 Inches Nominal
- Panel Thickness For Which Designed [BZWG]
- 0.125 Inches Maximum
- Terminal Type And Quantity [TTQY]
- 2 Wire Lead
- Special Features [FEAT]
- Lens Face Surface Condition Details: Diamond Faceted Diffusing Pattern; Material: Nylon 6/6
Weapon Systems (WSDC) 6210-01-478-6973
DLA Procurement Analysis 6210-01-478-6973
- Last Stock Position:
- 569 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 6210-01-478-6973
Army
- Materiel Category and Inventory Manager:
- J
- Ground Forces Support Materiel (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
NATO Stock Numbers Related to 6210-01-478-6973
Freight Information 6210-01-478-6973
6210-01-478-6973 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 109700. A Sub NMFC of Z. It has a NMFC Description of LAMP OR LIGHTING FIXTURES. 6210-01-478-6973 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 55690 which rates the freight between FCL and LCL. 6210-01-478-6973 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 761 for ocean manifesting and military sealift. 6210-01-478-6973 is not classified as a special type of cargo when transported by water. 6210-01-478-6973 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 6210-01-478-6973
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Electrical Instrument
- Over 10lb
- Less than 85G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- --
- A-A-1898, Grade II, Water Resistant Cellulosic Cushioning
- --
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
- No special marking
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- --
Procurement History 6210-01-478-6973 1 Records
Contracting Technical Data File (CTDF) 6210-01-478-6973 October 2021
Criticality and Quality
- Critical Item Code:
- X
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- F
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
