6210-00-859-0465
Light Reflector
6210008590465 008590465 8015874
An opaque item for a light source with an inside surface of high polish or luster designed to confine, reflect and redirect light rays in a specific area or direction. Does not include lampholder. For combination guard and reflector, see GUARD, LAMP. View more Light Reflector
January 2023
20
Marketplace 6210-00-859-0465
Request a Quotation from participating marketplace vendors
Related Documents 6210-00-859-0465 1+ Documents (More...)
United States (US) 4. 6210-00-859-0465 Marketplace Restrictions Approved Sources Datasheet Management
RQST NE Updated Every Day 6210-00-859-0465 RQST Updated Every Day 6210-00-859-0465 RQST NE Related Documents
Restrictions 6210-00-859-0465
6210-00-859-0465 is a Light Reflector that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 6210-00-859-0465
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 6210-00-859-0465
- Spain (YB01)
- Effective Date:
- 1 Oct 2008
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- Italy (ZR01)
- Effective Date:
- 1 Dec 2007
Approved Sources 6210-00-859-0465
- Part Number
- Manufacturer
- Status
- 8015874
- Manufacturer
- 18876 - Us Army Aviation And Missile Command (Active)
- Primary Buy
- Primary Buy
Datasheet 6210-00-859-0465
- Characteristic
- Specifications
- FIIG
- Specifications
- T316-D
- Corrugated Reflecting Surface [ARQR]
- Not Included
- Material [MATT]
- Aluminum Alloy
- Inside Surface Treatment [AAJQ]
- Painted
- Lampholder Opening Dimension [ARRA]
- 0.140 In. Min,0.156 In. By 0.188 In. Size
- Lampholder Opening Location [ARQZ]
- Center
- Overall Diameter [ADAV]
- 2.094 Inches Nominal
- Overall Length [ABHP]
- 2.500 Inches Nominal

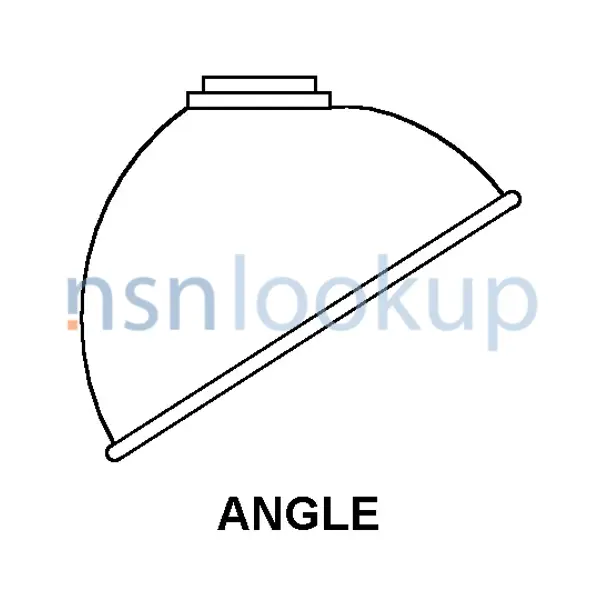

- Style Designator [STYL]
- Angle
- Surface Treatment [SFTT]
- Paint
Similar Supply Items to 6210-00-859-0465
Freight Information 6210-00-859-0465
6210-00-859-0465 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 109091. A Sub NMFC of X. It has a NMFC Description of DIFFUSER/GLOBE/REFLECTOR/ETC. 6210-00-859-0465 is rated as class 250 when transported by Less-Than Truckload (LTL) freight. 6210-00-859-0465 is rated as a variable freight class when transported by Less-Than Carload (LCL) rail or ocean freight. It has a Uniform Freight Classification (UFC) number of 46530 which rates the freight between FCL and LCL. 6210-00-859-0465 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 72D for ocean manifesting and military sealift. 6210-00-859-0465 is not classified as a special type of cargo when transported by water. 6210-00-859-0465 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
