6210-00-699-9457

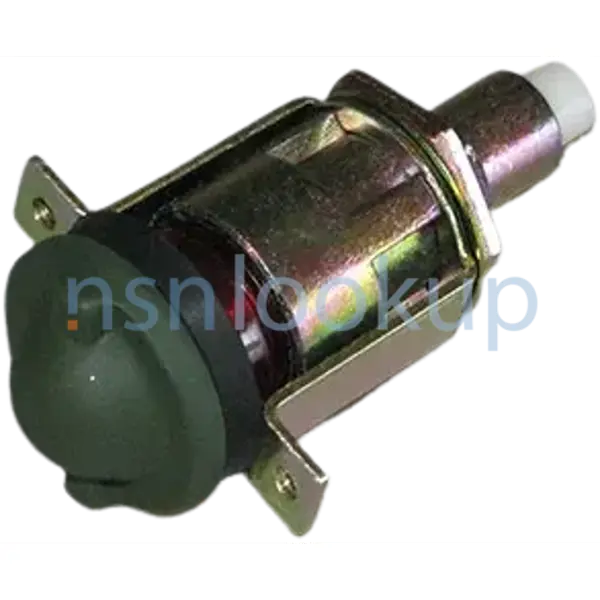

Red Dash Light Assembly

6210006999457 006999457 8376499 1582726 123982H1 7971111-2 16B1582726 816007 F10241-2 4202246 7971111

A light, with mounting facilities furnished, designed to convey information of a specific nature concerning the circuit in which inserted. Must include or provide for the use of a lens as a part of it. For items without a lens, see LAMPHOLDER, and also see LIGHT (1), PANEL. View more Indicator Light

Managed by United States

NSN Created on 1 Jan 1963

Data Last Changed
March 2025

NATO Update Count
64

NATO Data Quality

6210-00-699-9457 DASH LIGHT ASSEMBLY,RED 6210006999457 006999457 1/2 — 6210-00-699-9457 Photo 1/2

STYL Style A1 for 6210-00-699-9457 2/2 — NSN 6210-00-699-9457 (Identification) 2/2

Marketplace 6210-00-699-9457

Need Help?
Request a Quotation from participating marketplace vendors

Subscribe to View Vendor Details...

8376499 DASH LIGHT ASSEMBLY,RED 17 EA NS

Subscribe to View Vendor Details...

6210-00-699-9457 DASH LIGHT ASSEMBLY,RED 1 EA NS

Subscribe to View Vendor Details...

8376499 DASH LIGHT ASSEMBLY,RED 99 EA NS

Subscribe to View Vendor Details...

4202246 DASH LIGHT ASSEMBLY,RED 5 EA NS

816007 DASH LIGHT ASSEMBLY,RED 5 EA NS

1582726 DASH LIGHT ASSEMBLY,RED 5 EA NS

Subscribe to View Vendor Details...

8376499 DASH LIGHT ASSEMBLY,RED 125 EA NS

Subscribe to View Vendor Details...

7971111 DASH LIGHT ASSEMBLY,RED 30 EA NS

8376499 DASH LIGHT ASSEMBLY,RED 37 EA NS

Subscribe to View Vendor Details...

8376499 DASH LIGHT ASSEMBLY,RED 10 EA NS

Subscribe to View Vendor Details...

6210-00-699-9457 LIGHT, INSTR. PANEL 141 EA NS

Subscribe to View Vendor Details...

8376499 DASH LIGHT ASSEMBLY,RED 153 EA NS

Subscribe to View Vendor Details...

8376499 DASH LIGHT ASSEMBLY,RED 1 EA NS

Subscribe to View Vendor Details...

006999457.6210 DASH LIGHT ASSEMBLY,RED 20 EA NS

1549159 DASH LIGHT ASSEMBLY,RED 141 EA NS

Subscribe to View Vendor Details...

8376499 DASH LIGHT ASSEMBLY,RED 15 EA NS

Subscribe to View Vendor Details...

6210-00-699-9457 DASH LIGHT ASSEMBLY,RED 10 EA NS

6210-00-699-9457 RQST NE

Updated Every Day

6210-00-699-9457 RQST

Updated Every Day

6210-00-699-9457 RQST NE

Restrictions 6210-00-699-9457

6210-00-699-9457 is a Red Dash Light Assembly that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.

Import and Export 6210-00-699-9457

Schedule B: Subscribe to View Schedule B
HTS Code: Subscribe to View HTS Code

End Users 6210-00-699-9457

US Army (A920)
Effective Date:: 1 May 2006
Former MOE Rule:: A186
Supplementary Receivers:: AZBFBD; AMC 1 AMSC G IMC Z IMCACTY CD

US Air Force (FXGI)
Effective Date:: 1 May 2006
Former MOE Rule:: FXKZ; AMC 1 AMSC G IMC Z IMCACTY SX

US Marine Corps (MC47)
Effective Date:: 1 May 2006
Former MOE Rule:: MC10; AMC 1 AMSC G IMC Z IMCACTY PA

US Navy (N9BZ)
Effective Date:: 1 May 2006
Former MOE Rule:: N9ZD
Supplementary Collaborators:: GTKEHD; AMC 1 AMSC G IMC Z IMCACTY GH

Austria (WB01)
Effective Date:: 1 Feb 2005

Lithuania (WI01)
Effective Date:: 1 Jan 2002

Brazil (YA01)
Effective Date:: 1 Jan 2002

Spain (YB01)
Effective Date:: 1 Apr 1991

Israel (YD01)
Effective Date:: 1 Sep 2016

Singapore (YJ01)
Effective Date:: 1 Apr 1991

Kuwait (YK01)
Effective Date:: 1 Feb 2015

Morocco (YP01)
Effective Date:: 1 Nov 2008

Malaysia (YW01)
Effective Date:: 1 Mar 1997

Australia (ZA01)
Effective Date:: 1 Apr 1991

Belgium (ZB01)
Effective Date:: 1 Apr 1991

Canada (ZC01)
Effective Date:: 1 Apr 1991

Germany (ZG01)
Effective Date:: 1 Apr 1991

Republic of Korea (ZH01)
Effective Date:: 1 Apr 1991

Netherlands (ZN01)
Effective Date:: 1 Apr 1991

Portugal (ZP01)
Effective Date:: 1 Apr 1991

Italy (ZR01)
Effective Date:: 1 Feb 2009

Denmark (ZS01)
Effective Date:: 1 Apr 1991

Greece (ZU01)
Effective Date:: 1 Aug 1995

Turkey (ZW01)
Effective Date:: 1 Aug 1993

Approved Sources 6210-00-699-9457

Part Number
Manufacturer
Status
7971111-2: 19207 - U S Army Tank Automotive Command (Active); Primary Buy; RNCC 3 RNVC 2 DAC 1
8376499: 19207 - U S Army Tank Automotive Command (Active); Primary Buy; RNCC 3 RNVC 2 DAC A
16B1582726: 23382 - Fwd Seagrave Holdings Lp (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 5
816007: 02280 - American Hoist And Derrick Co (Obsolete); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
F10241-2: 46717 - Pettibone Llc (Obsolete); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 2
4202246: 34161 - Koehring Co (Obsolete); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 6
8376499: 70040 - General Motors Llc (Obsolete); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 6
4202246: 8E499 - Koehring Cranes And Excavators Inc (Obsolete); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 6
6210006999457: SCY13 - E.C.A Etablissement (Replaced); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 9
816007: 49185 - Terex American Crane Corp (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
1582726: 70040 - General Motors Llc (Obsolete); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
8376499: T0720 - Fnss Savunma Sistemleri Anonim (Active); NATO Reproduction; RNCC 8 RNVC 2 DAC 6
8376499: 7X677 - General Motors Llc (Active); Advisory Reference; RNCC C RNVC 1 DAC 6
1582726: 7X677 - General Motors Llc (Active); Advisory Reference; RNCC C RNVC 1 DAC 5
F10241-2: 13841 - Tiffin Parts, L.L.C. (Active); Advisory Reference; RNCC C RNVC 1 DAC 6
123982H1: 29510 - Komatsu American Intl Co (Replaced); Advisory Reference; RNCC C RNVC 1 DAC 6
7971111: 19207 - U S Army Tank Automotive Command (Active); Informational Drawing; RNCC D RNVC 9 DAC 1

Datasheet 6210-00-699-9457

Characteristic
Specifications
FIIG: A065A0
Furnished Items And Quantity [TMQY]: 1 Flat Washer And 1 Gasket And 1 Hexagon Nut
Hazardous Locations/Environmental Protection [ABFE]: Fungus Resistant And Waterproof
Material [MATT]: Copper Alloy Body
Mounting Method [AXGY]: Bracket
Lamp Base Type Accommodated [AEUJ]: Miniature Bayonet
Lamp Bulb Size Designator [AEWU]: T-3 1/4
Lamp Industry Number [AFAX]: 1829
Lamp Type Accommodated And Quantity [CRHX]: 1 Incandescent
Lens Color [AEXD]: Red Single Light 1St Position Horizontal
Lens Face Surface Condition [CWJJ]: Smooth Single Light 1St Position Horizontal
Lens Back Surface Condition [CTRM]: Smooth Single Light 1St Position Horizontal
Lens Light Transmission Characteristic [CSKH]: Transparent Single Light 1St Position Horizontal
Lens Mounting Method [ATAS]: Screw In
Lens Quantity [AEXC]: 1
Lens Type [CRQG]: Dome, Knurled, Threaded Shank Single Light 1St Position Horizontal
Overall Diameter [ADAV]: 1.125 Inches Nominal
Overall Length [ABHP]: 3.000 Inches Nominal
Panel Accommodation Hole Diameter [AEXZ]: 1.000 Inches Nominal
Transmitted Light Color [CTDS]: Red Single Light 1St Position Horizontal Full Display Division A
Style Designator [STYL]: Round Frame, Round Lens Type
Terminal Type And Quantity [TTQY]: 1 Quick Disconnect, Male

Weapon Systems (WSDC) 6210-00-699-9457

Subscribe
View WSDC

Subscribe to View Weapon System Codes...

Subscribe
View Data

DLA Procurement Analysis 6210-00-699-9457

Last Stock Position:: 397 In Stock
DLA Administrative Lead Time:: Subscribe
DLA Production Lead Time:: Subscribe

Subscribe to View DLA Inventory and Forecast...

Management Data 6210-00-699-9457

Subscribe
View Prices

Effective Date: Organization; Unit of Issue; Unit Price; Qty Unit Pack
Oct 2022: Department of the Navy (DN); EA; Subscribe; 1
Oct 2021: Department of the Air Force (DF); EA; Subscribe; 1
Apr 2021: Department of the Air Force (DF); EA; Subscribe; 1
Oct 2020: US Marine Corps (DM); EA; Subscribe; 1
Oct 2019: Department of the Air Force (DF); EA; Subscribe; 1

MOE: USC; Code; Statement; Order of Use; Jump To Code; Qty Per Assy; UOM; Technical Document; Quantative Expression
US Marine Corps (DM): M; 0; Reversal Of Phrase Code Z 6210-00-174-1375
US Marine Corps (DM): M; 4; Reversal Of Phrase Code A 6240-01-508-5347

Army

Materiel Category and Inventory Manager:

J: Ground Forces Support Materiel (DLA/GSA Items)

Appropriation and Budget Activity:

2: Stock Fund Secondary Items

Management Inventory Segment:

2: Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.

Weapons System / End Item / Homogeneous Group:

00: DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item

Accounting Requirements:

X: Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.

Air Force

Fund:

SF: Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point

Budget:

9: 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors

Aggregation Code:

SX: SICA RESIDUAL MMAC-OC-ALC

Price Validation Code:

V: The current standard price has been validated.
The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range.
The item was procured under open competition and under the competitive arena the price is considered fair and reasonable.
ZOP or Standard price challenges are permissible but must be supported by adequate justification.

Expendability Recoverability Repairability:

N: Expendable. Condemn at User. Stock Fund (except Munitions).

Navy

Cognizance:

9B: Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg

Marine Corps

Stores Account:

1: Stock Fund Account Item

Combat Essentiality:

5: Critical Repair Part to a Combat Essential End Item

Echelon Management:

B2

Material Identification:

B: Consumable Repair Parts

Operational Test:

: No Special Procedures

NATO Stock Numbers Related to 6210-00-699-9457

6220-22-617-3704 6210-99-782-1917 6210-99-668-9650 6210-99-541-0887 6210-21-880-4947 6210-99-527-6041 6220-21-908-7994 6210-12-321-2435 6210-21-841-3648 6210-99-949-2416 6210-12-340-3745 6210-12-172-7940 6210-99-107-2214 6210-14-564-4846 6210-27-053-7935 6210-12-136-1579 6210-99-588-2215 6210-12-366-5112

Freight Information 6210-00-699-9457

6210-00-699-9457 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 109700. A Sub NMFC of Z. It has a NMFC Description of LAMP OR LIGHTING FIXTURES. 6210-00-699-9457 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 55690 which rates the freight between FCL and LCL. 6210-00-699-9457 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 761 for ocean manifesting and military sealift. 6210-00-699-9457 is not classified as a special type of cargo when transported by water. 6210-00-699-9457 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.

Packaging Data 6210-00-699-9457

Responsible Activity
Packaging Data Source: Primary Inventory Control Activity (PICA); --

Item Pack Level (Unpackaged)

Item Size
Item Weight
Characteristics
Weight/Dimensions Category
Fragility
Item Preservation: --; --; Electrical Instrument; Over 10lb; Less than 85G; No Requirement

Unit Pack Level (Packaged)

Quantity per Pack
Unit Size
Unit Weight
Unit Cube
Preservation Method
Cleaning/Drying: 1; --; --; --; Physical Protection; Any Suitable Process

Preservation Material
Wrapping Material
Cushioning/Dunnage
Cushioning Thickness
Container
Special Marking: No Requirement; --; A-A-1898, Grade II, Water Resistant Cellulosic Cushioning; --; PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box; No special marking

Intermediate Pack Level

Quantity of Unit Packs
Container: --

Procurement History 6210-00-699-9457 19 Records

Subscribe
View Prices

Contract: Date; CAGE; Quantity; Net Price; Std Price
SPE4A622F195V: 22 Jun 2022; Subscribe; 141; Subscribe; Subscribe
SPE4A622F195V: 22 Jun 2022; Subscribe; 141; Subscribe; Subscribe
SPE4A622F155W: 25 May 2022; Subscribe; 217; Subscribe; Subscribe
SPE4A622F155W: 25 May 2022; Subscribe; 217; Subscribe; Subscribe
SPE4A622F6185: 04 Jan 2022; Subscribe; 217; Subscribe; Subscribe
SPE4A622F6185: 04 Jan 2022; Subscribe; 217; Subscribe; Subscribe
SPE4A622F4067: 18 Nov 2021; Subscribe; 108; Subscribe; Subscribe
SPE4A622F4067: 18 Nov 2021; Subscribe; 108; Subscribe; Subscribe
SPE4A621F162D: 14 May 2021; Subscribe; 108; Subscribe; Subscribe
SPE4A621F162D: 14 May 2021; Subscribe; 108; Subscribe; Subscribe
SPE4A621F7639: 12 Feb 2021; Subscribe; 160; Subscribe; Subscribe
SPE4A621F7639: 12 Feb 2021; Subscribe; 160; Subscribe; Subscribe
SPE4A618PM379P00001: 31 Jul 2018; Subscribe; 186; Subscribe; Subscribe
SPE4A614D01600029: 07 Apr 2017; Subscribe; 192; Subscribe; Subscribe
SPE4A614D01600028: 09 Feb 2017; Subscribe; 200; Subscribe; Subscribe
SPE4A614D01600025: 09 Nov 2016; Subscribe; 178; Subscribe; Subscribe
SPE4A614D01600023: 07 Sep 2016; Subscribe; 160; Subscribe; Subscribe
SPE4A614D01600013: 04 Nov 2015; Subscribe; 203; Subscribe; Subscribe
SPE4A413VH567: 16 Aug 2013; Subscribe; 1090; Subscribe; Subscribe

Contracting Technical Data File (CTDF) 6210-00-699-9457 October 2021

Criticality and Quality

Critical Item Code:: X
Flight Safety:
Life Support:
Certified Samples:
Serialization:
First Article Test (FAT):
Certificate of Quality Compliance:
Production Lot Testing:
Special Testing:
Qualified Products List (QPL):

Commercial Properties

Government Furnished Material:
Government Furnished Tooling:
Government Furnished Property:
Price Evaluation Code:
Diminshing Manufacturing Sources:
Warranty:
Commerical Off The Shelf (COTS):
End Item Application:
Auctioning Candidate:
Source of Procurement:
Contract Option:

Restrictions

Boeing Rights Guard:
Export Controlled:
Controlled Technical Data Package (TDP):
Restricted Technical Data Package (TDP):
Contains Classified Material
Weapons System Indicator Code (WSIC):: F

Packaging Requirements

Packaging Determination Table:
Packaging Review Code:: N
Special Packaging Instruction Number (SPIN):
Special Packaging Instruction Number Revision:
Special Packaging Instruction Number Date:
Pallet Reference Number Required:

Subscribe
View CTDF

Subscribe to View CTDF Details...

Marketplace 6210-00-699-9457

Related Documents 6210-00-699-9457 5+ Documents (More...)

Restrictions 6210-00-699-9457

Import and Export 6210-00-699-9457

End Users 6210-00-699-9457

Approved Sources 6210-00-699-9457

Datasheet 6210-00-699-9457

Weapon Systems (WSDC) 6210-00-699-9457

DLA Procurement Analysis 6210-00-699-9457

Management Data 6210-00-699-9457

Army

Air Force

Navy

Marine Corps

NATO Stock Numbers Related to 6210-00-699-9457

Freight Information 6210-00-699-9457

Packaging Data 6210-00-699-9457

Item Pack Level (Unpackaged)

Unit Pack Level (Packaged)

Intermediate Pack Level

Procurement History 6210-00-699-9457 19 Records

Contracting Technical Data File (CTDF) 6210-00-699-9457 October 2021

Criticality and Quality

Commercial Properties

Restrictions

Packaging Requirements
