6210-00-635-5686

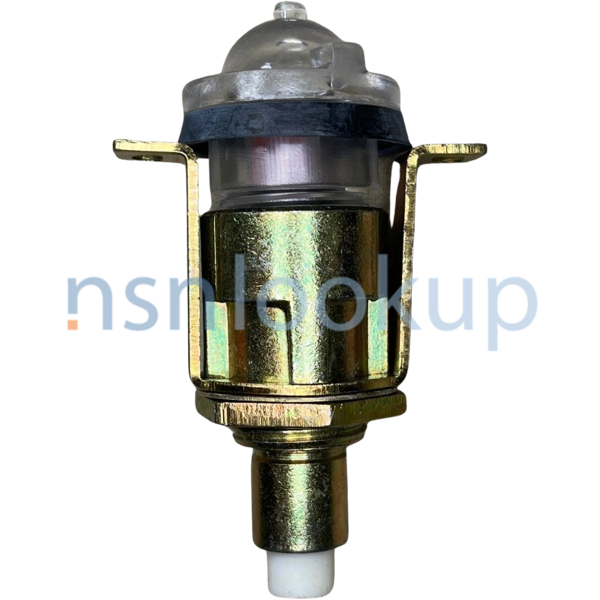

Indicator Light
6210006355686 006355686 7971111
A light, with mounting facilities furnished, designed to convey information of a specific nature concerning the circuit in which inserted. Must include or provide for the use of a lens as a part of it. For items without a lens, see LAMPHOLDER, and also see LIGHT (1), PANEL. View more Indicator Light
Managed by United States
NSN Created on 16 Feb 1983
Data Last Changed
November 2023
November 2023
NATO Update Count
32
32
NATO Data Quality
Marketplace 6210-00-635-5686
Need Help?
Request a Quotation from participating marketplace vendors
Request a Quotation from participating marketplace vendors
Related Documents 6210-00-635-5686 5+ Documents (More...)
Details... 797111-1 LIGHT,INDICATOR 1 EA NS Request Quotation Subscribe to View Vendor Details... 7971111
the Navy (DN)NLSuperseded By 6220-00-669-5623Defense Logistics Agency (DS)IAConsolidated With 6210-00-635-5686
the Navy (DN)NLSuperseded By 6220-00-669-5623Defense Logistics Agency (DS)IAConsolidated With 6210-00-635-5686
ITEM 72962 79NM124 5310-00-638-5706 152 13 19207 7971111 6210-00-635-5686 55 16 19207 7973325 9905-00
4820-00-633-3523 113 32 6210-00-699-9458 55 1 9905-00-634-5269 157 7 4730-00-701-1964 116 3 6210-00-635-5686
https//www.nsnlookup.com
/fsg-53/fsc-5310/us
/fsg-53/fsc-5310/us
5310-00-638-5706 Hexagon Self-Locking Nut 5310006385706
Unit Parts Manual for M44A3 Series Trucks Page 497 ITEM 72962 79NM1245310-00-638-5706 152 13 19207 7971111
6210-00-635-5686 55 16 19207 7973325 9905-00 https//www.nsnlookup.com /equipment-intelligence/land/m35
6210-00-635-5686 55 16 19207 7973325 9905-00 https//www.nsnlookup.com /equipment-intelligence/land/m35
3523 113 32 6210-00-699-9458 55 1 9905-00-634-5269 https//www.nsnlookup.com /fsg-62/fsc-6210/us 6210-00-635-5686
Indicator Light 6210006355686 006355686 Parts Manual for M44A3 Series Trucks Page 417 4820-00-633
Indicator Light 6210006355686 006355686 Parts Manual for M44A3 Series Trucks Page 417 4820-00-633
Restrictions 6210-00-635-5686
6210-00-635-5686 is a Indicator Light that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 6210-00-635-5686
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 6210-00-635-5686
- US Army (A920)
- Effective Date:
- 1 May 2006
- Former MOE Rule:
- A186
- Supplementary Receivers:
- AZBSBF
- US Air Force (FXGI)
- Effective Date:
- 1 May 2006
- Former MOE Rule:
- FXKZ
- US Marine Corps (MC47)
- Effective Date:
- 1 May 2006
- Former MOE Rule:
- MC10
- US Navy (N9BZ)
- Effective Date:
- 1 May 2006
- Former MOE Rule:
- N9ZD
- Supplementary Collaborators:
- HD
- Austria (WB01)
- Effective Date:
- 1 Feb 2005
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- Morocco (YP01)
- Effective Date:
- 1 Nov 2008
- Malaysia (YW01)
- Effective Date:
- 1 Mar 1997
- Belgium (ZB01)
- Effective Date:
- 1 Apr 1991
- Canada (ZC01)
- Effective Date:
- 1 Apr 1991
- Germany (ZG01)
- Effective Date:
- 1 Jan 2015
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- Netherlands (ZN01)
- Effective Date:
- 1 Apr 1991
- Norway (ZT01)
- Effective Date:
- 7 Feb 1997
- Greece (ZU01)
- Effective Date:
- 1 Aug 1995
- Turkey (ZW01)
- Effective Date:
- 1 Nov 2005
Approved Sources 6210-00-635-5686
- Part Number
- Manufacturer
- Status
- 7971111
- Manufacturer
- 19207 - U S Army Tank Automotive Command (Active)
- Primary Buy
- Primary Buy
- 6210006355686
- SCY13 - E.C.A Etablissement (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- 7971111
- T0720 - Fnss Savunma Sistemleri Anonim (Active)
- NATO Reproduction
- NATO Reproduction
Datasheet 6210-00-635-5686
- Characteristic
- Specifications
- FIIG
- Specifications
- A065A0
- Furnished Items And Quantity [TMQY]
- 1 Flat Washer And 2 Gasket And 1 Lock Washer
- Hazardous Locations/Environmental Protection [ABFE]
- Waterproof
- Mounting Method [AXGY]
- Unthreaded Hole
- Lamp Base Type Accommodated [AEUJ]
- Miniature Bayonet
- Lamp Bulb Size Designator [AEWU]
- T-3 1/4
- Lamp Type Accommodated And Quantity [CRHX]
- 1 Incandescent
- Lens Face Surface Condition [CWJJ]
- Smooth Single Light 1St Position Horizontal
- Lens Back Surface Condition [CTRM]
- Smooth Single Light 1St Position Horizontal
- Lens Color [AEXD]
- Colorless Single Light 1St Position Horizontal
- Lens Light Transmission Characteristic [CSKH]
- Translucent Single Light 1St Position Horizontal
- Lens Mounting Method [ATAS]
- Screw On
- Lens Quantity [AEXC]
- 1
- Lens Type [CRQG]
- Round, Shouldered Single Light 1St Position Horizontal
- Overall Diameter [ADAV]
- 1.120 Inches Minimum And 1.180 Inches Maximum
- Overall Length [ABHP]
- 3.000 Inches Nominal
- Style Designator [STYL]
- Round Frame, Round Lens Type
- Terminal Type And Quantity [TTQY]
- 1 Quick Disconnect, Male
Weapon Systems (WSDC) 6210-00-635-5686
DLA Procurement Analysis 6210-00-635-5686
- Last Stock Position:
- 652 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 6210-00-635-5686
Army
- Materiel Category and Inventory Manager:
- J
- Ground Forces Support Materiel (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Air Force
- Fund:
- SF
- Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point
- Budget:
- 9
- 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors
- Aggregation Code:
- SX
- SICA RESIDUAL MMAC-OC-ALC
- Price Validation Code:
- V
- The current standard price has been validated.
The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range.
The item was procured under open competition and under the competitive arena the price is considered fair and reasonable.
ZOP or Standard price challenges are permissible but must be supported by adequate justification.
- Expendability
Recoverability
Repairability: - N
- Expendable. Condemn at User. Stock Fund (except Munitions).
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Marine Corps
- Stores Account:
- 1
- Stock Fund Account Item
- Combat Essentiality:
- 5
- Critical Repair Part to a Combat Essential End Item
- Echelon Management:
- B2
- Material Identification:
- B
- Consumable Repair Parts
- Operational Test:
- No Special Procedures
NATO Stock Numbers Related to 6210-00-635-5686
6220-22-617-3704 6210-99-782-1917 6210-99-668-9650 6210-99-541-0887 6210-21-880-4947 6210-99-527-6041 6220-21-908-7994 6210-12-321-2435 6210-21-841-3648 6210-99-949-2416 6210-12-340-3745 6210-12-172-7940 6210-99-107-2214 6210-14-564-4846 6210-27-053-7935 6210-12-136-1579 6210-99-588-2215 6210-12-366-5112
Freight Information 6210-00-635-5686
6210-00-635-5686 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 109700. A Sub NMFC of Z. It has a NMFC Description of LAMP OR LIGHTING FIXTURES. 6210-00-635-5686 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 55690 which rates the freight between FCL and LCL. 6210-00-635-5686 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 761 for ocean manifesting and military sealift. 6210-00-635-5686 is not classified as a special type of cargo when transported by water. 6210-00-635-5686 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 6210-00-635-5686
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Electrical Instrument
- Over 10lb
- Less than 85G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- --
- PPP-C-795, Cellular Plastic Film Cushioning; or A-A-3129, Open Cell Plastic Cushioning; or PPP-C-1797, Polypropylene Foam Cushioning; or A-A-59136, Polyethylene Foam Cushioning
- --
- MIL-DTL-117, Type III, Class B, Style 2, Heavy Duty, Waterproof, Transparent Bag
- Fragile
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- ASTM - D5118, Fiberboard Box
Contracting Technical Data File (CTDF) 6210-00-635-5686 October 2021
Criticality and Quality
- Critical Item Code:
- X
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- F
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
