6150-01-114-7612

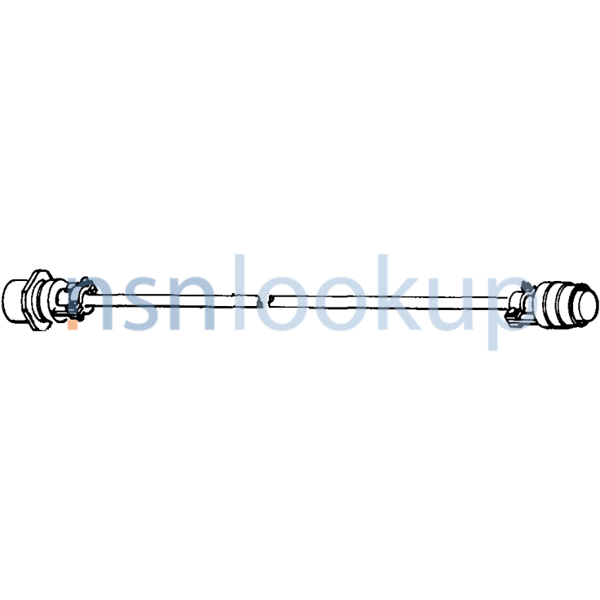

Wiring Harness
6150011147612 011147612 12298168
An item consisting of two or more individually insulated conductors (solid, stranded, or tinsel) of a definite length, with or without shielding, held together by lacing cord, metal bands, or similar type binding. The individual conductors are usually identified by color, or by alphabetic or numeric codes or symbols. The item may include fittings which provide for connection to other items. Excludes items which are branched, forked, jacketed, sleeved, or contained in a common covering. Also excludes CABLE ASSEMBLY (as modified); HARNESS, ELECTRICAL EQUIPMENT; LEAD ASSEMBLY, ELECTRICAL; and WIRING HARNESS, BRANCHED. View more Wiring Harness
September 2025
28
Marketplace 6150-01-114-7612
Request a Quotation from participating marketplace vendors
Related Documents 6150-01-114-7612 5+ Documents (More...)
/fsg-61/fsc-6150/us
WIRING HARNESS 1 EA NS Request Quotation Subscribe to View Vendor Details... 12298168 WIRING HARNESS
Every Day 6150-01-114-7612 RQST NE Updated Every Day 6150-01-114-7612 RQST Updated Every Day 6150-01
/fsg-99/fsc-9999/uk
/fsg-99/fsc-9999/uk
/fsg-61/fsc-6150/us
Restrictions 6150-01-114-7612
6150-01-114-7612 is a Wiring Harness that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item has been confirmed as a Critical Munitions List Item or a Sensitive Commerce Control List Item and cannot be in the possession of any party anywhere in the World who is not an authorized NATO Government. Any other possessor of this item should mutilate it now as possession violates international and local laws. This item is a confirmed Commerce Control List Item (CCLI). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 6150-01-114-7612
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 6150-01-114-7612
- US Army (A204)
- Effective Date:
- 9 Apr 1999
- Former MOE Rule:
- A203
- Supplementary Receivers:
- BD
- US Army (A920)
- Effective Date:
- 1 Sep 2014
- Supplementary Receivers:
- AZBD
- Australia (ZA01)
- Effective Date:
- 1 Jan 2007
- France (ZF01)
- Effective Date:
- 1 Apr 1991
- Germany (ZG01)
- Effective Date:
- 1 Apr 1991
- United Kingdom (ZK01)
- Effective Date:
- 1 Nov 2010
- Italy (ZR01)
- Effective Date:
- 1 Apr 1991
- Denmark (ZS01)
- Effective Date:
- 5 Feb 1998
- Norway (ZT01)
- Effective Date:
- 1 Sep 2004
- Turkey (ZW01)
- Effective Date:
- 1 Dec 2005
- NATO Maintenance and Supply Agency (ZX01)
- Effective Date:
- 1 Apr 1991
Approved Sources 6150-01-114-7612
- Part Number
- Manufacturer
- Status
- 12298168
- Manufacturer
- 19207 - U S Army Tank Automotive Command (Active)
- Primary Buy
- Primary Buy
Datasheet 6150-01-114-7612
- Characteristic
- Specifications
- FIIG
- Specifications
- A077A0
- Binding Method [AMEM]
- Tape Wrapped
- Cable Assembly Overall Length [ASQB]
- 15.000 Feet Nominal
- Conductor Quantity [AMQN]
- 47
- Material [MATT]
- Plastic 1St Position Primary Insulation Single Conductor
- Material [MATT]
- Tin Core Conductor All Conductors And Copper Core Conductor All Conductors
- Round Conductor Size [CXDC]
- 20 Awg Single Conductor
Weapon Systems (WSDC) 6150-01-114-7612
DLA Procurement Analysis 6150-01-114-7612
- Last Stock Position:
- 83 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 6150-01-114-7612
Army
- Materiel Category and Inventory Manager:
- J
- Ground Forces Support Materiel (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- MM
- Armored Carriers
Infantry Fighting Vehicle (M2, M2A1, M2A2), Cavalry Fighting Vehicle (M3, M3A1, M3A2)
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Similar Supply Items to 6150-01-114-7612
Freight Information 6150-01-114-7612
6150-01-114-7612 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 061130. A Sub NMFC of X. It has a NMFC Description of CABLE ASSEMBLY. 6150-01-114-7612 is rated as class 77.5 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 34350 which rates the freight between FCL and LCL. 6150-01-114-7612 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 743 for ocean manifesting and military sealift. 6150-01-114-7612 is not classified as a special type of cargo when transported by water. 6150-01-114-7612 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 6150-01-114-7612
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- Packaging Data does not meet current MIL-STD-2073-1E
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- 12.0" H x 12.0" W x 3.5" L
- --
- --
- Over 10lb
- Less than 85G
- Special Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- 13.2" H x 12.6" W x 4.0" L
- --
- --
- --
- Special Requirements
- 13.2" H x 12.6" W x 4.0" L
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- No Requirement
- PPP-C-795, Cellular Plastic Film Cushioning; or A-A-3129, Open Cell Plastic Cushioning; or PPP-C-1797, Polypropylene Foam Cushioning; or A-A-59136, Polyethylene Foam Cushioning
- 3/4 inch thick
- --
- No special marking
- No Requirement
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- --
- No Requirement
Procurement History 6150-01-114-7612 3 Records
Contracting Technical Data File (CTDF) 6150-01-114-7612 October 2021
Criticality and Quality
- Critical Item Code:
- X
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- F
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
