6145-01-341-9591
Electrical Special Purpose Cable
6145013419591 013419591 MIL-DTL-13486/1 M13486/1-4 8690176 6145PL0852966
Two or more individually insulated conductors (solid or stranded) contained in a common covering, or two or more individually insulated conductors twisted or molded together without a common covering, or one insulated conductor with a metallic covering or shield; each having characteristics not completely conforming to CABLE, TELEPHONE; CABLE, POWER, ELECTRICAL; CABLE, RADIO FREQUENCY or CORD, ELECTRICAL. Includes items having the combined characteristics of two or more of the aforementioned names. Refers to bulk quantities only; for items of definite length with processed ends or terminated in fittings, see CABLE ASSEMBLY, SPECIAL PURPOSE, ELECTRICAL. View more Electrical Special Purpose Cable
August 2025
9
Product Information 6145-01-341-9591
Single-Core Stranded Cable 14AWG Unshielded
- MIL-DTL-13486/1C
- MIL-PRF-13486/1
- MIL-C-13486/1A
- MIL-C-13486/1B

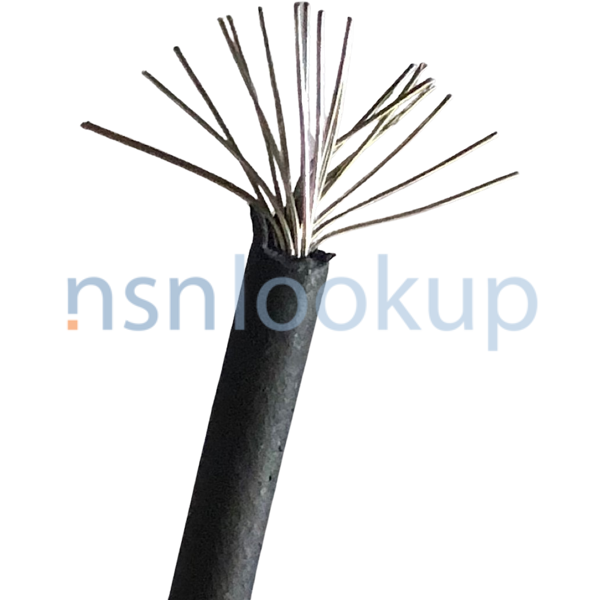

M13486/1-4 is composed of a stranded tinned copper conductor and Hypalon (CSPE) insulation. This cable has a temperature range of -65°C to +90°C. This 16 AWG cable has resistance to fungus, weather, liquids, and abrasion. This flexible cable may be used on all types of military ground vehicles, including tanks, trailers, trucks, and jeeps.
This wire correctly fits any of the 14 AWG rubber shell connectors such as MS27142-2 and MS27144-1. 14 AWG rated wire is used on circuits with minimal current requirements such as instrumentation circuits, sensors, and LED lights.
The MIL-DTL-13486 specification special purpose electrical cable is offered in single and multi-conductor options that can be supplied with or without a shield. The heavy-duty cable is used throughout the MRAP program on military ground vehicles such as truck, tanks, trailers, etc. Offering resistance to abrasion, fungus, and expose to weather, the M13486 wire can provide protection from fluids such as oils, ethylene glycol, and salt water.
Export restrictions from the USA apply - an Export License is Required
Features:
- Approx LBS/FT: 0.0165
- AWG Size: 14
- Conductor Material: Tinned Copper
- Conductor Stranding: 19/.0113
- Insulation Material: Hypalon (CSPE)
- Maximum Temp: 90°C
- Military Specification: M13486/1
- Minimum Temp: -65°C
- Number of Strands: 19
- Nominal Insulation Thickness (in): 0.037
- Nominal O.D. (in): 0.1350
- Strand Size (in): 0.0113
Marketplace 6145-01-341-9591
Request a Quotation from participating marketplace vendors
Updated Every Day Updated Every Day
Updated Every Day Related Documents 6145-01-341-9591 5+ Documents (More...)

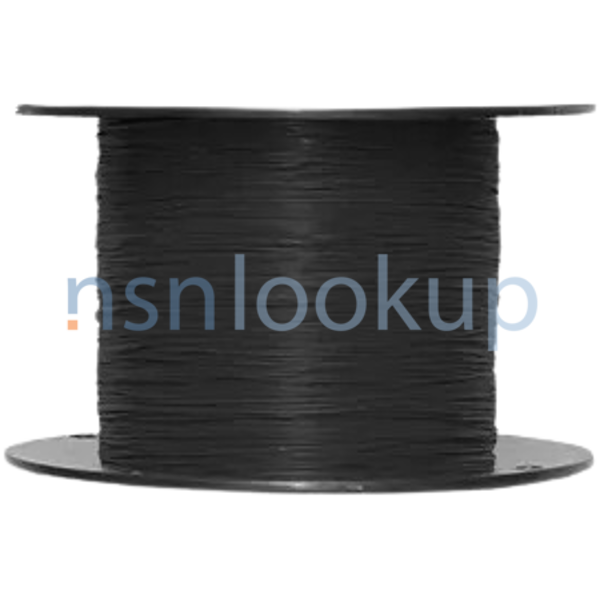

Photo 1/3 6145-01-341-9591 Photo 2/3 NSN 6145-01-341-9591 (Identification) 3/3 - - - 1.
M13486/1-4 CABLE,SPECIAL PURPOSE,ELECTRICAL 30 FT NS Request Quotation Updated Every Day 6145-01-341-
www.nsnlookup.com /fsg-59/fsc-5999/nz 5999-98-200-5493 Circuit Card Assembly 5999982005493982005493 8690176
www.nsnlookup.com /fsg-59/fsc-5999/nz 5999-98-200-5493 https//www.nsnlookup.com /fsg-61/fsc-6145/us 6145-01-341-9591
your Account Upgrade 6145-00-538-8219Electrical Special Purpose Cable6145005388219 005388219 MIL-DTL-13486/1
your Account Upgrade 6145-00-805-3354Electrical Special Purpose Cable6145008053354 008053354 MIL-DTL-13486/1
Electrical Special Purpose Cable 013419591 your Account Upgrade 6145-01-341-9591Electrical Special
Purpose Cable6145013419591 013419591 MIL-DTL-13486/1 your Account Upgrade 6145-00-705-6679Electrical
Updated Every Day 6145-01-136-7643 RQST Updated https//www.nsnlookup.com /fsg-61/fsc-6145/us 6145-01-341-9591
Electrical Special Purpose Cable 013419591 your Account Upgrade 6145-01-341-9591Electrical Special
Restrictions 6145-01-341-9591
6145-01-341-9591 is a Electrical Special Purpose Cable that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 6145-01-341-9591
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 6145-01-341-9591
- US Army (A918)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- A196
- Supplementary Receivers:
- AZ
- US Air Force (FXGX)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- FXTX
- US Marine Corps (MC49)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- MC13
- US Navy (N9BN)
- Effective Date:
- 1 Dec 2013
- Supplementary Collaborators:
- GG
- Lithuania (WI01)
- Effective Date:
- 1 Jan 2002
- Spain (YB01)
- Effective Date:
- 1 Aug 2006
Approved Sources 6145-01-341-9591
- Part Number
- Manufacturer
- Status
- M13486/1-4
- Manufacturer
- 81349 - Military Specifications (Active)
- Definitive Standard
- Definitive Standard
- MIL-DTL-13486/1
- 81349 - Military Specifications (Active)
- Incomplete Standard
- Incomplete Standard
- 8690176
- 81349 - Military Specifications (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 6145PL0852966
- 9009H - Jednolity Indeks Materialowy - (Active)
- NATO Reference
- NATO Reference
Datasheet 6145-01-341-9591
- Characteristic
- Specifications
- FIIG
- Specifications
- A077A0
- Color [HUES]
- Black 1St Position Primary Insulation Single Conductor
- Conductor Form [CXCW]
- Stranded Single Conductor
- Cross Section Outside Diameter [ADVL]
- 0.160 Inches Nominal
- Cross-Sectional Shape Style [AAGR]
- Round
- Material Document And Classification [MDCL]
- Qq-W-343,Type S Fed Spec Single Material Response Core Conductor Single Conductor
- Material [MATT]
- Copper Core Conductor Single Conductorrubber Chlorosulfonated Polyethylene Class Csm 1St Position Primary Insulation Single Conductor
- Round Conductor Size [CXDC]
- 16 Awg Single Conductor
- Strand Awg Size Per Conductor [CXDG]
- 29 Single Conductor
- Strand Quantity Per Conductor [BLNZ]
- 19 Single Conductor
- Surface Treatment Document And Classification [STDC]
- Qq-W-343,Type S Fed Spec Single Treatment Response Core Conductor Single Conductor
- Surface Treatment [SFTT]
- Tin Core Conductor Single Conductor
Weapon Systems (WSDC) 6145-01-341-9591
DLA Procurement Analysis 6145-01-341-9591
- Last Stock Position:
- 11394 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 6145-01-341-9591
- Effective Date
- Organization
- Unit of Issue
- Unit Price
- Qty Unit Pack
- Unit of Issue
- Oct 2022
- Department of the Air Force (DF)
- FT
- Subscribe
- 1
- FT
- Oct 2021
- Department of the Air Force (DF)
- FT
- Subscribe
- 1
- FT
- Apr 2021
- Department of the Air Force (DF)
- FT
- Subscribe
- 1
- FT
- Feb 2021
- US Marine Corps (DM)
- FT
- Subscribe
- FT
- Mar 2020
- Department of the Army (DA)
- FT
- Subscribe
- FT
Army
- Materiel Category and Inventory Manager:
- Q
- Electronics Materiel (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Marine Corps
- Stores Account:
- 1
- Stock Fund Account Item
- Combat Essentiality:
- 5
- Critical Repair Part to a Combat Essential End Item
- Echelon Management:
- B2
- Operational Test:
- No Special Procedures
Similar Supply Items to 6145-01-341-9591
Freight Information 6145-01-341-9591
6145-01-341-9591 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 030310. A Sub NMFC of Z. It has a NMFC Description of CABLE OR WIRE. 6145-01-341-9591 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 15080 which rates the freight between FCL and LCL. 6145-01-341-9591 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 743 for ocean manifesting and military sealift. 6145-01-341-9591 is not classified as a special type of cargo when transported by water. 6145-01-341-9591 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
