6145-00-570-0516
Electrical Special Purpose Cable
6145005700516 005700516 MIL-DTL-13486/1 M13486/1-2 MILC13486 MIL-DTL-13486
Two or more individually insulated conductors (solid or stranded) contained in a common covering, or two or more individually insulated conductors twisted or molded together without a common covering, or one insulated conductor with a metallic covering or shield; each having characteristics not completely conforming to CABLE, TELEPHONE; CABLE, POWER, ELECTRICAL; CABLE, RADIO FREQUENCY or CORD, ELECTRICAL. Includes items having the combined characteristics of two or more of the aforementioned names. Refers to bulk quantities only; for items of definite length with processed ends or terminated in fittings, see CABLE ASSEMBLY, SPECIAL PURPOSE, ELECTRICAL. View more Electrical Special Purpose Cable
August 2025
8
Product Information 6145-00-570-0516
Single-Core Stranded Cable 18AWG Unshielded
- MIL-DTL-13486/1C
- MIL-PRF-13486/1
- MIL-C-13486/1A
- MIL-C-13486/1B

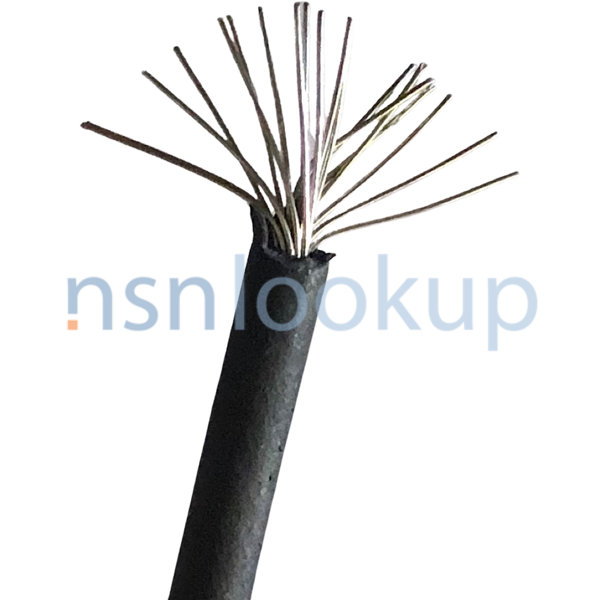

M13486/1-2 is composed of a stranded tinned copper conductor and Hypalon (CSPE) insulation. This cable has a temperature range of -65°C to +90°C. This 18 AWG cable has resistance to fungus, weather, liquids, and abrasion. This flexible cable may be used on all types of military ground vehicles, including tanks, trailers, trucks, and jeeps.
This wire correctly fits any of the 18 AWG rubber shell connectors such as MS27142-3 and MS27144-2. 18 AWG rated wire is used on circuits with minimal current requirements such as instrumentation circuits, sensors, and LED lights.
The MIL-DTL-13486 specification special purpose electrical cable is offered in single and multi-conductor options that can be supplied with or without a shield. The heavy-duty cable is used throughout the MRAP program on military ground vehicles such as truck, tanks, trailers, etc. Offering resistance to abrasion, fungus, and expose to weather, the M13486 wire can provide protection from fluids such as oils, ethylene glycol, and salt water.
Export restrictions from the USA apply - an Export License is Required
Features:
- Approx LBS/FT: 0.0165
- AWG Size: 18
- Conductor Material: Tinned Copper
- Conductor Stranding: 19/.0113
- Insulation Material: Hypalon (CSPE)
- Maximum Temp: 90°C
- Military Specification: M13486/1
- Minimum Temp: -65°C
- Number of Strands: 19
- Nominal Insulation Thickness (in): 0.037
- Nominal O.D. (in): 0.1350
- Strand Size (in): 0.0113
Marketplace 6145-00-570-0516
Request a Quotation from participating marketplace vendors
Related Documents 6145-00-570-0516 5+ Documents (More...)
Standard PIN: M13486/1-2 Historical Military Standards: - MIL-DTL-13486/1C - MIL-PRF-13486/1 - MIL-C
Purpose Cable 005700516 MIL-DTL-13486/1M13486/1-2MILC13486MIL-DTL-13486 Two or more individually insulated
006998963 your Account Upgrade 6145-00-699-8963Electrical Special Purpose Cable6145006998963 006998963 MIL-DTL-13486
insulated conductors (solid or stranded 6145-00-699 https//www.nsnlookup.com /fsg-61/fsc-6145/us 6145-00-570-0516
/1 7056675 M13486/1-12 MILC13486-1 MIL-DTL-13486 Two or more individually insulated conductors
Special Purpose Cable6145005700516 005700516 MIL-DTL-13486 6145-00-805-3354 Electrical Special Purpose
Electrical Special Purpose Cable 005700516 M13486/1-2 MILC13486 MIL-DTL-13486 Two or more individually
/5 7732849 M13486/5-1 MILC13486 MILC13486 WIRE,ELECTRICAL 100 FT NS Request Quotation Subscribe
007056679 your Account Upgrade 6145-00-705-6679Electrical Special Purpose Cable6145007056679 007056679 MIL-DTL-13486
1 your Account Upgrade 6145-00-538-8219Electrical Special Purpose Cable6145005388219 005388219 MIL-DTL-13486
Restrictions 6145-00-570-0516
6145-00-570-0516 is a Electrical Special Purpose Cable that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
