6145-00-161-1609
Electrical Special Purpose Cable
6145001611609 001611609 MIL-DTL-13486/1 812363 7722204 T06-5G M13486/1-3 6145007722204
Two or more individually insulated conductors (solid or stranded) contained in a common covering, or two or more individually insulated conductors twisted or molded together without a common covering, or one insulated conductor with a metallic covering or shield; each having characteristics not completely conforming to CABLE, TELEPHONE; CABLE, POWER, ELECTRICAL; CABLE, RADIO FREQUENCY or CORD, ELECTRICAL. Includes items having the combined characteristics of two or more of the aforementioned names. Refers to bulk quantities only; for items of definite length with processed ends or terminated in fittings, see CABLE ASSEMBLY, SPECIAL PURPOSE, ELECTRICAL. View more Electrical Special Purpose Cable
August 2025
54
Product Information 6145-00-161-1609

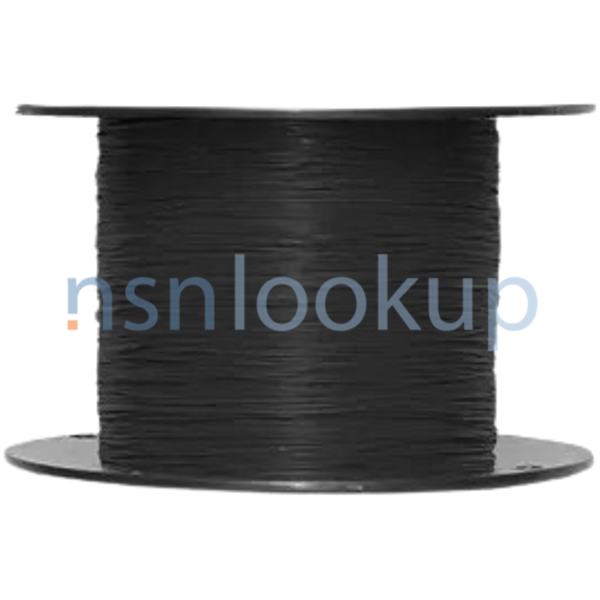

M13486/1-3 Single-Core Stranded 16AWG Unshielded Wire
- MIL-DTL-13486/1C
- MIL-PRF-13486/1
- MIL-C-13486/1A
- MIL-C-13486/1B
M13486/1-3 is composed of a stranded tinned copper conductor and Hypalon (CSPE) insulation. This cable has a temperature range of -65°C to +90°C. This 16 AWG cable has resistance to fungus, weather, liquids, and abrasion. This flexible cable may be used on all types of military ground vehicles, including tanks, trailers, trucks, and jeeps.
This wire correctly fits any of the 16 AWG rubber shell connectors such as MS27142-3 and MS27144-2. 16 AWG rated wire is used on circuits with minimal current requirements such as instrumentation circuits, sensors, and LED lights.
The MIL-DTL-13486 specification special purpose electrical cable is offered in single and multi-conductor options that can be supplied with or without a shield. The heavy-duty cable is used throughout the MRAP program on military ground vehicles such as truck, tanks, trailers, etc. Offering resistance to abrasion, fungus, and expose to weather, the M13486 wire can provide protection from fluids such as oils, ethylene glycol, and salt water.
Export restrictions from the USA apply - an Export License is Required
Features:
- Approx LBS/FT: 0.0165
- AWG Size: 16
- Conductor Material: Tinned Copper
- Conductor Stranding: 19/.0113
- Insulation Material: Hypalon (CSPE)
- Maximum Temp: 90°C
- Military Specification: M13486/1
- Minimum Temp: -65°C
- Number of Strands: 19
- Nominal Insulation Thickness (in): 0.037
- Nominal O.D. (in): 0.1350
- Strand Size (in): 0.0113
Marketplace 6145-00-161-1609
Request a Quotation from participating marketplace vendors
Updated Every Day Updated Every Day
Updated Every Day Related Documents 6145-00-161-1609 5+ Documents (More...)
M13486/1-3 CABLE,SPECIAL PURPOSE,ELECTRICAL 3614 FT NS Request Quotation 7722204 CABLE,SPECIAL PURPOSE
/us 6145-00-161-1609 Electrical Special Purpose Cable 001611609 MIL-DTL-13486/18123637722204T06-5GM13486
M13486/1-3 WIRE,ELECTRICAL 3614 FT NS Request Quotation 7722204 WIRE,ELECTRICAL 2525 FT NS Request Quotation
WIRE,ELECTRICAL 97 FT NS Request Quotation Subscribe M13486/1-3 WIRE,ELECTRICAL RQST NS Request
M13486/1-3 WIRE,ELECTRICAL 3614 FT NS Request Quotation 7722204 WIRE,ELECTRICAL 2525 FT NS Request Quotation
M13486/1-3 WIRE,ELECTRICAL RQST NS Request Quotation Updated Every Day 6145-01-136-7643 RQST Updated
Restrictions 6145-00-161-1609
6145-00-161-1609 is a Electrical Special Purpose Cable that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 6145-00-161-1609
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 6145-00-161-1609
- US Army (A918)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- A196
- Supplementary Receivers:
- AJBFBDAZ
- US Air Force (FXGX)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- FXTX
- US Marine Corps (MC49)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- MC13
- US Navy (N9BN)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- N9ND
- Supplementary Collaborators:
- GTKE
- Austria (WB01)
- Effective Date:
- 1 Feb 2005
- Lithuania (WI01)
- Effective Date:
- 1 Sep 2001
- Brazil (YA01)
- Effective Date:
- 1 Dec 1999
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- Columbia (YC01)
- Effective Date:
- 1 Jul 2015
- Singapore (YJ01)
- Effective Date:
- 1 Apr 1991
- Kuwait (YK01)
- Effective Date:
- 1 Jan 2015
- Morocco (YP01)
- Effective Date:
- 1 Nov 2008
- Malaysia (YW01)
- Effective Date:
- 1 Mar 1997
- Australia (ZA01)
- Effective Date:
- 1 Apr 1991
- Belgium (ZB01)
- Effective Date:
- 1 Apr 1991
- Canada (ZC01)
- Effective Date:
- 1 Apr 1991
- New Zealand (ZE01)
- Effective Date:
- 1 Apr 1991
- France (ZF01)
- Effective Date:
- 1 Jun 2011
- Germany (ZG01)
- Effective Date:
- 1 Jan 2015
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- United Kingdom (ZK01)
- Effective Date:
- 1 Apr 1991
- Netherlands (ZN01)
- Effective Date:
- 1 Apr 1991
- Portugal (ZP01)
- Effective Date:
- 1 Apr 1991
- Norway (ZT01)
- Effective Date:
- 1 Apr 1991
- Greece (ZU01)
- Effective Date:
- 1 Apr 1991
- Turkey (ZW01)
- Effective Date:
- 1 Aug 1993
- NATO Maintenance and Supply Agency (ZX01)
- Effective Date:
- 1 Nov 2003
Approved Sources 6145-00-161-1609
- Part Number
- Manufacturer
- Status
- M13486/1-3
- Manufacturer
- 81349 - Military Specifications (Active)
- Definitive Standard
- Definitive Standard
- MIL-DTL-13486/1
- 81349 - Military Specifications (Active)
- Incomplete Standard
- Incomplete Standard
- 812363
- 18876 - Us Army Aviation And Missile Command (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
- 7722204
- 19207 - U S Army Tank Automotive Command (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
- 6145007722204
- SCY13 - E.C.A Etablissement (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- 6145007722204
- A00AM - E.C.A Etablissement Central Des (Active)
- NATO Reference
- NATO Reference
- T06-5G
- 04946 - Standard Wire & Cable Co. (Active)
- Advisory Reference
- Advisory Reference
Datasheet 6145-00-161-1609
- Characteristic
- Specifications
- FIIG
- Specifications
- A077A0
- Conductor Form [CXCW]
- Stranded Single Conductor
- Cross Section Outside Diameter [ADVL]
- 0.135 Inches Nominal
- Cross-Sectional Shape Style [AAGR]
- Round
- Material Document And Classification [MDCL]
- Qq-W-343,Soft Fed Spec Single Material Response Core Conductor Single Conductor
- Material [MATT]
- Copper Core Conductor Single Conductor
- Round Conductor Size [CXDC]
- 16 Awg Single Conductor
- Voltage Rating [CXFK]
- 30.0 Dc Maximum Rated Working Voltage Single Conductor
- Strand Awg Size Per Conductor [CXDG]
- 29 Single Conductor
- Strand Quantity Per Conductor [BLNZ]
- 19 Single Conductor
- Surface Treatment [SFTT]
- Tin Core Conductor Single Conductor
- Test Data Document [TEST]
- 81349-Milc13486 Specification (Includes Engineering Type Bulletins, Brochures,Etc., That Reflect Specification Type Data In Specification Format; Excludes Commercial Catalogs, Industry Directories, And Similar Trade Publications, Reflecting General Type Data On Certain Environmental And Performance Requirements And Test Conditions That Are Shown As "Typical", "Average", "Nominal", Etc.).
