6140-01-679-4822
Storage Battery
6140016794822 016794822 BT-70716BV 20-0267 LFE-TNR2I-008 1606407723-R1
A battery, composed of two or more cells forming a single unit, which may or may not be readily separable and which may be efficiently recharged by sending an electric current through the cells in a direction opposite that of the discharging current.The item may be furnished with integral charging facilities.For items which are composed of a single cell see CELL, BATTERY. View more Storage Battery
February 2025
8
Product Information 6140-01-679-4822

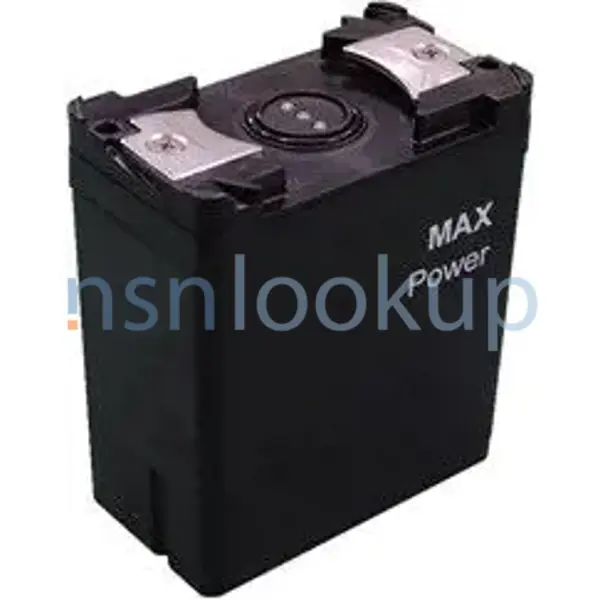

MBITR PRC-148, 7.0 Ah Battery
Chemistry: Li-ion
7.0 Ah MAX Power, Rechargeable Lithium-Ion Battery
- Run time is over 40% improvement over the standard commo shop AN/PRC-148 battery.
- Meets or exceeds all military rechargeable durability specifications.
- Works in all variants of the AN/PRC-148 & WAVE radio.
- MAX Power 8 Amp
- Communicates using a Single Wire DQ interface
- UN/DOT 38.3 Rating: 76 Wh
Typically used in:
- Wave Relay System
- AN/PRC-148
- TRC-9110
- Silvus StreamCaster 4200
Length 2.6" / Width 1.6" / Height 3.4" / Weight 1.0 lbs
| Nominal Voltage | 10.8V |
|---|---|
| Ah | 7 |
| Maximum Voltage | 12.6V |
| Operating Temperature | -30°C to +60°C (-22°F to +140°F) |
| Storage Temperature | -40°C to +40°C (-40°F to +104°F) |
| Connector | Flat Contacts (bottom), 1/4-Turn (top) |
| State of Charge Indicator | No |
| Battery Type | Rechargeable |
| Smart Battery | DQ |
| Brenergy | No |
Marketplace 6140-01-679-4822
Request a Quotation from participating marketplace vendors
Related Documents 6140-01-679-4822 5+ Documents (More...)
Photo 1/2 6140-01-679-4822 Photo 2/2 - - 1.
RQST NE Updated Every Day 6140-01-679-4822 RQST Updated Every Day 6140-01-679-4822 RQST NE Related Documents
Battery 6140016794822016794822 6140015292956 https https//www.nsnlookup.com /fsg-61/fsc-6140/us 6140-01-679-4822
Storage Battery 6140016794822 016794822 www.nsnlookup.com /fsg-61/fsc-6140/us 6140-01-679-4822
Storage Battery 6140016794822 016794822 Day 6140-01-679-4822 RQST NE Related Documents https//www.nsnlookup.com
6140017083364017083364 6140017083364017083364 NE Updated Every Day 6140 https/ fsg-61/fsc-6140/us 6140-01-679-4822
Storage Battery 6140016794822 016794822 www.nsnlookup.com /fsg-61/fsc-6140/us 6140-01-679-4822
Restrictions 6140-01-679-4822
6140-01-679-4822 is a Storage Battery that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.
Import and Export 6140-01-679-4822
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
Approved Sources 6140-01-679-4822
- Part Number
- Manufacturer
- Status
- BT-70716BV
- Manufacturer
- 51828 - Bren-Tronics Defense Llc (Active)
- Primary Buy
- Primary Buy
- 20-0267
- C5621 - Elp Gmbh European Logistic Partners (Active)
- Secondary Buy
- Secondary Buy
- LFE-TNR2I-008
- FASM4 - L.F.E. (Active)
- Secondary Buy
- Secondary Buy
- 1606407723-R1
- CN899 - Quantum-Systems Gmbh (Active)
- Secondary Buy
- Secondary Buy
Weapon Systems (WSDC) 6140-01-679-4822
DLA Procurement Analysis 6140-01-679-4822
- Last Stock Position:
- 1206 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 6140-01-679-4822
Army
- Materiel Category and Inventory Manager:
- Q
- Electronics Materiel (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Similar Supply Items to 6140-01-679-4822
Procurement History 6140-01-679-4822 1 Records
Contracting Technical Data File (CTDF) 6140-01-679-4822 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- N
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Y
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
