6140-01-619-5070
Storage Battery
6140016195070 016195070 BT-70791BK 10483645
A battery, composed of two or more cells forming a single unit, which may or may not be readily separable and which may be efficiently recharged by sending an electric current through the cells in a direction opposite that of the discharging current.The item may be furnished with integral charging facilities.For items which are composed of a single cell see CELL, BATTERY. View more Storage Battery
February 2025
4
Product Information 6140-01-619-5070

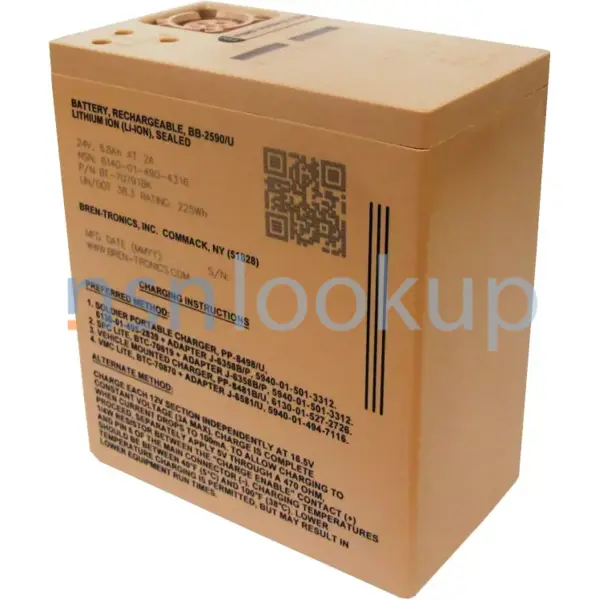

BB-2590/U, 225 Wh Battery
Military # BB-2590/U
Chemistry: Li-ion
7.5Ah, Rechargeable Lithium-Ion Battery.
Refer to BT-70791CK for a newer version.
- Complies with SMBus v1.1 and SBData v1.1
- New Ruggedized Case Construction
- Comparable to: BB-2590/U, BT-70791A, BT-70791Bx and BT-70791Cx
- UN/DOT 38.3 Rating: 225Wh
- Protected by one or more U.S. Patents 5,625,273 and 6,242,893 and 8,961,225 and D705,167. Other Patents Pending
- Compliant to European Council EMC Directive 2004/108/EC
Typically used in:
- Robots
- Surveillance / Sensors
- SINCGARS & ASIP (AN/PRC-119) Radios
- FALCON (AN/PRC-150, 117) Radios
Length 4.4" / Width 2.4" / Height 5"
| Nominal Voltage | 14.4V, 28.8V |
|---|---|
| Ah | In 24V Mode: 7.5 Ah, In 12V Mode: 15 |
| Maximum Voltage | 16.8V |
| Operating Temperature | -20°C to +60°C (-4°F to +140°F) |
| Storage Temperature | -40°C to +40°C (-40°F to +104°F) |
| Connector | Floating type per U.S. Army DWG # SC-C-179495 |
| State of Charge Indicator | Yes |
| Battery Type | Rechargeable |
| Smart Battery | SMBus |
| Brenergy | No |
Marketplace 6140-01-619-5070
Request a Quotation from participating marketplace vendors
Related Documents 6140-01-619-5070 5+ Documents (More...)
RQST NE Updated Every Day 6140-01-619-5070 RQST Updated Every Day 6140-01-619-5070 RQST NE Related Documents
6140-01-619-5070 5+ Documents ( More... ) https//www.nsnlookup.com /fsg-61/fsc-6140/us 6140-01-619-5070
Storage Battery 6140016195070 016195070 www.nsnlookup.com /fsg-61/fsc-6140/us 6140-01-619-5070
Storage Battery 6140016195070 016195070 Freight Packaging Import/Export Contracting File Weapon
Systems Product Information 6140-01-619-5070 BB-2590/U , 225 Wh Battery Military # BB-2590/U Chemistry
Storage Battery 6140016195070 016195070 2590/U Chemistry https//www.nsnlookup.com /fsg-61 Batteries
Storage Battery 6140016195070 016195070 Freight Packaging Import/Export Contracting File Weapon
Systems Product Information 6140-01-619-5070 BB-2590 /U, 225 Wh Battery Military # BB-2590/U Chemistry
Restrictions 6140-01-619-5070
6140-01-619-5070 is a Storage Battery Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.
Import and Export 6140-01-619-5070
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 6140-01-619-5070
- Singapore (YJ01)
- Effective Date:
- 1 Sep 2015
- Denmark (ZS01)
- Effective Date:
- 1 Jun 2013
Approved Sources 6140-01-619-5070
- Part Number
- Manufacturer
- Status
- BT-70791BK
- Manufacturer
- 51828 - Bren-Tronics Defense Llc (Active)
- Primary Buy
- Primary Buy
- 10483645
- A486G - Nimikkeistokeskus Ncb Finland (Active)
- NATO Reference
- NATO Reference
DLA Procurement Analysis 6140-01-619-5070
Management Data 6140-01-619-5070
- Effective Date
- Organization
- Unit of Issue
- Unit Price
- Qty Unit Pack
- Unit of Issue
- Aug 2022
- Defense Logistics Agency (DS)
- EA
- Subscribe
- 1
- EA
Similar Supply Items to 6140-01-619-5070
Freight Information 6140-01-619-5070
6140-01-619-5070 has freight characteristics.. 6140-01-619-5070 has a variance between NMFC and UFC when transported by rail and the description should be consulted.
