6140-01-609-0342

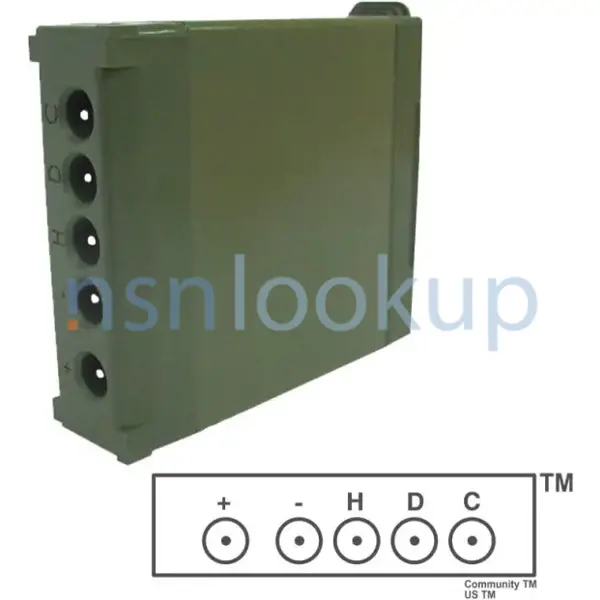

Storage Battery
6140016090342 016090342 BT-70838-1/3BE
A battery, composed of two or more cells forming a single unit, which may or may not be readily separable and which may be efficiently recharged by sending an electric current through the cells in a direction opposite that of the discharging current.The item may be furnished with integral charging facilities.For items which are composed of a single cell see CELL, BATTERY. View more Storage Battery
February 2025
1
Product Information 6140-01-609-0342
BT-70838-1/3BE, Upgraded to BT-70838-1/3CV
Chemistry: Li-ion
2.8 Ah, Rechargeable Lithium-Ion Battery
Enhanced Cold Temperature 1/3 size SMP battery for use in Land Warrior Systems and World Wide Soldier Modernization Programs.
- Complies with SMBus v1.1 and SBData v1.1
- UN/DOT 38.3 Rating: 31 Wh
- Comparable to: BT-70838-2/3, BT-70838-2/3A, BT-70838-2/3Bx, BT-70838, BT-70838A, BT-70838Bx, and BT-70838-1/3BG
- Absolute state of charge indicator
- Blind mate connector for easy installation
- Enhanced Cold Temperature Performance
Typically used in:
- Land Warrior System (German Soldier Modernization Program)
- Land Warrior Programs
- Soldier Modernization Programs
Length 3.537" / Width 3.033" / Height 0.908"
| Nominal Voltage | 10.8V |
|---|---|
| Ah | 2.8 |
| Maximum Voltage | 12.6V |
| Operating Temperature | -32°C to +60°C (-25.6°F to +140°F) |
| Storage Temperature | -40°C to +55°C (-40°F to +131°F) |
| Connector | BT Designed Mating Connector |
| State of Charge Indicator | Yes |
| Battery Type | Rechargeable |
| Smart Battery | SMBus |
| Brenergy | No |
Marketplace 6140-01-609-0342
Request a Quotation from participating marketplace vendors
Related Documents 6140-01-609-0342 5+ Documents (More...)
6140-01-609-0342 3+ Documents ( More... ) https//www.nsnlookup.com /fsg-61/fsc-6140/us 6140-01-609-0342
/fsg-61/fsc-6140/us 6140-01-609-0342 6140-01-609-0342 DEMIL: https//www.nsnlookup.com /fsg-61/fsc-6140
Storage Battery 6140016090342 016090342 Comparable to: BT-70838-2/3, BT-70838-2/3A, BT-70838-2/
/www.nsnlookup.com /fsg-61/fsc-6140 Batteries, Rechargeable from United States (US) Dec 2009 6140-01-609-0342
Restrictions 6140-01-609-0342
6140-01-609-0342 is a Storage Battery Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.
Import and Export 6140-01-609-0342
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 6140-01-609-0342
- France (ZF01)
- Effective Date:
- 1 Jul 2012
Approved Sources 6140-01-609-0342
- Part Number
- Manufacturer
- Status
- BT-70838-1/3BE
- Manufacturer
- 51828 - Bren-Tronics Defense Llc (Active)
- Primary Buy
- Primary Buy
NATO Stock Numbers Related to 6140-01-609-0342
Freight Information 6140-01-609-0342
6140-01-609-0342 has freight characteristics.. 6140-01-609-0342 has a variance between NMFC and UFC when transported by rail and the description should be consulted.
