6140-01-608-5930
Storage Battery
6140016085930 016085930 8250132-1 BT-70737
A battery, composed of two or more cells forming a single unit, which may or may not be readily separable and which may be efficiently recharged by sending an electric current through the cells in a direction opposite that of the discharging current.The item may be furnished with integral charging facilities.For items which are composed of a single cell see CELL, BATTERY. View more Storage Battery
February 2025
2
Product Information 6140-01-608-5930

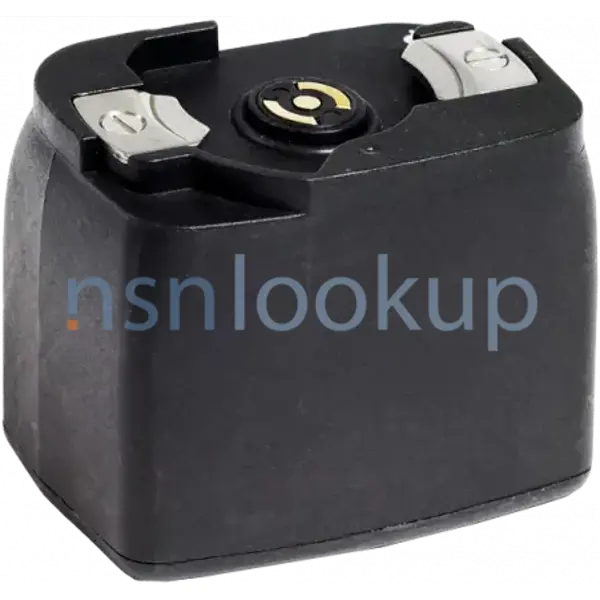

Spearhead, Spearnet, 37 Wh Battery
Chemistry: Li-ion
Spearhead Battery
2.5Ah, Rechargeable Lithium-Ion Battery
- Lithium-Ion Battery designed for use on Spearhead/SpearNet Radio System
- 5 segment LCD
- SMBus v1.1, SBData v1.1 compliant
- UN/DOT 38.3 Rating
- Available Configurations include:
- BT-70737, 2.5Ah, 37Wh
- BT-70737V, 3.4Ah, 50Wh
Length 3.03" / Width 1.89" / Height 2.5"
| Nominal Voltage | 14.4V |
|---|---|
| Ah | 2.5Ah |
| Maximum Voltage | 16.8V |
| Operating Temperature | -20°C to +60°C (-4°F to +140°F) |
| Storage Temperature | -40°C to +40°C (-40°F to +104°F) |
| Connector | 1/4 Turn With Latch Mechanism |
| State of Charge Indicator | Yes |
| Battery Type | Rechargeable |
| Brenergy | No |
Marketplace 6140-01-608-5930
Request a Quotation from participating marketplace vendors
Related Documents 6140-01-608-5930 5+ Documents (More...)
6140-01-608-5930 5+ Documents ( More... ) https//www.nsnlookup.com /fsg-61/fsc-6140/us 6140-01-608-5930
Every Day 6140-01-608-5930 RQST NE Related Documents 6140-01-608-5930 5+ Documents https//www.nsnlookup.com
Storage Battery 6140016085930 016085930 day Upgrade your Account Upgrade 6140-01-608-5930Storage
Battery6140016085930 016085930 8250132-1 BT-70737 day Upgrade your Account Upgrade 6140-01-608-5930Storage
Storage Battery 6140016085930 016085930 day Upgrade your Account Upgrade 6140-01-608-5930Storage
Battery6140016085930 016085930 8250132-1 BT-70737 day Upgrade your Account Upgrade 6140-01-608-5930Storage
Storage Battery 6140016085930 016085930 www.nsnlookup.com https// https//www.nsnlookup.com /fsg
/fsg-59/fsc-5940/us
Storage Battery 6140016085930 016085930 5365012647505 012647505,70737 www.nsnlookup.com https//
Restrictions 6140-01-608-5930
6140-01-608-5930 is a Storage Battery Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.
Import and Export 6140-01-608-5930
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 6140-01-608-5930
- Spain (YB01)
- Effective Date:
- 1 Jul 2012
Approved Sources 6140-01-608-5930
- Part Number
- Manufacturer
- Status
- 8250132-1
- Manufacturer
- 31550 - L3harris Technologies, Inc. (Active)
- Primary Buy
- Primary Buy
- BT-70737
- U0SA5 - Bren-Tronics, Inc. (Uk Office) (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Similar Supply Items to 6140-01-608-5930
Freight Information 6140-01-608-5930
6140-01-608-5930 has freight characteristics.. 6140-01-608-5930 has a variance between NMFC and UFC when transported by rail and the description should be consulted.
