6140-01-606-9491
Storage Battery
6140016069491 016069491 BT-70716BE SMU-00000048
A battery, composed of two or more cells forming a single unit, which may or may not be readily separable and which may be efficiently recharged by sending an electric current through the cells in a direction opposite that of the discharging current.The item may be furnished with integral charging facilities.For items which are composed of a single cell see CELL, BATTERY. View more Storage Battery
February 2025
7
Product Information 6140-01-606-9491

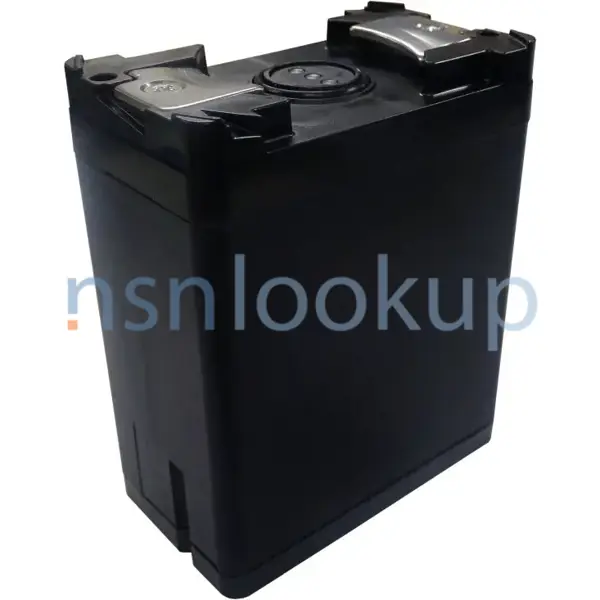

MBITR PRC-148, 5.8 Ah Battery
Chemistry: Li-ion
5.8 Ah, Rechargeable Lithium-Ion Battery
- Meets or exceeds all military rechargeable durability specifications.
- Fully compatible with all AN/PRC-148 variants, chargers and the WAVE radio.
- Communicates using a Single Wire DQ interface
- UN/DOT 38.3 Rating: 63 Wh
Typically used in:
- Wave Relay System
- AN/PRC-148
- TRC-9110
- Silvus StreamCaster 4200
Length 2.6" / Width 1.6" / Height 3.4" / Weight 1.0 lbs
| Nominal Voltage | 10.8V |
|---|---|
| Ah | 5.8 |
| Maximum Voltage | 12.6V |
| Operating Temperature | -30°C to +60°C (-22°F to +140°F) |
| Storage Temperature | -40°C to +70°C (-40°F to +158°F) |
| Connector | Flat Contacts (bottom), Fly Wheel Connection (top) |
| State of Charge Indicator | No |
| Battery Type | Rechargeable |
| Smart Battery | DQ |
| Brenergy | No |
Marketplace 6140-01-606-9491
Request a Quotation from participating marketplace vendors
Related Documents 6140-01-606-9491 5+ Documents (More...)
RQST NE Updated Every Day 6140-01-606-9491 RQST Updated Every Day 6140-01-606-9491 RQST NE Related Documents
6140-01-606-9491 5+ Documents ( More... ) https//www.nsnlookup.com /fsg-61/fsc-6140/us 6140-01-606-9491
//www.nsnlookup.com /fsg-61/fsc-6140/us 6140-01-651-6409 Storage Battery 6140016516409016516409 BT-70716BE-TB62565689AA
3083 https /fsg-61/fsc-6140/us 6140-01-651-6409 https//www.nsnlookup.com /fsg-61/fsc-6140/us 6140-01-606-9491
Storage Battery 6140016069491 016069491 www.nsnlookup.com /fsg-61/fsc-6140/us 6140-01-606-9491
Storage Battery 6140016069491 016069491 United States (US) 19 Jan 2022 6140-01-606-9491 https//
6140-01-699-2474 https// https// Battery 6140016069491016069491 United States (US) 19 Jan 2022 6140-01-606-9491
Restrictions 6140-01-606-9491
6140-01-606-9491 is a Storage Battery Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item has been determined to be hazardous and information is contained in the Hazardous Materials Information Resource System (HMIRS). This item does not contain a precious metal.
Import and Export 6140-01-606-9491
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 6140-01-606-9491
- United Kingdom (ZK01)
- Effective Date:
- 1 May 2012
Approved Sources 6140-01-606-9491
- Part Number
- Manufacturer
- Status
- BT-70716BE
- Manufacturer
- 51828 - Bren-Tronics Defense Llc (Active)
- Primary Buy
- Primary Buy
- SMU-00000048
- C3002 - Esg Elektroniksystem- Und (Active)
- Secondary Buy
- Secondary Buy
Weapon Systems (WSDC) 6140-01-606-9491
DLA Procurement Analysis 6140-01-606-9491
- Last Stock Position:
- 17 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 6140-01-606-9491
Marine Corps
- Stores Account:
- 1
- Stock Fund Account Item
- Echelon Management:
- B2
- Operational Test:
- No Special Procedures
NATO Stock Numbers Related to 6140-01-606-9491
Freight Information 6140-01-606-9491
6140-01-606-9491 has freight characteristics.. 6140-01-606-9491 has a variance between NMFC and UFC when transported by rail and the description should be consulted.
