6140-01-490-5387

Storage Battery

6140014905387 014905387 MIL-PRF-32052/7 8126110 BB-2557/U SMU-00000050 BAT-08 BT-70757 1089156 TRCECOMBB01 BT-70757BK MIL-PRF-32052/1-BB-2557/U MIL-PRF-32052 MIL-PRF-32052/7-BB-2557/U

A battery, composed of two or more cells forming a single unit, which may or may not be readily separable and which may be efficiently recharged by sending an electric current through the cells in a direction opposite that of the discharging current.The item may be furnished with integral charging facilities.For items which are composed of a single cell see CELL, BATTERY. View more Storage Battery

Managed by United States

NSN Created on 29 Sep 2001

Data Last Changed
February 2025

NATO Update Count
24

NATO Data Quality

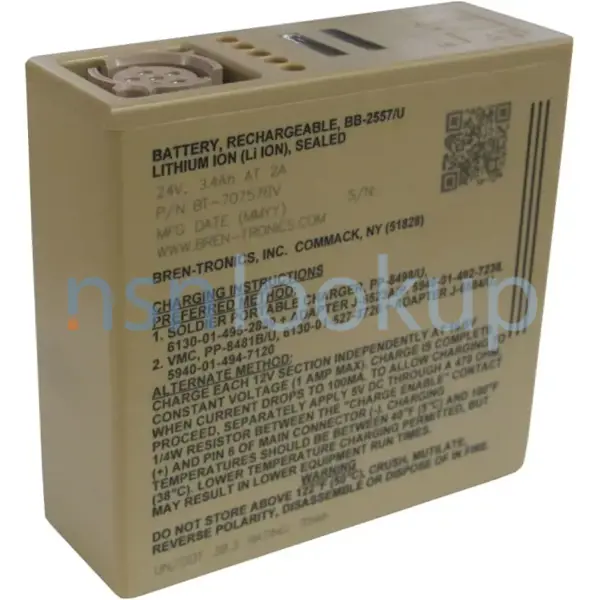

6140-01-490-5387 BATTERY,STORAGE 6140014905387 014905387 1/1 — 6140-01-490-5387 Photo 1/1

Product Information 6140-01-490-5387

BB-2557/U 84Wh Battery

Military # BB-2557/U
Chemistry: Li-ion

5.6 Ah, Rechargeable Lithium-Ion Battery

This configuration of the BB-2557/U is built as a mid price and performance range of the BB-2557. It's tougher and runs 27% longer than the BT-70757 version. It is certified by the DOD for Military Use.

Complies with SMBus v1.1 and SBData v1.1
UN/DOT 38.3 Rating: 84 Wh
Comparable to: BT-70557, BT-70757, BT-70757A, BT-70757BG, BT-70757BK, BT-70757G, BB-2557/U, and BB-557/U
Absolute state of charge indicators

Typically used in:

TACFIRE (AN/PSG-2A & 2B)
REMBASS (RT-1175A/GSQ)
AN/PSQ-7
Unmanned Robots (UGV/UAV)

Nominal Voltage	14.4V, 28.8V
Ah	In 24V Mode: 2.8 Ah, In 12V Mode: 5.6
Maximum Voltage	16.8V
Operating Temperature	-20°C to +60°C (-4°F to +140°F)
Storage Temperature	-40°C to +40°C (-40°F to +104°F)
Connector	6 Pin Floating Type per U.S. Army DWG # SC-C-179495
State of Charge Indicator	Yes
Battery Type	Rechargeable
Smart Battery	SMBus
Brenergy	No

Marketplace 6140-01-490-5387

Need Help?
Request a Quotation from participating marketplace vendors

Subscribe to View Vendor Details...

6140-01-490-5387 BATTERY,STORAGE 2 EA NS

BT-70757 BATTERY,STORAGE 2 EA NS

Updated Every Day

6140-01-490-5387 RQST NE

Updated Every Day

6140-01-490-5387 RQST

Updated Every Day

6140-01-490-5387 RQST NE

Restrictions 6140-01-490-5387

6140-01-490-5387 is a Storage Battery that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item has been determined to be hazardous and information is contained in the Hazardous Materials Information Resource System (HMIRS). This item does not contain a precious metal.

Import and Export 6140-01-490-5387

Schedule B: Subscribe to View Schedule B
HTS Code: Subscribe to View HTS Code

End Users 6140-01-490-5387

US Army (A918)
Effective Date:: 1 Sep 2006
Former MOE Rule:: A178
Supplementary Receivers:: CL; AMC 1 AMSC G IMC Z IMCACTY CD

US Air Force (FJGG)
Effective Date:: 1 Dec 2015; AMC 1 AMSC G IMC Z IMCACTY SJ

US Marine Corps (MC41)
Effective Date:: 1 Oct 2007; AMC 1 AMSC G IMC Z IMCACTY PA

US Navy (N9BG)
Effective Date:: 1 Dec 2013
Supplementary Collaborators:: GG; AMC 1 AMSC G IMC Z IMCACTY GH

Estonia (WE01)
Effective Date:: 1 Jun 2011

Czech Republic (WZ01)
Effective Date:: 1 Feb 2010

Spain (YB01)
Effective Date:: 1 Dec 2013

Singapore (YJ01)
Effective Date:: 1 Sep 2015

Australia (ZA01)
Effective Date:: 1 Jul 2014

Canada (ZC01)
Effective Date:: 1 Jan 2014

New Zealand (ZE01)
Effective Date:: 1 Aug 2009

Netherlands (ZN01)
Effective Date:: 1 Feb 2009

Denmark (ZS01)
Effective Date:: 1 Jul 2007

Norway (ZT01)
Effective Date:: 1 Apr 2011

Approved Sources 6140-01-490-5387

Part Number
Manufacturer
Status
BB-2557/U: 81349 - Military Specifications (Active); Definitive Standard; RNCC 2 RNVC 2 DAC E
MIL-PRF-32052/7: 81349 - Military Specifications (Active); Incomplete Standard; RNCC 4 RNVC 1 DAC E
8126110: F6235 - Compagnie Industrielle Des Lasers (Active); Incomplete Secondary Reference; RNCC 5 RNVC 1 DAC 2
BB-2557/U: 51828 - Bren-Tronics Defense Llc (Active); Incomplete Secondary Reference; RNCC 5 RNVC 1 DAC 5
SMU-00000050: C3002 - Esg Elektroniksystem- Und (Active); Incomplete Secondary Reference; RNCC 5 RNVC 1 DAC 3
BAT-08: Z0CU7 - Cistech Solutions (Active); Incomplete Secondary Reference; RNCC 5 RNVC 1 DAC 5
BB-2557/U: 80063 - Us Army Communications & Electronics (Active); Incomplete Secondary Reference; RNCC 5 RNVC 1 DAC 4
BT-70757: 51828 - Bren-Tronics Defense Llc (Active); Incomplete Secondary Reference; RNCC 5 RNVC 1 DAC 5
1089156: 81996 - Us Army Aviation And Missile Command (Active); Incomplete Secondary Reference; RNCC 5 RNVC 1 DAC D
TRCECOMBB01: 80063 - Us Army Communications & Electronics (Active); Incomplete Secondary Reference; RNCC 5 RNVC 1 DAC 5
BT-70757BK: 51828 - Bren-Tronics Defense Llc (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 4
MIL-PRF-32052/1-BB-2557/U: 81349 - Military Specifications (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC E
MIL-PRF-32052: 81349 - Military Specifications (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC E
MIL-PRF-32052/7-BB-2557/U: 81349 - Military Specifications (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC E

Datasheet 6140-01-490-5387

Characteristic
Specifications
FIIG: T139-A
Special Features [FEAT]: Battery Output= 16.55/33 (Ocv)& 12/24 Volts (Nom); Cutoff Voltage= 8 Volts; Battery Capacity= 1.8 Amp-Hours At 1 Amp Discharge; Battery Chemistry Is Lithium Ion; Operating Temps= -20C To +50C (-4F To 122F)

Weapon Systems (WSDC) 6140-01-490-5387

Subscribe
View WSDC

Subscribe to View Weapon System Codes...

Subscribe
View Data

DLA Procurement Analysis 6140-01-490-5387

Last Stock Position:: 341 In Stock
DLA Administrative Lead Time:: Subscribe
DLA Production Lead Time:: Subscribe

Subscribe to View DLA Inventory and Forecast...

Management Data 6140-01-490-5387

Subscribe
View Prices

Effective Date: Organization; Unit of Issue; Unit Price; Qty Unit Pack
Oct 2022: Department of the Air Force (DF); EA; Subscribe; 1
Oct 2021: Defense Logistics Agency (DS); EA; Subscribe; 1
Oct 2020: Defense Logistics Agency (DS); EA; Subscribe; 1
Oct 2019: Department of the Air Force (DF); EA; Subscribe; 1

Army

Materiel Category and Inventory Manager:

Q: Electronics Materiel (DLA/GSA Items)

Appropriation and Budget Activity:

2: Stock Fund Secondary Items

Management Inventory Segment:

2: Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.

Weapons System / End Item / Homogeneous Group:

TQ: Other Electronics Equipment
Rechargeable batteries

Accounting Requirements:

X: Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.

Navy

Cognizance:

9B: Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg

Special Material Content:

4: Item or part that contains hazardous material(s) and could require special handling during maintenance or disposal

Marine Corps

Stores Account:

1: Stock Fund Account Item

Combat Essentiality:

2: Non-Critical Repair Part

Echelon Management:

B2

Operational Test:

: No Special Procedures

Physical Category:

1: Bin

Similar Supply Items to 6140-01-490-5387

Freight Information 6140-01-490-5387

6140-01-490-5387 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 060700. A Sub NMFC of X. It has a NMFC Description of BATTERIES OR CELLS. 6140-01-490-5387 is rated as class 60 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 34110 which rates the freight between FCL and LCL. 6140-01-490-5387 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 582 for ocean manifesting and military sealift. 6140-01-490-5387 is not classified as a special type of cargo when transported by water. 6140-01-490-5387 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.

Packaging Data 6140-01-490-5387

Responsible Activity
Packaging Data Source: Primary Inventory Control Activity (PICA); --

Item Pack Level (Unpackaged)

Item Size
Item Weight
Characteristics
Weight/Dimensions Category
Fragility
Item Preservation: --; --; Non-Metallic Item; Over 10lb; Less than 85G; Special Requirement

Unit Pack Level (Packaged)

Quantity per Pack
Unit Size
Unit Weight
Unit Cube
Preservation Method
Cleaning/Drying: 1; --; --; --; --; --

Preservation Material
Wrapping Material
Cushioning/Dunnage
Cushioning Thickness
Container
Special Marking: --; --; --; --; --; Type II, shelf life

Intermediate Pack Level

Quantity of Unit Packs
Container: See Method of Preservation; --

Procurement History 6140-01-490-5387 9 Records

Subscribe
View Prices

Contract: Date; CAGE; Quantity; Net Price; Std Price
SPE7LX19F0768: 22 Nov 2018; Subscribe; 208; Subscribe; Subscribe
SPE7LX18F0816: 30 Nov 2017; Subscribe; 320; Subscribe; Subscribe
SPE7LX18F0659: 13 Nov 2017; Subscribe; 463; Subscribe; Subscribe
SPE7LX17D00740001: 10 Aug 2017; Subscribe; 365; Subscribe; Subscribe
SPE7L717P0959: 06 Dec 2016; Subscribe; 418; Subscribe; Subscribe
SPE7L716M4579: 24 Aug 2016; Subscribe; 72; Subscribe; Subscribe
SPE7L716C0008: 22 Dec 2015; Subscribe; 1170; Subscribe; Subscribe
SPE7L715M1443: 18 Dec 2014; Subscribe; 340; Subscribe; Subscribe
SPM7LA13M1592P00002: 01 Feb 2013; Subscribe; 604; Subscribe; Subscribe

Contracting Technical Data File (CTDF) 6140-01-490-5387 October 2021

Criticality and Quality

Critical Item Code:
Flight Safety:
Life Support:
Certified Samples:
Serialization:
First Article Test (FAT):
Certificate of Quality Compliance:
Production Lot Testing:
Special Testing:
Qualified Products List (QPL):

Commercial Properties

Government Furnished Material:
Government Furnished Tooling:
Government Furnished Property:
Price Evaluation Code:
Diminshing Manufacturing Sources:
Warranty:
Commerical Off The Shelf (COTS):
End Item Application:
Auctioning Candidate:
Source of Procurement:
Contract Option:

Restrictions

Boeing Rights Guard:
Export Controlled:
Controlled Technical Data Package (TDP):
Restricted Technical Data Package (TDP):
Contains Classified Material
Weapons System Indicator Code (WSIC):: Y

Packaging Requirements

Packaging Determination Table:
Packaging Review Code:: N
Special Packaging Instruction Number (SPIN):
Special Packaging Instruction Number Revision:
Special Packaging Instruction Number Date:
Pallet Reference Number Required:

Subscribe
View CTDF

Subscribe to View CTDF Details...
