6135-01-568-3234

Nonrechargeable Battery

6135015683234 015683234 BA-5301A/U 4866112-020 MAI-901022 BTA-70720

A battery, composed of two or more cells forming a single unit, which is not rechargeable and whose electrolyte generally is not in fluid form. For batteries which are recargeable, see BATTERY (1), STORAGE. For items which are composed of a single cell, see CELL BATTERY. Excludes BATTERY, WATER-ACTIVATED. View more Nonrechargeable Battery

Managed by United States

NSN Created on 27 Oct 2008

Data Last Changed
February 2025

NATO Update Count
2

NATO Data Quality

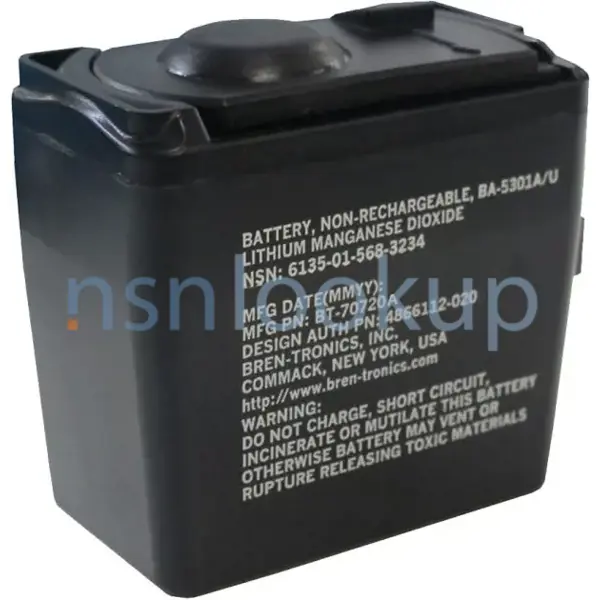

6135-01-568-3234 BATTERY,NONRECHARGEABLE 6135015683234 015683234 1/2 — 6135-01-568-3234 Photo 1/2

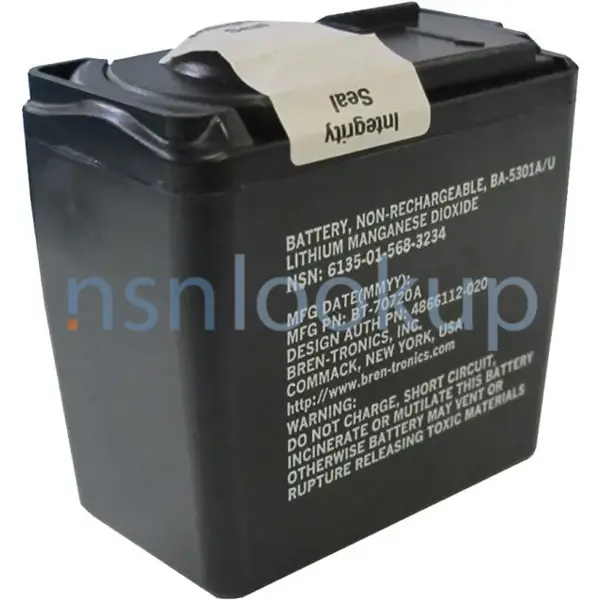

6135-01-568-3234 BATTERY,NONRECHARGEABLE 6135015683234 015683234 2/2 — 6135-01-568-3234 Photo 2/2

Product Information 6135-01-568-3234

BA-5301A/U CSEL Primary Battery

Military # BA-5301A/U
Chemistry: Li-SOCl2

CSEL, Non-Rechargeable Lithium Manganese Dioxide Battery

Handheld non-rechargeable Lithium Manganese Dioxide radio battery typically used in AN/PRQ-7 CSEL (Boeing Combat Survivor Evader Locator Radio).

Communicates using a Single Wire DQ Interface
Comparable to: BT-70581, BT-70581A, BT-70581B, BT-70581Cx, BT-70676Bx, BB-2001A/U, BA-5301A/U,
BT-70720, MAI-901017, MAI-901018, MAI-901020, and 4866112-004
Immersion: Tested to 10 meters for 5 minutes, 1 meter for 12 hours

Length 3.05" / Width 0.72" / Height 2.95"

Nominal Voltage	15.9V
Ah	2.8
Maximum Voltage	16.4V
Operating Temperature	-20°C to +55°C (-4°F to +131°F)
Storage Temperature	-40°C to +40°C (-40°F to +104°F)
Connector	Flat Contacts (side), Fly Wheel Connection (top)
State of Charge Indicator	Yes
Battery Type	Primary
Smart Battery	DQ
Brenergy	No

Marketplace 6135-01-568-3234

Need Help?
Request a Quotation from participating marketplace vendors

Updated Every Day

6135-01-568-3234 RQST NE

Updated Every Day

6135-01-568-3234 RQST

Updated Every Day

6135-01-568-3234 RQST NE

Restrictions 6135-01-568-3234

6135-01-568-3234 is a Nonrechargeable Battery that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item has been determined to be hazardous and information is contained in the Hazardous Materials Information Resource System (HMIRS). This item does not contain a precious metal.

Import and Export 6135-01-568-3234

Schedule B: Subscribe to View Schedule B
HTS Code: Subscribe to View HTS Code

End Users 6135-01-568-3234

US Army (A503)
Effective Date:: 1 Oct 2008; AMC 4 AMSC N IMC J

US Air Force (FGCL)
Effective Date:: 1 Oct 2011; AMC 4 AMSC N

US Navy (N9Y5)
Effective Date:: 1 Jun 2012
Supplementary Collaborators:: GT; AMC 4 AMSC N

Approved Sources 6135-01-568-3234

Part Number
Manufacturer
Status
4866112-020: 94756 - The Boeing Company (Active); Primary Buy; RNCC 3 RNVC 2 DAC 4
BA-5301A/U: 80058 - Joint Electronics Type Designation (Active); Incomplete Secondary Reference; RNCC 5 RNVC 1 DAC 5
MAI-901022: 4U927 - Mathews Associates Inc (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 4
BTA-70720: 51828 - Bren-Tronics Defense Llc (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 4

Datasheet 6135-01-568-3234

Characteristic
Specifications
FIIG: T139-A
Overall Width [ABMK]: 3.120 Inches Nominal
Overall Depth [ABFY]: 1.740 Inches Nominal
Overall Height [ABKW]: 2.850 Inches Nominal
Joint Electronics Type Designation System Item Name [AKWA]: Battery,Nonrechargeable
Joint Electronics Type Designation System Item Type Number [AKWB]: Ba-5301A/U
Special Features [FEAT]: Weight:10.000 Ounces
End Item Identification [AGAV]: An/Prq-7

Management Data 6135-01-568-3234

Subscribe
View Prices

Effective Date: Organization; Unit of Issue; Unit Price; Qty Unit Pack
Oct 2022: Department of the Army (DA); EA; Subscribe; 1
Oct 2021: Department of the Army (DA); EA; Subscribe; 1
Oct 2020: Department of the Air Force (DF); EA; Subscribe; 1
Nov 2019: Department of the Army (DA); EA; Subscribe; 1
Oct 2019: Department of the Air Force (DF); EA; Subscribe; 1

MOE: USC; Code; Statement; Order of Use; Jump To Code; Qty Per Assy; UOM; Technical Document; Quantative Expression
Department of the Army (DA): A; 7; Substitute For 6135-01-512-8740; AAA
Department of the Army (DA): A; Dod I&S Family Master Nsn - - -; ABA
Department of the Army (DA): I; 7; Substitute For 6135-01-512-8740; AAA
Department of the Army (DA): I; Dod I&S Family Master Nsn - - -; ABA

Army

Materiel Category and Inventory Manager:

G: Communications and Electronics Equipment, Electronics Materiel

Appropriation and Budget Activity:

2: Stock Fund Secondary Items

Management Inventory Segment:

2: Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.

Weapons System / End Item / Homogeneous Group:

TF: Other Electronics Equipment
Gen Purp Elec Power

Accounting Requirements:

X: Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.

Air Force

Fund:

SF: Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point

Budget:

9: 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors

Price Validation Code:

N: The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
The price has not been analyzed or reviewed for accuracy.
ZOP or Standard price challenges are permissible but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of “L” or “F”, then it must be evaluated locally where purchased or fabricated.

Expendability Recoverability Repairability:

N: Expendable. Condemn at User. Stock Fund (except Munitions).

Navy

Cognizance:

9Y

Special Material Content:

E: Lithium Battery

Similar Supply Items to 6135-01-568-3234

Freight Information 6135-01-568-3234

6135-01-568-3234 has freight characteristics.. 6135-01-568-3234 has a variance between NMFC and UFC when transported by rail and the description should be consulted.

Packaging Data 6135-01-568-3234

Responsible Activity
Packaging Data Source: Primary Inventory Control Activity (PICA); --

Storage Environment: Heated General Purpose – Heated 40 F and above

Item Pack Level (Unpackaged)

Item Size
Item Weight
Characteristics
Weight/Dimensions Category
Fragility
Item Preservation: 3.8" H x 3.5" W x 2.0" L; --; --; Over 10lb; Less than 85G; No Requirement

Unit Pack Level (Packaged)

Quantity per Pack
Unit Size
Unit Weight
Unit Cube
Preservation Method
Cleaning/Drying: 1; 4.0" H x 3.8" W x 2.3" L; --; --; --; Any Suitable Process

Preservation Material
Wrapping Material
Cushioning/Dunnage
Cushioning Thickness
Container
Special Marking: No Requirement; No Requirement; No Requirement; Not Applicable; MIL-DTL-117, Bag; No special marking

Intermediate Pack Level

Quantity of Unit Packs
Container: No Requirement
