6135-01-465-0759

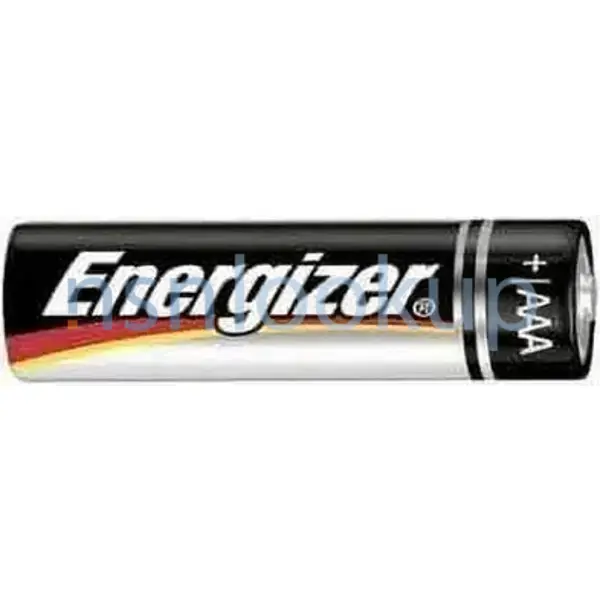

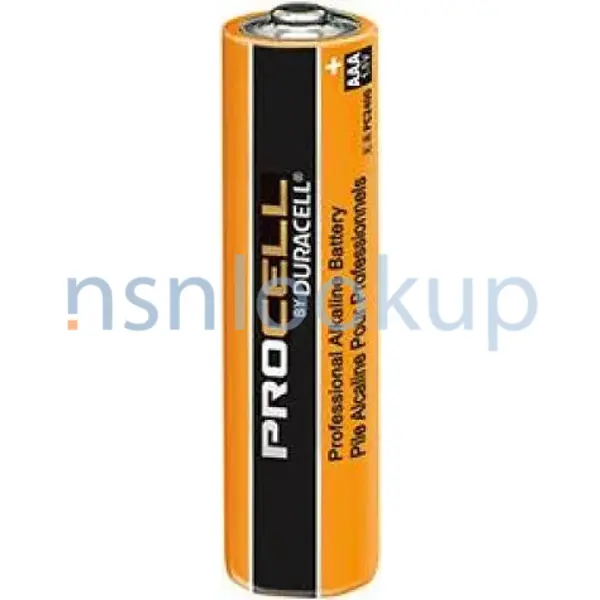

Nonrechargeable Battery
6135014650759 014650759 E92 EN92 84515 824 PC2400 008264798
A battery, composed of two or more cells forming a single unit, which is not rechargeable and whose electrolyte generally is not in fluid form. For batteries which are recargeable, see BATTERY (1), STORAGE. For items which are composed of a single cell, see CELL BATTERY. Excludes BATTERY, WATER-ACTIVATED. View more Nonrechargeable Battery
May 2023
7
Marketplace 6135-01-465-0759
Request a Quotation from participating marketplace vendors
Updated Every Day
Updated Every Day
Updated Every Day Updated Every Day Updated Every Day Related Documents 6135-01-465-0759 5+ Documents (More...)
Restrictions 6135-01-465-0759
6135-01-465-0759 is a Nonrechargeable Battery that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item has been determined to be hazardous and information is contained in the Hazardous Materials Information Resource System (HMIRS). This item does not contain a precious metal. This item is sensitive to Electrostatic Discharge.
Import and Export 6135-01-465-0759
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 6135-01-465-0759
- US Navy (N9BG)
- Effective Date:
- 1 Sep 2006
- Former MOE Rule:
- N9GD
- Supplementary Collaborators:
- GTHP
- Columbia (YC01)
- Effective Date:
- 1 Jul 2015
Approved Sources 6135-01-465-0759
- Part Number
- Manufacturer
- Status
- E92
- Manufacturer
- 83740 - Eveready Battery Co Inc (Active)
- Primary Buy
- Primary Buy
- EN92
- 83740 - Eveready Battery Co Inc (Active)
- Secondary Buy
- Secondary Buy
- 84515
- 34870 - Fjw Optical Systems, Inc (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 824
- 77542 - Spectrum Brands, Inc. (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- PC2400
- 90303 - Duracell Inc (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 008264798
- 99998 - Defense Supply Center Richmond (Active)
- NATO Reference
- NATO Reference
Datasheet 6135-01-465-0759
- Characteristic
- Specifications
- FIIG
- Specifications
- T139-A
- Battery Electrolyte [AEXT]
- Alkaline
- Commercial Battery Size Designation [AFKS]
- Aaa
- Nondefinitive Spec/Std Data [ZZZT]
- L30 Type And Aaa Size And P Class
- Usage Design [ALCD]
- Flashlights, Photo, Calculators, Toys
- Shape [SHPE]
- Cylindrical
- Overall Diameter [ADAV]
- 0.413 Inches Maximum
- Overall Length [ABHP]
- 1.752 Inches Nominal
- Special Features [FEAT]
- Do Nnot Dupe To Nsn 6135-00-826-4798. This Nsn For Pearl Harbor Use Only. This Is A Non-Standard Unit-Of-Issue. Pd 7Fxee-92-239 Type 2, Size Aaa
- Voltage In Volts [ELEC]
- 1.5
- Specification/Standard Data [ZZZK]
- 80204-Ansi C18.1 Professional/Industrial Association Standard
- Terminal Quantity [AARA]
- 2
- Terminal Type [AARB]
- Flat Surface
DLA Procurement Analysis 6135-01-465-0759
Management Data 6135-01-465-0759
- Effective Date
- Organization
- Unit of Issue
- Unit Price
- Qty Unit Pack
- Unit of Issue
- Oct 2022
- Defense Logistics Agency (DS)
- EA
- Subscribe
- 1
- EA
- Oct 2021
- Department of the Navy (DN)
- EA
- Subscribe
- 1
- EA
- Oct 2020
- Defense Logistics Agency (DS)
- EA
- Subscribe
- 1
- EA
- May 2014
- Department of the Navy (DN)
- EA
- Subscribe
- 1
- EA
- Dec 2012
- Defense Logistics Agency (DS)
- EA
- Subscribe
- 1
- EA
- MOE
- USC
- Code
- Statement
- Order of Use
- Jump To Code
- Qty Per Assy
- UOM
- Technical Document
- Quantative Expression
- Code
- Department of the Navy (DN)
- N
- Y
- Equivalent To 6135-00-826-4798
- Y
- Defense Logistics Agency (DS)
- I
- Y
- Equivalent To 6135-00-826-4798
- Y
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
- Special Material Content:
- 4
- Item or part that contains hazardous material(s) and could require special handling during maintenance or disposal
NATO Stock Numbers Related to 6135-01-465-0759
Freight Information 6135-01-465-0759
6135-01-465-0759 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 060700. A Sub NMFC of X. It has a NMFC Description of BATTERIES OR CELLS. 6135-01-465-0759 is rated as class 60 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 34110 which rates the freight between FCL and LCL. 6135-01-465-0759 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 582 for ocean manifesting and military sealift. 6135-01-465-0759 is not classified as a special type of cargo when transported by water. 6135-01-465-0759 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 6135-01-465-0759
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Electrical Instrument
- Over 10lb
- Less than 85G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- --
- --
- --
- MIL-DTL-117, Bag
- Type I, shelf life
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- See Method of Preservation
- --
Contracting Technical Data File (CTDF) 6135-01-465-0759 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- N
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
