6135-01-357-0621

Nonrechargeable Battery

6135013570621 013570621 BT70242-1 16VE584027-1 3129309-1 8515351-2 LDA-5HT BT70242 6135PL0933492 3129309

A battery, composed of two or more cells forming a single unit, which is not rechargeable and whose electrolyte generally is not in fluid form. For batteries which are recargeable, see BATTERY (1), STORAGE. For items which are composed of a single cell, see CELL BATTERY. Excludes BATTERY, WATER-ACTIVATED. View more Nonrechargeable Battery

Managed by United States

NSN Created on 16 Apr 1992

Data Last Changed
February 2025

NATO Update Count
23

NATO Data Quality

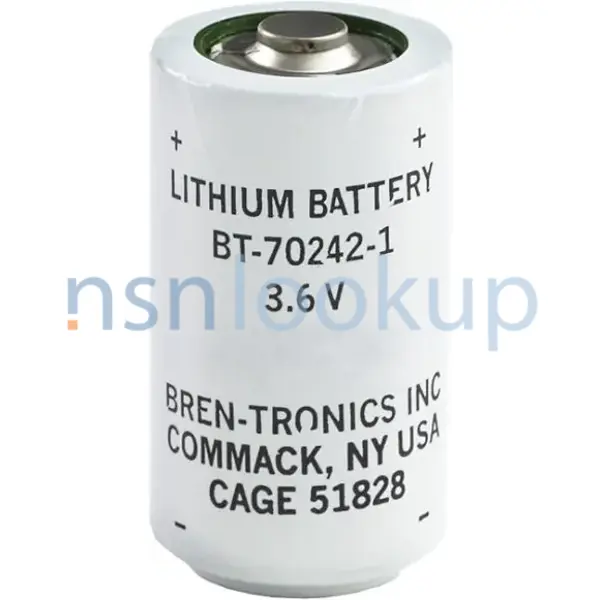

6135-01-357-0621 BATTERY,NONRECHARGEABLE 6135013570621 013570621 1/1 — 6135-01-357-0621 Photo 1/1

Product Information 6135-01-357-0621

Primary Battery

Chemistry: Li-SOCl2

13.0 Ah, Non-Rechargeable Lithium-Thionyl Chloride Battery
Internal 5A Fuse
5 year storage @ 21°C & 50% R.H. capacity will be greater than 97%

Length 2.4" ./ Width 1.3"

Nominal Voltage	3.6V
Ah	13
Operating Temperature	-55°C to +85°C (-67°F to +185°F)
Storage Temperature	-55°C to +55°C (-67°F to +131°F) Recommended +30°C max
Connector	Pos (+): metal button; Neg (-): metal disc
State of Charge Indicator	No
Battery Type	Primary
Brenergy	No

Marketplace 6135-01-357-0621

Need Help?
Request a Quotation from participating marketplace vendors

Updated Every Day

6135-01-357-0621 RQST NE

Updated Every Day

6135-01-357-0621 RQST

Updated Every Day

6135-01-357-0621 RQST NE

Restrictions 6135-01-357-0621

6135-01-357-0621 is a Nonrechargeable Battery that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item has been determined to be hazardous and information is contained in the Hazardous Materials Information Resource System (HMIRS). This item does not contain a precious metal.

Import and Export 6135-01-357-0621

Schedule B: Subscribe to View Schedule B
HTS Code: Subscribe to View HTS Code

End Users 6135-01-357-0621

US Air Force (FXGG)
Effective Date:: 1 Sep 2006
Former MOE Rule:: FXCX; AMC 1 AMSC C IMC Z IMCACTY SX

US Navy (N9BG)
Effective Date:: 1 Dec 2013
Supplementary Collaborators:: GG; AMC 1 AMSC C IMC Z IMCACTY GH

General Services Administration (TGM1)
Effective Date:: 2 Dec 2004

Poland (WP01)
Effective Date:: 1 Sep 2007

Singapore (YJ01)
Effective Date:: 1 Jun 2001

Belgium (ZB01)
Effective Date:: 1 Sep 1998

Republic of Korea (ZH01)
Effective Date:: 1 Nov 1995

Portugal (ZP01)
Effective Date:: 1 Oct 2004

Denmark (ZS01)
Effective Date:: 1 Jun 2001

Norway (ZT01)
Effective Date:: 1 Nov 1998

Greece (ZU01)
Effective Date:: 1 May 2008

Approved Sources 6135-01-357-0621

Part Number
Manufacturer
Status
BT70242-1: 51828 - Bren-Tronics Defense Llc (Active); Primary Buy; RNCC 3 RNVC 2 DAC 2
16VE584027-1: 81755 - Lockheed Martin Corporation (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 4
LDA-5HT: 87362 - Yardney Technical Products Inc. (Obsolete); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
BT70242: 51828 - Bren-Tronics Defense Llc (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
6135PL0933492: 9009H - Jednolity Indeks Materialowy - (Active); NATO Reference; RNCC 6 RNVC 9 DAC 9
3129309-1: 96214 - Raytheon Company (Active); Vendor Drawing; RNCC 7 RNVC 2 DAC 2
8515351-2: 07187 - Honeywell International Inc. (Active); Vendor Drawing; RNCC 7 RNVC 2 DAC A
3129309: 96214 - Raytheon Company (Active); Informational Drawing; RNCC D RNVC 9 DAC 2

Datasheet 6135-01-357-0621

Characteristic
Specifications
FIIG: T139-A
Battery Electrolyte [AEXT]: Lithium
Voltage In Volts [ELEC]: 3.6
Shape [SHPE]: Cylindrical
Terminal Quantity [AARA]: 2
Terminal Type [AARB]: Button
Terminal Type [AARB]: Flat Surface
Overall Diameter [ADAV]: 1.380 Inches Nominal
Overall Length [ABHP]: 2.420 Inches Nominal

Weapon Systems (WSDC) 6135-01-357-0621

Subscribe
View WSDC

Subscribe to View Weapon System Codes...

Subscribe
View Data

DLA Procurement Analysis 6135-01-357-0621

Last Stock Position:: 1206 In Stock
DLA Administrative Lead Time:: Subscribe
DLA Production Lead Time:: Subscribe

Subscribe to View DLA Inventory and Forecast...

Management Data 6135-01-357-0621

Subscribe
View Prices

Effective Date: Organization; Unit of Issue; Unit Price; Qty Unit Pack
Oct 2022: Department of the Navy (DN); EA; Subscribe; 1
Oct 2021: Defense Logistics Agency (DS); EA; Subscribe; 1
Oct 2020: Defense Logistics Agency (DS); EA; Subscribe; 1
Oct 2019: Department of the Air Force (DF); EA; Subscribe; 1

Air Force

Fund:

SF: Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point

Budget:

9: 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors

Aggregation Code:

SX: SICA RESIDUAL MMAC-OC-ALC

Price Validation Code:

N: The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
The price has not been analyzed or reviewed for accuracy.
ZOP or Standard price challenges are permissible but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of “L” or “F”, then it must be evaluated locally where purchased or fabricated.

Expendability Recoverability Repairability:

N: Expendable. Condemn at User. Stock Fund (except Munitions).

Navy

Cognizance:

9B: Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg

Special Material Content:

E: Lithium Battery

Similar Supply Items to 6135-01-357-0621

Freight Information 6135-01-357-0621

6135-01-357-0621 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 060700. A Sub NMFC of X. It has a NMFC Description of BATTERIES OR CELLS. 6135-01-357-0621 is rated as class 60 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 34110 which rates the freight between FCL and LCL. 6135-01-357-0621 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 582 for ocean manifesting and military sealift. 6135-01-357-0621 is classified as a Miscellaneous Hazardous Material, UN Class 9, when transported by water. 6135-01-357-0621 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.

Packaging Data 6135-01-357-0621

Responsible Activity
Packaging Data Source: Primary Inventory Control Activity (PICA); --

Item Pack Level (Unpackaged)

Item Size
Item Weight
Characteristics
Weight/Dimensions Category
Fragility
Item Preservation: --; --; Non-Metallic Item; Over 10lb; Less than 85G; No Requirement

Unit Pack Level (Packaged)

Quantity per Pack
Unit Size
Unit Weight
Unit Cube
Preservation Method
Cleaning/Drying: 1; --; --; --; --; --

Preservation Material
Wrapping Material
Cushioning/Dunnage
Cushioning Thickness
Container
Special Marking: --; --; --; --; Special requirement – See specific instructions or drawings provided; Type I, shelf life

Intermediate Pack Level

Quantity of Unit Packs
Container: See Method of Preservation; --

Procurement History 6135-01-357-0621 20 Records

Subscribe
View Prices

Contract: Date; CAGE; Quantity; Net Price; Std Price
SPE7L023V4217: 04 Aug 2023; Subscribe; 370; Subscribe; Subscribe
SPE7L022V3112: 04 May 2022; Subscribe; 226; Subscribe; Subscribe
SPE7L019V2313: 28 Dec 2018; Subscribe; 557; Subscribe; Subscribe
SPE7L019V0919: 29 Oct 2018; Subscribe; 807; Subscribe; Subscribe
SPE7L018V9222P00001: 24 Sep 2018; Subscribe; 100; Subscribe; Subscribe
SPE7L718P4949P00001: 25 Jul 2018; Subscribe; 542; Subscribe; Subscribe
SPE7L018V4200: 15 Mar 2018; Subscribe; 553; Subscribe; Subscribe
SPE7L717P5461P00001: 08 Sep 2017; Subscribe; 891; Subscribe; Subscribe
SPE7L717P3186: 03 May 2017; Subscribe; 460; Subscribe; Subscribe
SPE7L017V0475P00001: 21 Oct 2016; Subscribe; 379; Subscribe; Subscribe
SPE7L016V4244: 06 Apr 2016; Subscribe; 443; Subscribe; Subscribe
SPE7L716M0431: 27 Oct 2015; Subscribe; 420; Subscribe; Subscribe
SPE7L715M4463: 30 Jun 2015; Subscribe; 505; Subscribe; Subscribe
SPE7L715M2176: 06 Feb 2015; Subscribe; 465; Subscribe; Subscribe
SPE7L015V1579: 13 Nov 2014; Subscribe; 1023; Subscribe; Subscribe
SPE7L715M0144: 14 Oct 2014; Subscribe; 429; Subscribe; Subscribe
SPM7LA13V1304: 27 Jul 2013; Subscribe; 617; Subscribe; Subscribe
SPM7LA13M2513: 15 Apr 2013; Subscribe; 660; Subscribe; Subscribe
SPM7LA13M2078: 06 Mar 2013; Subscribe; 328; Subscribe; Subscribe
SPM7LA13V0607: 09 Feb 2013; Subscribe; 316; Subscribe; Subscribe

Contracting Technical Data File (CTDF) 6135-01-357-0621 October 2021

Criticality and Quality

Critical Item Code:: X
Flight Safety:
Life Support:
Certified Samples:
Serialization:
First Article Test (FAT):
Certificate of Quality Compliance:
Production Lot Testing:
Special Testing:
Qualified Products List (QPL):

Commercial Properties

Government Furnished Material:
Government Furnished Tooling:
Government Furnished Property:
Price Evaluation Code:
Diminshing Manufacturing Sources:
Warranty:
Commerical Off The Shelf (COTS):
End Item Application:
Auctioning Candidate:
Source of Procurement:
Contract Option:

Restrictions

Boeing Rights Guard:
Export Controlled:
Controlled Technical Data Package (TDP):
Restricted Technical Data Package (TDP):
Contains Classified Material
Weapons System Indicator Code (WSIC):: L

Packaging Requirements

Packaging Determination Table:
Packaging Review Code:: N
Special Packaging Instruction Number (SPIN):
Special Packaging Instruction Number Revision:
Special Packaging Instruction Number Date:
Pallet Reference Number Required:
