6130-00-957-8661
Metallic Rectifier
6130009578661 009578661 61-8369
An electrical item (the working element of which is constructed essentially of metallic substances) which changes alternating current to direct current by the rectifying action occurring at the junction interface between a metallic conductor and a semiconductor. Excludes sets of metallic rectifiers which are not rated for rectifying capabilities but are used as suppressors. For items containing germanium or silicon, see SEMICONDUCTOR DEVICE (1), DIODE; SEMICONDUCTOR DEVICE SET and RECTIFIER, SEMICONDUCTOR DEVICE. For a complete power supply utilizing metallic rectifiers, see POWER SUPPLY. View more Metallic Rectifier
November 2023
9
Marketplace 6130-00-957-8661
Request a Quotation from participating marketplace vendors
Related Documents 6130-00-957-8661 2+ Documents (More...)
Updated Every Day 6130-00-957-8661 RQST NE Related Documents 6130-00-957-8661 2+ Documents ( More...
BUY NE FedMall Updated Every Day 6130-00-957-8661 RQST NE Updated Every Day 6130-00-957-8661 RQST Updated
Metallic Rectifier 6130009578661 009578661 Updated Every Day 6130-00-957-8661 RQST Updated https
the Navy (DN)NVDiscontinued Without ReplacementDefense Logistics Agency (DS)IZDiscontinued-Use 6130-00-957-8661
Restrictions 6130-00-957-8661
6130-00-957-8661 is a Metallic Rectifier that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 6130-00-957-8661
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 6130-00-957-8661
- US Air Force (FXGG)
- Effective Date:
- 1 Sep 2006
- Former MOE Rule:
- FXCX
- US Navy (N9BG)
- Effective Date:
- 1 Sep 2006
- Supplementary Collaborators:
- GTKE
Approved Sources 6130-00-957-8661
- Part Number
- Manufacturer
- Status
- 61-8369
- Manufacturer
- 59656 - Dean Technology Inc. (Active)
- Primary Buy
- Primary Buy
- 61-8369
- 81483 - Infineon Technologies Americas Corp (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 6130-00-957-8661
- Characteristic
- Specifications
- FIIG
- Specifications
- T327-B

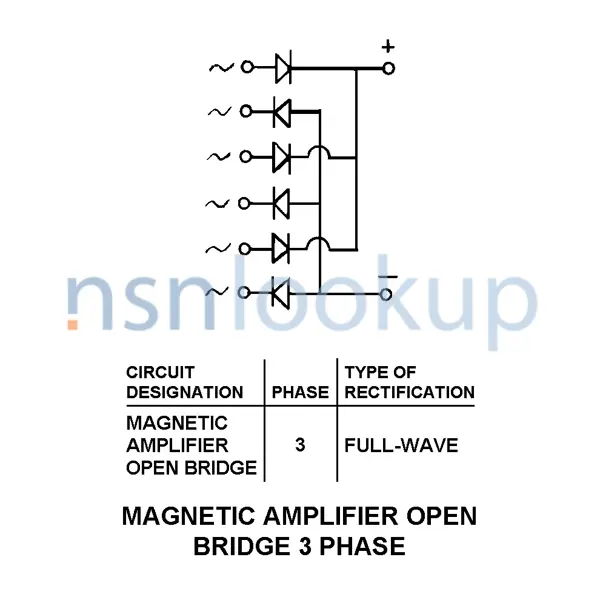

- Circuit Connection Style Designator [AJUR]
- Magnetic Amplifier Open Bridge 3 Phase
- Dc Output Maximum Voltage Rating [ASCY]
- 60.0 Volts New
- Environmental Protection [ADZC]
- Moisture
- Grounded Terminal [ASDS]
- Not Included
- Material [MATT]
- Selenium
- Mounting Configuration [ALGC]
- Four 7/32 In. By 1/2 In. Slots On 2 In. By 5.620 In. Mtg Centers
- Mounting Method [ADJH]
- Bracket
- Load Type [ASCX]
- Inductive And Capacitive
- Rms Input Maximum Voltage Rating [ASCT]
- 30.0 Volts
- Overall Height [ABKW]
- 4.260 Inches Nominal
- Overall Length [ABHP]
- 3.375 Inches Nominal
- Overall Width [ABMK]
- 6.000 Inches Nominal
- Stack Quantity [ASCZ]
- 1
- Temp Rating [ABJH]
- 35.0 Deg Celsius
- Terminal Quantity [AARA]
- 8
- Terminal Type [AARB]
- Bus Bar
Weapon Systems (WSDC) 6130-00-957-8661
DLA Procurement Analysis 6130-00-957-8661
- Last Stock Position:
- 2 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 6130-00-957-8661
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 6130-00-957-8661
Freight Information 6130-00-957-8661
6130-00-957-8661 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 062900. A Sub NMFC of X. It has a NMFC Description of RECTIFIERS NOI/BATTERY ELIMINATORS. 6130-00-957-8661 is rated as class 85 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 35110 which rates the freight between FCL and LCL. 6130-00-957-8661 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 72D for ocean manifesting and military sealift. 6130-00-957-8661 is not classified as a special type of cargo when transported by water. 6130-00-957-8661 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 6130-00-957-8661
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Electrical Instrument
- Over 10lb
- Less than 85G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- --
- --
- --
- ASTM - D5118, Fiberboard Box
- No special marking
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- See Method of Preservation
- --
Contracting Technical Data File (CTDF) 6130-00-957-8661 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- F
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
