6130-00-823-2367
Interrupter Vibrator
6130008232367 008232367 SCC34089
An electromechanical device which uses a coil operated switching mechanism to convert a direct current input into a pulsating direct current output of the same value. The direct current input is periodically interrupted at the resonant frequency of a coil driven vibrating armature (reed). The resultant pulsating direct current output produces an inherent alternating current component necessary for ultimate purposes of transformation. It does not include a means of amplification or rectification. For items designed to operate over a wide and comparatively high frequency range and whose drive coil may be excited from either an alternating current or a direct current, see CHOPPER, ELECTRONIC. View more Interrupter Vibrator
May 2023
4
Marketplace 6130-00-823-2367
Request a Quotation from participating marketplace vendors
Related Documents 6130-00-823-2367 1+ Documents (More...)
BUY NE FedMall Updated Every Day 6130-00-823-2367 RQST NE Updated Every Day 6130-00-823-2367 RQST
Updated Every Day 6130-00-823-2367 RQST NE Related Documents 6130-00-823-2367 1+ Documents ( More...
Restrictions 6130-00-823-2367
6130-00-823-2367 is a Interrupter Vibrator that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 6130-00-823-2367
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 6130-00-823-2367
- US Army (A918)
- Effective Date:
- 1 Sep 2006
- Former MOE Rule:
- A178
- Supplementary Receivers:
- CL
Approved Sources 6130-00-823-2367
- Part Number
- Manufacturer
- Status
- SCC34089
- Manufacturer
- 80063 - Us Army Communications & Electronics (Active)
- Primary Buy
- Primary Buy
Datasheet 6130-00-823-2367
- Characteristic
- Specifications
- FIIG
- Specifications
- T320-K
- Drive Voltage Relationship To Input Voltage [BGRB]
- Unequal
- Dwell Time Rating In Deg [BGRP]
- 150.0 Nominal

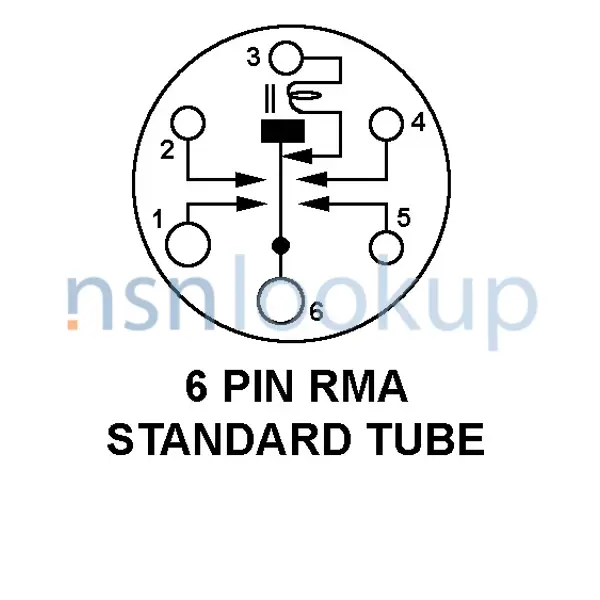

- Base Connection Wiring Style [BGRX]
- 6 Pin Standard Tube
- End Item Identification [AGAV]
- Type No. Pp-868/U
- Hermetically Sealed Feature [AXNN]
- Not Provided
- Output Frequency Rating [APTS]
- 89.3 Hertz Minimum And 100.0 Hertz Maximum
- Input Current Rating [AZSL]
- 2.4 Amperes Nominal
- Input Voltage Rating [APNX]
- 12.6 Dc Pounds Per Hour Wet
- Reed Type [BGRJ]
- Single
- Overall Diameter [ADAV]
- 1.500 Inches Nominal
- Overall Length [ABHP]
- 2.953 Inches Nominal
- Phase Angle In Deg [BGRN]
- 60.0
DLA Procurement Analysis 6130-00-823-2367
Management Data 6130-00-823-2367
Army
- Materiel Category and Inventory Manager:
- Q
- Electronics Materiel (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
NATO Stock Numbers Related to 6130-00-823-2367
Freight Information 6130-00-823-2367
6130-00-823-2367 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 061700. A Sub NMFC of Z. It has a NMFC Description of ELEC APPLIANCES/INSTRUMENTS NOI. 6130-00-823-2367 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 34580 which rates the freight between FCL and LCL. 6130-00-823-2367 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 72D for ocean manifesting and military sealift. 6130-00-823-2367 is not classified as a special type of cargo when transported by water. 6130-00-823-2367 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
