6130-00-735-2439
Interrupter Vibrator
6130007352439 007352439 28244VT
An electromechanical device which uses a coil operated switching mechanism to convert a direct current input into a pulsating direct current output of the same value. The direct current input is periodically interrupted at the resonant frequency of a coil driven vibrating armature (reed). The resultant pulsating direct current output produces an inherent alternating current component necessary for ultimate purposes of transformation. It does not include a means of amplification or rectification. For items designed to operate over a wide and comparatively high frequency range and whose drive coil may be excited from either an alternating current or a direct current, see CHOPPER, ELECTRONIC. View more Interrupter Vibrator
May 2023
4
Marketplace 6130-00-735-2439
Request a Quotation from participating marketplace vendors
Related Documents 6130-00-735-2439 5+ Documents (More...)
RQST NE Updated Every Day 6130-00-735-2439 RQST Updated Every Day 6130-00-735-2439 RQST NE Related Documents
6130-00-735-2439 5+ Documents ( More... ) https//www.nsnlookup.com /fsg-61/fsc-6130/us 6130-00-735-2439
fsc-6130/us 6130-00-735-2439 Interrupter Vibrator 6130007352439 007352439 Interrupter Vibrator 6130214180120214180120
21-418-0120 https//www.nsnlookup.com /fsg -235-0989 Interrupter Vibrator 6130002350989 002350989 007352439
007352439 002350989 418-0016 6130-00-643-0150 6130-00-735-2439 6130-21-418-0120 6130-14-275-7096 6130
002350989 418-0016 6130-00-643-0150 6130-00-735-2439 6130-21-418-0120 6130-14-275-7096 6130-00-284-0260
007352439 002350989 418-0016 6130-00-643-0150 6130-00-735-2439 6130-21-418-0120 6130-14-275-7096 6130
6130-21-418-0016 6130-00-643-0150 Interrupter Vibrator 6130006430150006430150 6130-14-275-7096 6130007352439
6130-21-418-0120 6130-14-275-7096 6130-00-284-0260 https//www.nsnlookup.com /fsg-61/fsc-6130/us 6130-00-735-2439
Interrupter Vibrator 6130007352439 007352439 www.nsnlookup.com /fsg-61/fsc-6130/us 6130-00-735-
Restrictions 6130-00-735-2439
6130-00-735-2439 is a Interrupter Vibrator that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 6130-00-735-2439
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 6130-00-735-2439
- National Security Agency (DGX1)
- Effective Date:
- 1 Feb 2005
- Former MOE Rule:
- DCX1
- Supplementary Receivers:
- CX
Approved Sources 6130-00-735-2439
- Part Number
- Manufacturer
- Status
- 28244VT
- Manufacturer
- 02998 - A T R Electronics Inc (Obsolete)
- Original Design
- Original Design
Datasheet 6130-00-735-2439
- Characteristic
- Specifications
- FIIG
- Specifications
- T320-K

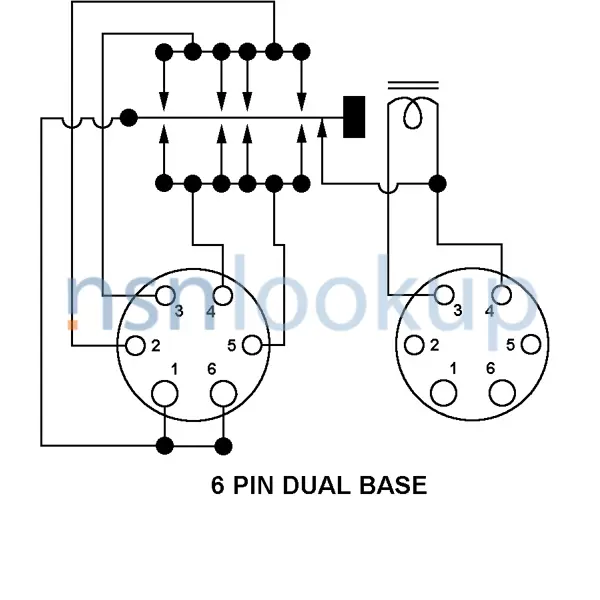

- Base Connection Wiring Style [BGRX]
- 6 Pin Dual Base
- Hermetically Sealed Feature [AXNN]
- Not Provided
- Output Frequency Rating [APTS]
- 58.0 Hertz Minimum And 61.9 Hertz Maximum
- Input Current Rating [AZSL]
- 9.5 Amperes Nominal
- Input Voltage Rating [APNX]
- 28.0 Dc Volts Nominal
- Reed Type [BGRJ]
- Dual
- Overall Height [ABKW]
- 4.500 Inches Nominal
- Overall Length [ABHP]
- 5.125 Inches Nominal
- Overall Width [ABMK]
- 2.375 Inches Nominal
DLA Procurement Analysis 6130-00-735-2439
Management Data 6130-00-735-2439
NATO Stock Numbers Related to 6130-00-735-2439
Freight Information 6130-00-735-2439
6130-00-735-2439 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 061700. A Sub NMFC of Z. It has a NMFC Description of ELEC APPLIANCES/INSTRUMENTS NOI. 6130-00-735-2439 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 34580 which rates the freight between FCL and LCL. 6130-00-735-2439 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 72D for ocean manifesting and military sealift. 6130-00-735-2439 is not classified as a special type of cargo when transported by water. 6130-00-735-2439 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Contracting Technical Data File (CTDF) 6130-00-735-2439 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- N
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Y
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
