6130-00-635-3519
Self-Rectifying Vibrator
6130006353519 006353519 MV2 T4003 48B893518
An electromechanical device which interrupts the direct current input by means of a coil-driven vibrating armature (reed) whose contacts alternately open and close the direct current circuit. It is equipped with a second set of contacts which operate in synchronism with the first set and are mounted on either the same or a separate (split) armature to rectify the stepped-up alternating current voltage obtained from an external transformer secondary to produce a pulsating direct current output. For items designed to operate over a wide and comparatively high frequency range and whose coil may be excited from either an alternating current or a direct current, see CHOPPER, ELECTRONIC. View more Self-Rectifying Vibrator
January 2023
12
Marketplace 6130-00-635-3519
Request a Quotation from participating marketplace vendors
Related Documents 6130-00-635-3519 5+ Documents (More...)
,MV2 6130-22-614- Self-Rectifying Vibrator 6130006353519,MV2 6130-22-614-9712 6130-99-073-0007 6130-00
,MV2 fsc-6130/us 6130-00-635-3519 Self-Rectifying Vibrator 6130006353519,MV2 1238 6130-00-635-3519 6130
https//www.nsnlookup.com /fsg-61/fsc-6130/us 6130-00-635-3519 Self-Rectifying Vibrator 6130006353519
,MV2 fsc-6130/us 6130-00-635-3519 Self-Rectifying Vibrator 6130006353519,MV2 1238 6130-00-635-3519 6130
/fsg-58/fsc-5841/de
Self-Rectifying Vibrator 6130006353519,MV2 614-9712 6130-99-073-0007 6130-00-500-0545 6130 https
5841-12-010-3931 https 6130-22-614-9712 6130-99-073-0007 6130-00-500-0545 6130 -14-449-1238 6130-00-635-3519
/fsg-61/fsc-6130/us
Self-Rectifying Vibrator 6130006353519,MV2 6130-00-500-0545 6130-14-449-1238 6130-00-635-3519 https
635-3867 6130-00-945-1967 6130-22-614-9712 6130-99-073-0007 6130-00-500-0545 6130-14-449-1238 6130-00-635-3519
/fsg-61/fsc-6130/us
Self-Rectifying Vibrator 6130006353519,MV2 61/fsc-6130/tr 6130-27-003-9680 Self-Rectifying Vibrator
6130270039680 Self-Rectifying Vibrator 6130005537530 www.nsnlookup.com /fsg-61/fsc-6130/us 6130-00-635-3519
Restrictions 6130-00-635-3519
6130-00-635-3519 is a Self-Rectifying Vibrator that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 6130-00-635-3519
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 6130-00-635-3519
- Brazil (YA01)
- Effective Date:
- 1 Oct 2001
Approved Sources 6130-00-635-3519
- Part Number
- Manufacturer
- Status
- MV2
- Manufacturer
- 76854 - Electro Switch Corp. (Active)
- Primary Buy
- Primary Buy
- T4003
- 37942 - Yosemite Investment Inc (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 48B893518
- 1VPW8 - General Dynamics Mission Systems, (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 48B893518
- 94990 - Motorola Inc. (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 6130-00-635-3519
- Characteristic
- Specifications
- FIIG
- Specifications
- T320-K
- Input Voltage Rating [APNX]
- 2.0 Dc Volts Nominal
- Input Current Rating [AZSL]
- 6.0 Amperes Nominal
- Drive Voltage Relationship To Input Voltage [BGRB]
- Unequal
- Output Frequency Rating [APTS]
- 115.0 Hertz Nominal
- Reed Type [BGRJ]
- Single
- Hermetically Sealed Feature [AXNN]
- Not Provided
- Overall Diameter [ADAV]
- 1.312 Inches Nominal
- Overall Length [ABHP]
- 2.125 Inches Nominal
- Plug In Mounting Feature [BGRS]
- Not Provided

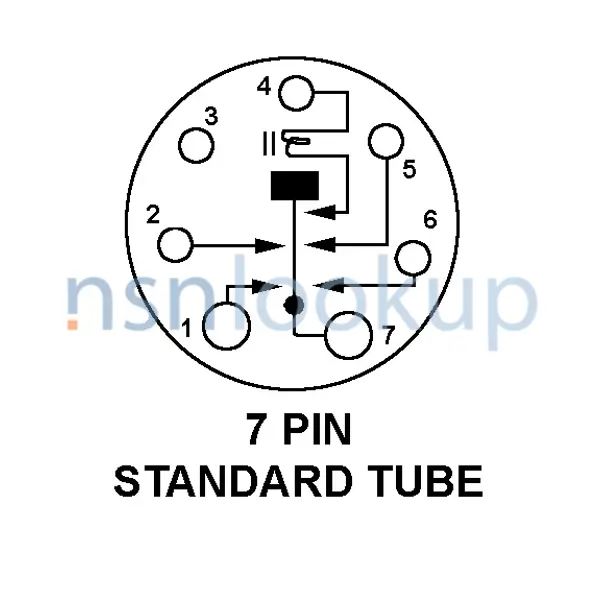

- Base Connection Wiring Style [BGRX]
- 7 Pin Standard Tube
NATO Stock Numbers Related to 6130-00-635-3519
Freight Information 6130-00-635-3519
6130-00-635-3519 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 062900. A Sub NMFC of X. It has a NMFC Description of RECTIFIERS NOI/BATTERY ELIMINATORS. 6130-00-635-3519 is rated as class 85 when transported by Less-Than Truckload (LTL) freight. 6130-00-635-3519 is rated as class 85 when transported by Less-Than Carload (LCL) rail or ocean freight. It has a Uniform Freight Classification (UFC) number of 35110 which rates the freight between FCL and LCL. 6130-00-635-3519 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 658 for ocean manifesting and military sealift. 6130-00-635-3519 is not classified as a special type of cargo when transported by water. 6130-00-635-3519 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
