6130-00-284-1147
Interrupter Vibrator
6130002841147 002841147 48-847730 48C847730 48C830082
An electromechanical device which uses a coil operated switching mechanism to convert a direct current input into a pulsating direct current output of the same value. The direct current input is periodically interrupted at the resonant frequency of a coil driven vibrating armature (reed). The resultant pulsating direct current output produces an inherent alternating current component necessary for ultimate purposes of transformation. It does not include a means of amplification or rectification. For items designed to operate over a wide and comparatively high frequency range and whose drive coil may be excited from either an alternating current or a direct current, see CHOPPER, ELECTRONIC. View more Interrupter Vibrator
May 2023
5
Marketplace 6130-00-284-1147
Request a Quotation from participating marketplace vendors
Related Documents 6130-00-284-1147 2+ Documents (More...)
BUY NE FedMall Updated Every Day 6130-00-284-1147 RQST NE Related Documents 6130-00-284-1147 2+
RQST NE Related Documents 6130-00-284-1147 2+ RQST NE Related Documents 6130-00-284-1147 2+ RQST
94990 - Motorola Inc. https//www.nsnlookup.com /fsg-61/fsc-6130/us 6130-00-284-1147 Interrupter Vibrator
6130002841147 002841147 a day Upgrade your Account Upgrade 6130-00-284-1147Interrupter Vibrator6130002841147
Restrictions 6130-00-284-1147
6130-00-284-1147 is a Interrupter Vibrator that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is a US Munitions List or Commerce Control List Item which must be destroyed to prevent restoration or repair. Only authorized parties may possess this item. This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 6130-00-284-1147
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 6130-00-284-1147
- US Navy (N9BG)
- Effective Date:
- 1 Feb 2005
- Former MOE Rule:
- N9GD
- Supplementary Collaborators:
- HD
Approved Sources 6130-00-284-1147
- Part Number
- Manufacturer
- Status
- 48C830082
- Manufacturer
- 1VPW8 - General Dynamics Mission Systems, (Active)
- Primary Buy
- Primary Buy
- 48C830082
- 94990 - Motorola Inc. (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- 48-847730
- 94990 - Motorola Inc. (Replaced)
- Advisory Reference
- Advisory Reference
- 48C847730
- 94990 - Motorola Inc. (Replaced)
- Advisory Reference
- Advisory Reference
Datasheet 6130-00-284-1147
- Characteristic
- Specifications
- FIIG
- Specifications
- T320-K
- Drive Voltage Rating [BGRC]
- 6.0 Dc Pounds Per Hour Wet
- Drive Voltage Relationship To Input Voltage [BGRB]
- Unequal

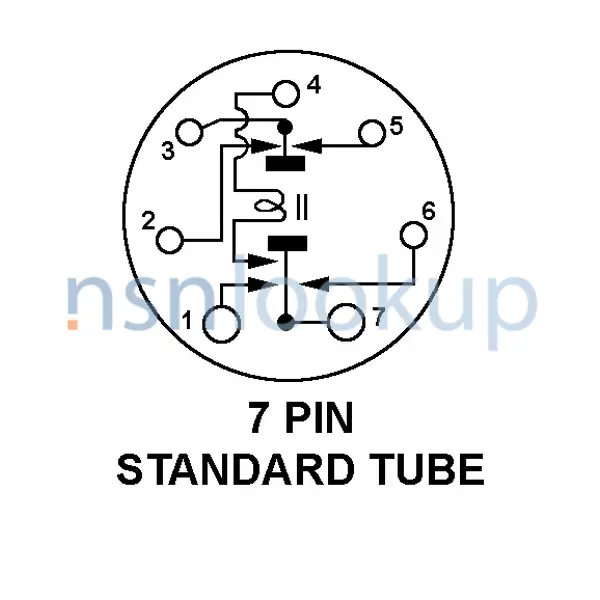

- Base Connection Wiring Style [BGRX]
- 7 Pin Standard Tube
- End Item Identification [AGAV]
- Type An/Vrc-27
- Hermetically Sealed Feature [AXNN]
- Not Provided
- Output Frequency Rating [APTS]
- 95.0 Hertz Minimum And 105.0 Hertz Maximum
- Input Current Rating [AZSL]
- 24.0 Amperes Nominal
- Input Voltage Rating [APNX]
- 5.8 Dc Pounds Per Hour Wet
- Reed Type [BGRJ]
- Dual
- Overall Diameter [ADAV]
- 1.469 Inches Minimum And 1.531 Inches Maximum
- Overall Height [ABKW]
- 2.876 Inches Minimum And 3.000 Inches Maximum
DLA Procurement Analysis 6130-00-284-1147
Management Data 6130-00-284-1147
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
NATO Stock Numbers Related to 6130-00-284-1147
Freight Information 6130-00-284-1147
6130-00-284-1147 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 061700. A Sub NMFC of Z. It has a NMFC Description of ELEC APPLIANCES/INSTRUMENTS NOI. 6130-00-284-1147 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 34580 which rates the freight between FCL and LCL. 6130-00-284-1147 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 658 for ocean manifesting and military sealift. 6130-00-284-1147 is not classified as a special type of cargo when transported by water. 6130-00-284-1147 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
