6130-00-254-5159
Interrupter Vibrator
6130002545159 002545159 VN93C 121-5009P2
An electromechanical device which uses a coil operated switching mechanism to convert a direct current input into a pulsating direct current output of the same value. The direct current input is periodically interrupted at the resonant frequency of a coil driven vibrating armature (reed). The resultant pulsating direct current output produces an inherent alternating current component necessary for ultimate purposes of transformation. It does not include a means of amplification or rectification. For items designed to operate over a wide and comparatively high frequency range and whose drive coil may be excited from either an alternating current or a direct current, see CHOPPER, ELECTRONIC. View more Interrupter Vibrator
January 2023
19
Marketplace 6130-00-254-5159
Request a Quotation from participating marketplace vendors
Related Documents 6130-00-254-5159 1+ Documents (More...)
6130-00-254-5159 1+ Documents ( More... ) https//www.nsnlookup.com /fsg-61/fsc-6130/us 6130-00-254-5159
RQST Updated Every Day 6130-00-254-5159 RQST NE Related Documents 6130-00-254-5159 1+ Documents
Restrictions 6130-00-254-5159
6130-00-254-5159 is a Interrupter Vibrator that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is a US Munitions List Item and must be mutilated to scrap. This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 6130-00-254-5159
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 6130-00-254-5159
- Brazil (YA01)
- Effective Date:
- 1 Jan 2002
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- Italy (ZR01)
- Effective Date:
- 1 Jul 1997
- Turkey (ZW01)
- Effective Date:
- 1 Nov 1998
Approved Sources 6130-00-254-5159
- Part Number
- Manufacturer
- Status
- 121-5009P2
- Manufacturer
- 94144 - Raytheon Company (Active)
- Primary Buy
- Primary Buy
- 121-5009P2
- 3B150 - Raytheon Company (Active)
- Secondary Buy
- Secondary Buy
- 121-5009P2
- 49956 - Raytheon Company (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- VN93C
- 14655 - Cornell-Dubilier Electronics (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- VN93C
- 00853 - Cornell-Dubilier Marketing Inc (Active)
- Advisory Reference
- Advisory Reference
Datasheet 6130-00-254-5159
- Characteristic
- Specifications
- FIIG
- Specifications
- T320-K
- Drive Voltage Relationship To Input Voltage [BGRB]
- Unequal

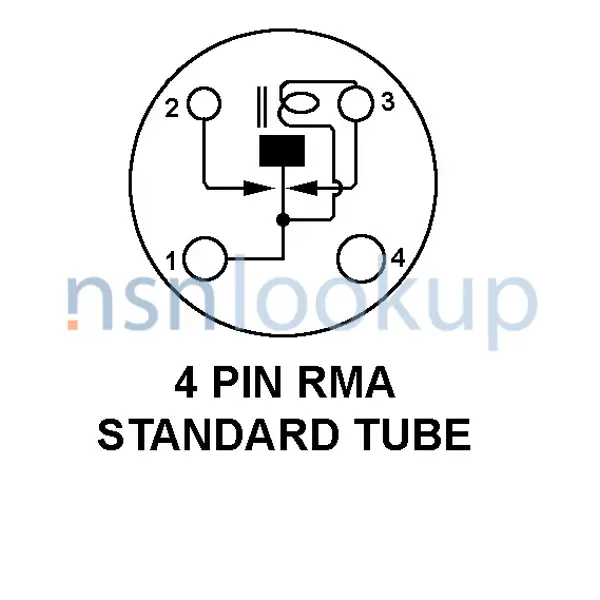

- Base Connection Wiring Style [BGRX]
- 4 Pin Standard Tube
- Hermetically Sealed Feature [AXNN]
- Provided
- Output Frequency Rating [APTS]
- 115.0 Hertz Minimum And 128.9 Hertz Maximum
- Input Current Rating [AZSL]
- 10.0 Amperes Nominal
- Input Voltage Rating [APNX]
- 6.3 Dc Pounds Per Hour Wet
- Reed Type [BGRJ]
- Single
- Overall Diameter [ADAV]
- 1.500 Inches Nominal
- Overall Length [ABHP]
- 3.125 Inches Nominal
NATO Stock Numbers Related to 6130-00-254-5159
Freight Information 6130-00-254-5159
6130-00-254-5159 has freight characteristics.. 6130-00-254-5159 has a variance between NMFC and UFC when transported by rail and the description should be consulted.
