6130-00-241-6697
Interrupter Vibrator
6130002416697 002416697 271-1563VB11 SCA12560D VB11 VB11A VB11ANDVB11A 48B60392 48B61279 48B61279-24V M682
An electromechanical device which uses a coil operated switching mechanism to convert a direct current input into a pulsating direct current output of the same value. The direct current input is periodically interrupted at the resonant frequency of a coil driven vibrating armature (reed). The resultant pulsating direct current output produces an inherent alternating current component necessary for ultimate purposes of transformation. It does not include a means of amplification or rectification. For items designed to operate over a wide and comparatively high frequency range and whose drive coil may be excited from either an alternating current or a direct current, see CHOPPER, ELECTRONIC. View more Interrupter Vibrator
November 2023
19
Marketplace 6130-00-241-6697
Request a Quotation from participating marketplace vendors
Related Documents 6130-00-241-6697 5+ Documents (More...)
6130-00-241-6697 5+ Documents ( More... ) https//www.nsnlookup.com /fsg-61/fsc-6130/us 6130-00-241-6697
5+ Documents ( More... ) https//www.nsnlookup.com /fsg-61/fsc-6130/us 6130-00-241-6697 6130-00-
https//www.nsnlookup.com /fsg-75/fsc-7510/us 7510-01-305-9605 Loose-Leaf Binder 7510013059605013059605 VB11
www.nsnlookup.com /fsg-75/fsc-7510/us 7510-01-305-9605 https//www.nsnlookup.com /fsg-61/fsc-6130/us 6130-00-241-6697
www.nsnlookup.com /fsg-75/fsc-7510/us 7510-01-107-7574 https//www.nsnlookup.com /fsg-61/fsc-6130/us 6130-00-241-6697
Interrupter Vibrator 6130002416697 002416697 www.nsnlookup.com /fsg-61/fsc-6130/us 6130-00-241-
www.nsnlookup.com /fsg-75/fsc-7510/us 7510-01-348-3000 https//www.nsnlookup.com /fsg-61/fsc-6130/us 6130-00-241-6697
Interrupter Vibrator 6130002416697 002416697 -241-6697 5+ Documents https//www.nsnlookup.com https
https//www.nsnlookup.com /fsg-75/fsc-7510/us 7510-01-283-5273 Loose-Leaf Binder 7510012835273012835273 VB11
Subscribe to View Vendor Details... 7510-01-283-5273 https//www.nsnlookup.com /fsg-61/fsc-6130/us 6130-00-241-6697
Restrictions 6130-00-241-6697
6130-00-241-6697 is a Interrupter Vibrator that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 6130-00-241-6697
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 6130-00-241-6697
- Spain (YB01)
- Effective Date:
- 1 Feb 2004
- Thailand (YY01)
- Effective Date:
- 1 Feb 2015
- Republic of Korea (ZH01)
- Effective Date:
- 1 Aug 1995
- Greece (ZU01)
- Effective Date:
- 1 Apr 1991
Approved Sources 6130-00-241-6697
- Part Number
- Manufacturer
- Status
- 271-1563VB11
- Manufacturer
- 80063 - Us Army Communications & Electronics (Active)
- Primary Buy
- Primary Buy
- SCA12560D
- 80063 - Us Army Communications & Electronics (Active)
- Primary Buy
- Primary Buy
- VB11
- 80063 - Us Army Communications & Electronics (Active)
- Primary Buy
- Primary Buy
- VB11A
- 80063 - Us Army Communications & Electronics (Active)
- Primary Buy
- Primary Buy
- VB11ANDVB11A
- 80063 - Us Army Communications & Electronics (Active)
- Primary Buy
- Primary Buy
- 48B60392
- 1VPW8 - General Dynamics Mission Systems, (Active)
- Primary Buy
- Primary Buy
- 48B61279
- 1VPW8 - General Dynamics Mission Systems, (Active)
- Primary Buy
- Primary Buy
- 48B61279-24V
- 1VPW8 - General Dynamics Mission Systems, (Active)
- Primary Buy
- Primary Buy
- 48B61279
- 94990 - Motorola Inc. (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- 48B61279-24V
- 94990 - Motorola Inc. (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- 48B60392
- 94990 - Motorola Inc. (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- M682
- 37942 - Yosemite Investment Inc (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 6130-00-241-6697
- Characteristic
- Specifications
- FIIG
- Specifications
- T320-K
- Drive Voltage Relationship To Input Voltage [BGRB]
- Unequal

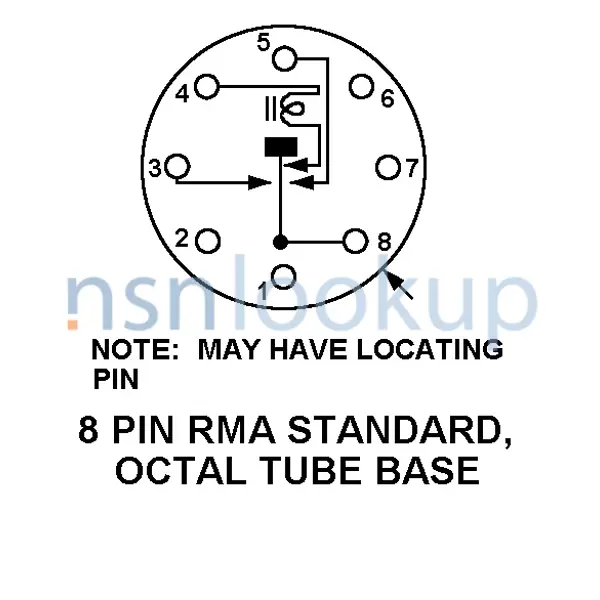

- Base Connection Wiring Style [BGRX]
- 8 Pin Standard Octal Tube
- End Item Identification [AGAV]
- Type No. Pe-120
- Hermetically Sealed Feature [AXNN]
- Provided
- Output Frequency Rating [APTS]
- 115.0 Hertz Nominal
- Input Voltage Rating [APNX]
- 24.0 Dc Pounds Per Hour Wet
- Reed Type [BGRJ]
- Single
- Overall Diameter [ADAV]
- 1.500 Inches Nominal
- Overall Height [ABKW]
- 2.875 Inches Nominal
- Special Features [FEAT]
- Moisture And Fungus Treated
NATO Stock Numbers Related to 6130-00-241-6697
Freight Information 6130-00-241-6697
6130-00-241-6697 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 061300. A Sub NMFC of X. It has a NMFC Description of CIRCUIT BREAKER/SWITCH NOI. 6130-00-241-6697 is rated as class 77.5 when transported by Less-Than Truckload (LTL) freight. 6130-00-241-6697 is rated as a variable freight class when transported by Less-Than Carload (LCL) rail or ocean freight. It has a Uniform Freight Classification (UFC) number of 34410 which rates the freight between FCL and LCL. 6130-00-241-6697 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 658 for ocean manifesting and military sealift. 6130-00-241-6697 is not classified as a special type of cargo when transported by water. 6130-00-241-6697 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
