6130-00-235-0998
Self-Rectifying Vibrator
6130002350998 002350998 AA1642 AA1833A 146B
An electromechanical device which interrupts the direct current input by means of a coil-driven vibrating armature (reed) whose contacts alternately open and close the direct current circuit. It is equipped with a second set of contacts which operate in synchronism with the first set and are mounted on either the same or a separate (split) armature to rectify the stepped-up alternating current voltage obtained from an external transformer secondary to produce a pulsating direct current output. For items designed to operate over a wide and comparatively high frequency range and whose coil may be excited from either an alternating current or a direct current, see CHOPPER, ELECTRONIC. View more Self-Rectifying Vibrator
January 2023
18
Marketplace 6130-00-235-0998
Request a Quotation from participating marketplace vendors
Related Documents 6130-00-235-0998 5+ Documents (More...)
/fsg-61/fsc-6130/us
Every Day 6130-00-235-0998 RQST Updated Every Day 6130-00-235-0998 RQST NE Related Documents 6130-00
Self-Rectifying Vibrator 6130002350998 6625991123721991123721,V5539-146B in your web browser . https
https//www.nsnlookup.com /fsg-66/fsc-6625/uk 6625-99-112-3721 Ammeter 6625991123721991123721,V5539-146B
Self-Rectifying Vibrator 6130002350998 6625991123721991123721,V5539-146B in your web browser .
https//www.nsnlookup.com /fsg-61/fsc-6130/us 6130-00-235-0998 Self-Rectifying Vibrator 6130002350998
your Account Upgrade 6130-00-235-0998Self-Rectifying Vibrator6130002350998 002350998 AA1642 AA1833A
JavaScript in your web browser . 7310-14-284-6204Garniture Registre7310142846204 142846204FAVSCR38-146B
Self-Rectifying Vibrator 6130002350998 6625991123721991123721,V5539-146B in your web 146B https
ca 7330-21-802-1787 Insulated Jug 7330218021787 218021787,180 Ammeter 6625991123721991123721,V5539-146B
-6605/dk 6605-22-290-1362 Navigation Computer 6605222901362 222901362 6625991123721991123721,V5539-146B
Restrictions 6130-00-235-0998
6130-00-235-0998 is a Self-Rectifying Vibrator that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 6130-00-235-0998
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 6130-00-235-0998
- Austria (WB01)
- Effective Date:
- 1 Feb 2005
- Denmark (ZS01)
- Effective Date:
- 1 Apr 1991
- Greece (ZU01)
- Effective Date:
- 1 Apr 1991
- Turkey (ZW01)
- Effective Date:
- 1 Oct 2009
Approved Sources 6130-00-235-0998
- Part Number
- Manufacturer
- Status
- AA1833A
- Manufacturer
- 14655 - Cornell-Dubilier Electronics (Replaced)
- Original Design
- Original Design
- 146B
- 02998 - A T R Electronics Inc (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- AA1642
- 14655 - Cornell-Dubilier Electronics (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- AA1642
- 00853 - Cornell-Dubilier Marketing Inc (Active)
- Advisory Reference
- Advisory Reference
- AA1833A
- 00853 - Cornell-Dubilier Marketing Inc (Active)
- Advisory Reference
- Advisory Reference
Datasheet 6130-00-235-0998
- Characteristic
- Specifications
- FIIG
- Specifications
- T320-K
- Drive Voltage Rating [BGRC]
- 4.0 Dc Volts Minimum And 8.0 Dc Volts Maximum
- Drive Voltage Relationship To Input Voltage [BGRB]
- Unequal

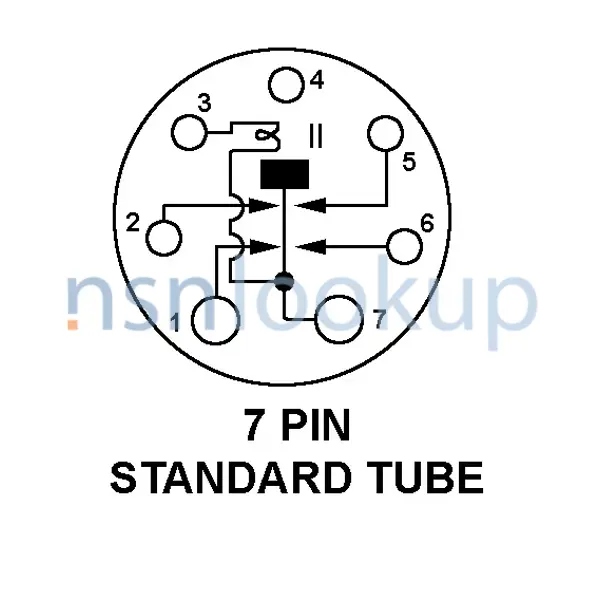

- Base Connection Wiring Style [BGRX]
- 7 Pin Standard Tube
- End Item Identification [AGAV]
- Pp-114/Vrc-3
- Hermetically Sealed Feature [AXNN]
- Provided
- Output Frequency Rating [APTS]
- 180.0 Hertz Nominal
- Input Current Rating [AZSL]
- 6.5 Amperes Nominal
- Input Voltage Rating [APNX]
- 6.0 Dc Volts Nominal
- Plug In Mounting Feature [BGRS]
- Not Provided
- Reed Type [BGRJ]
- Single
- Overall Diameter [ADAV]
- 1.500 Inches Nominal
- Overall Length [ABHP]
- 3.250 Inches Nominal
NATO Stock Numbers Related to 6130-00-235-0998
Freight Information 6130-00-235-0998
6130-00-235-0998 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 062900. A Sub NMFC of X. It has a NMFC Description of RECTIFIERS NOI/BATTERY ELIMINATORS. 6130-00-235-0998 is rated as class 85 when transported by Less-Than Truckload (LTL) freight. 6130-00-235-0998 is rated as class 85 when transported by Less-Than Carload (LCL) rail or ocean freight. It has a Uniform Freight Classification (UFC) number of 35110 which rates the freight between FCL and LCL. 6130-00-235-0998 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 658 for ocean manifesting and military sealift. 6130-00-235-0998 is not classified as a special type of cargo when transported by water. 6130-00-235-0998 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
